  • Manufacturer: ELM Video Technology
  • Name: DMX 0 to 10 Volt Analog Converter Switch Relay Driver
  • Description: The DX10V converts a DMX-512 input to a variable 0 to 10 volt analog output.
  • MPN: DX10V-4-DC3P
  • Price: $249
  • Condition: New
  • Model: DX10V
  • UPC: 0616453087996
  • CHASSIS: Anodized Aluminum .093" thick RoHS compliant
  • Internal Fuse: SMT 750mA
  • Power Input: +12VDC apx 400mA (values apx, some circuits may vary)
  •     4 Channel:   no load:64mA   full load 145mA
  •     8 Channel:   no load 70mA   full load 230mA
  •     12 Channel: no load 76mA   full load 316mA
  •     16 Channel: no load 82mA   full load 402mA
  • Voltage Output: 0~10VDC, (500 ohm minimum load)
  • Source Output Current: 20mA Max each
  • Sink Output Current: 10mA Max each
  • DATA TYPE: DMX (250Khz)
  • Data Input: 5 (or 3) pin female XLR, [Pin 1 Not connected, Pin 2Data -, Pin 3 Data +]
  • Data Loop Output: (If equipped) 5 (or 3) pin female XLR, [Pin 1 Looped from pin 1 of input XLR, Pin 2Data -, Pin 3 Data +]
  • Dimensions: 3.7 x 6.7 x 2.1 inches
  • Weight: 1.5 pounds
  • Operating temperature: 32°F to 100°F
  • Storage temperature: 0°F to 120°F
  • Humidity: Noncondensing
  • Refresh Rate Per Second: 4 Ch's = 1162, 8 Ch's = 571, 12 Ch's = 384, 16 Ch's = 285 (amount of times per second the outputs are updated)
  • Output Connections: DB9 Female
  • External Power Supply: +12VDC wall mount
  •     Voltage Input: 100 ~ 132 (or 240) VAC
  •     Current Output (Min): 1 Amps
  •     Power (Min): 12 Watts
  •     Polarization: Positive Center
  •     Output Connector: Locking Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm



    • Equipped with 3 pin XLR connectors, optional 5 pin XLR's option available
    • Equipped with a single DMX input, optionally add a loop thru with 3 or 5 XLR connectors (terminate if unused)
    • Equipped with 4 outputs, add 8, 12, or 16 outputs
    • Equipped with Inline DB9 connector solder style, optional solderless screw terminal connector

    • Mounting flanges - allows the unit to be counter top, under counter, or wall mounted

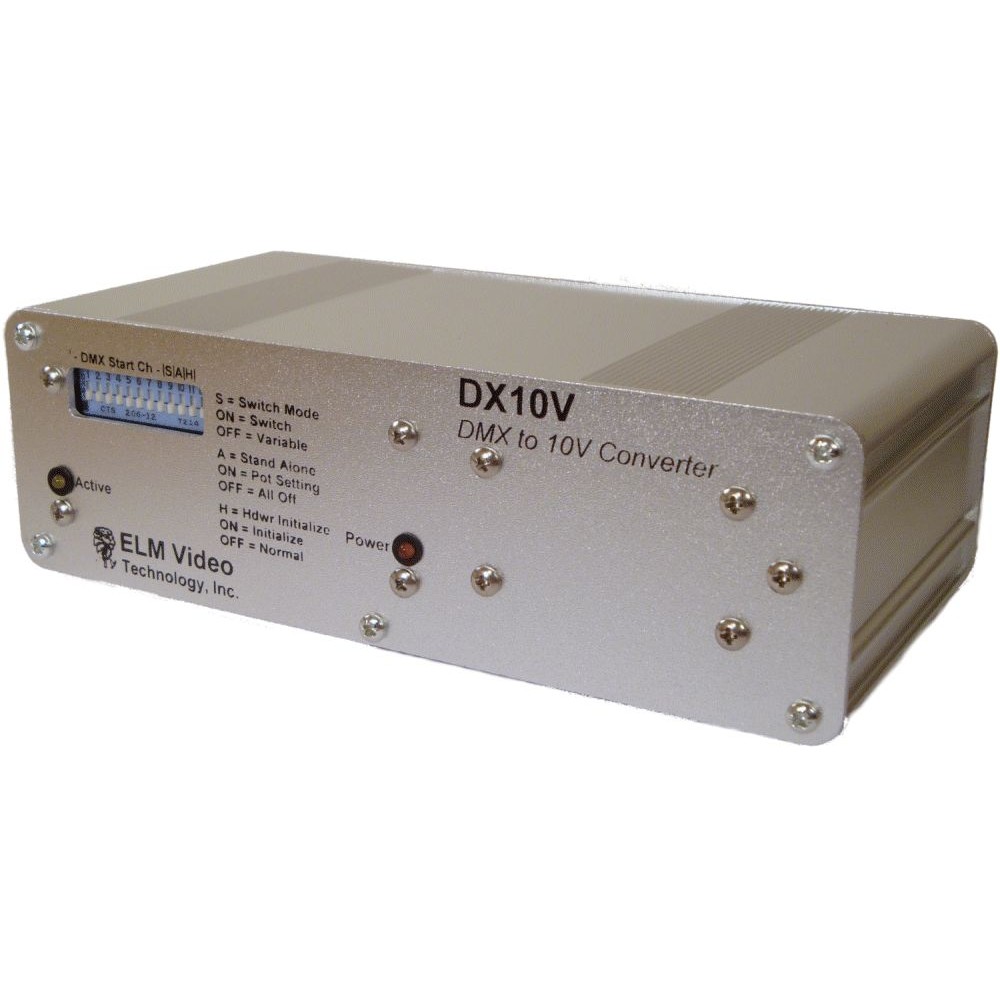

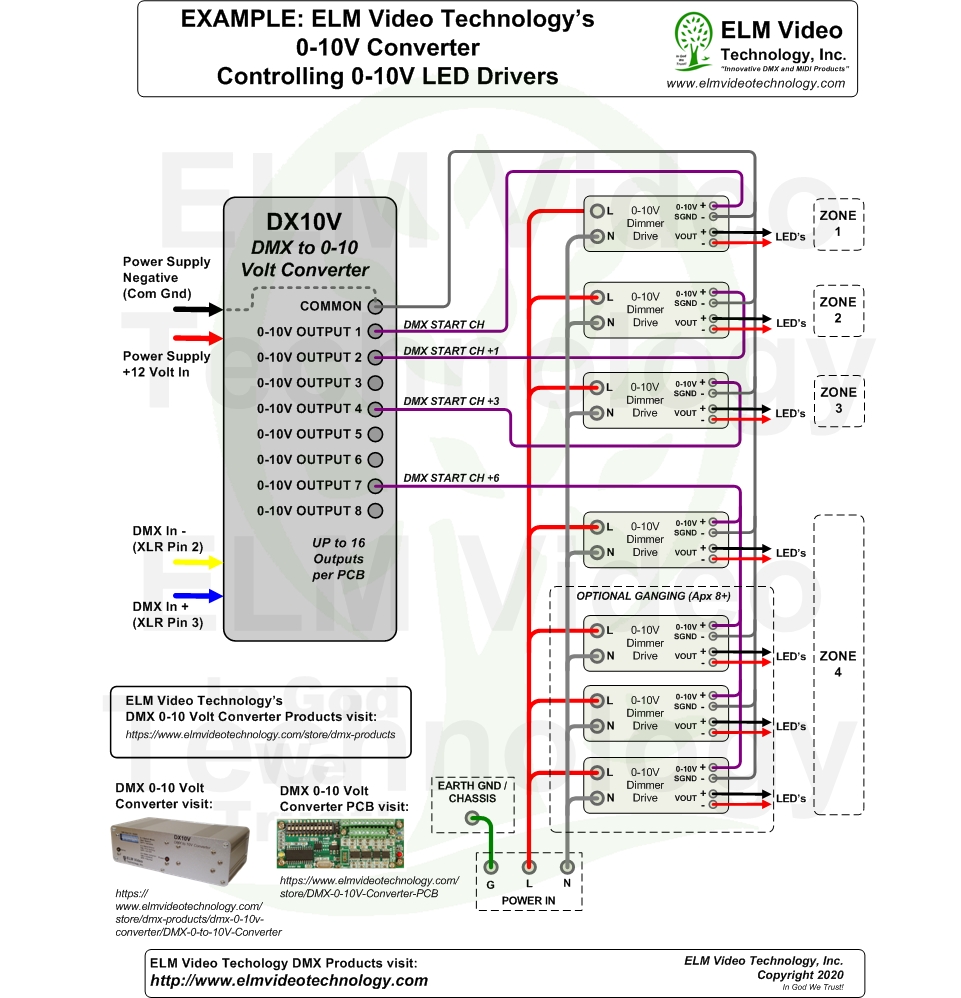

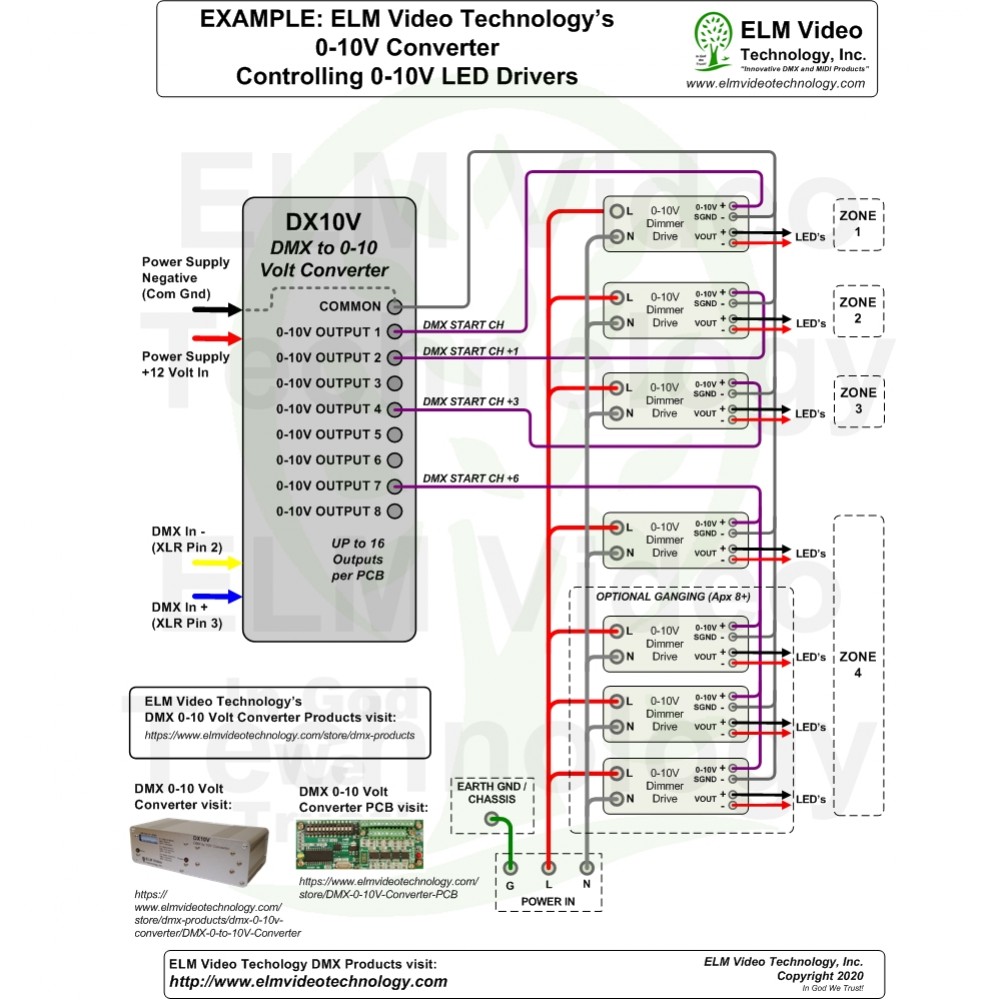

    The DX10V converts/decodes a DMX-512 input to a variable 0 to 10 volt analog output. Control 0-10 volt LED drivers or dimmers, for example, from a DMX lighting board or DMX controller. Also has a 'switch' option for controlling solid state relay's (SSR). Each output can source up to 20mA and sink up to 10mA. Each output is assigned to a consecutive DMX channel and will vary from 0 to 10 volts in respect to the corresponding DMX channels' level. Standard unit has 8 channels, available with 12 or 16 channels. Includes power supply. See the DX10V 0-10 volt full description category page for more information.
