DPM-RL PCB CONNECTIONS

DPM-RL DRILL TEMPLATE AND WIRING DIAGRAM

DPM-RL PCB ASSEMBLY OPTIONS AND EXAMPLES

DPM4-RL INSTALLATION ADDENDUM

DPM4-RL LABEL

DMX512 CHANNEL ASSIGNMENT TABLE

Software Revisions:

V2.04: Release Aug 2018 - Error correction: DMX lose timed out prematurely, increased time to 1 second

V2.03: Release June 2017 - Increased PWM frequency to 240hz

• NOTE: The 120VAC equipped version of this unit is not UL listed or certified, power supplies are either UL Listed and/or CE certified. Some units are available with 5 volt inputs and use a wall style power supply, if this option is required/desired please contact sales.
• Recommended External FUSE: 10 Amp (5 X 20 mm)
• FUSE for Control PCB: 500mA (5 X 20 mm)
• PCB FUSE for Coil/Mechanical: 5 Amp x 2 (5 X 20 mm)

• PCB FUSE for SSR (Solid State Relay): 2 Amp x 2 (5 X 20 mm)
• UL Listings: PCB pre populated, relay certifications: vary - contact us

• DATA TYPE: DMX (250Khz)

• DATA INPUT: DMX - Pin 1 - (Shield) Not connected, Pin 2 Data - , Pin 3 Data +
• Dimensions: 1.3 x 3.4 x 1 inches

• Weight: apx 2 oz

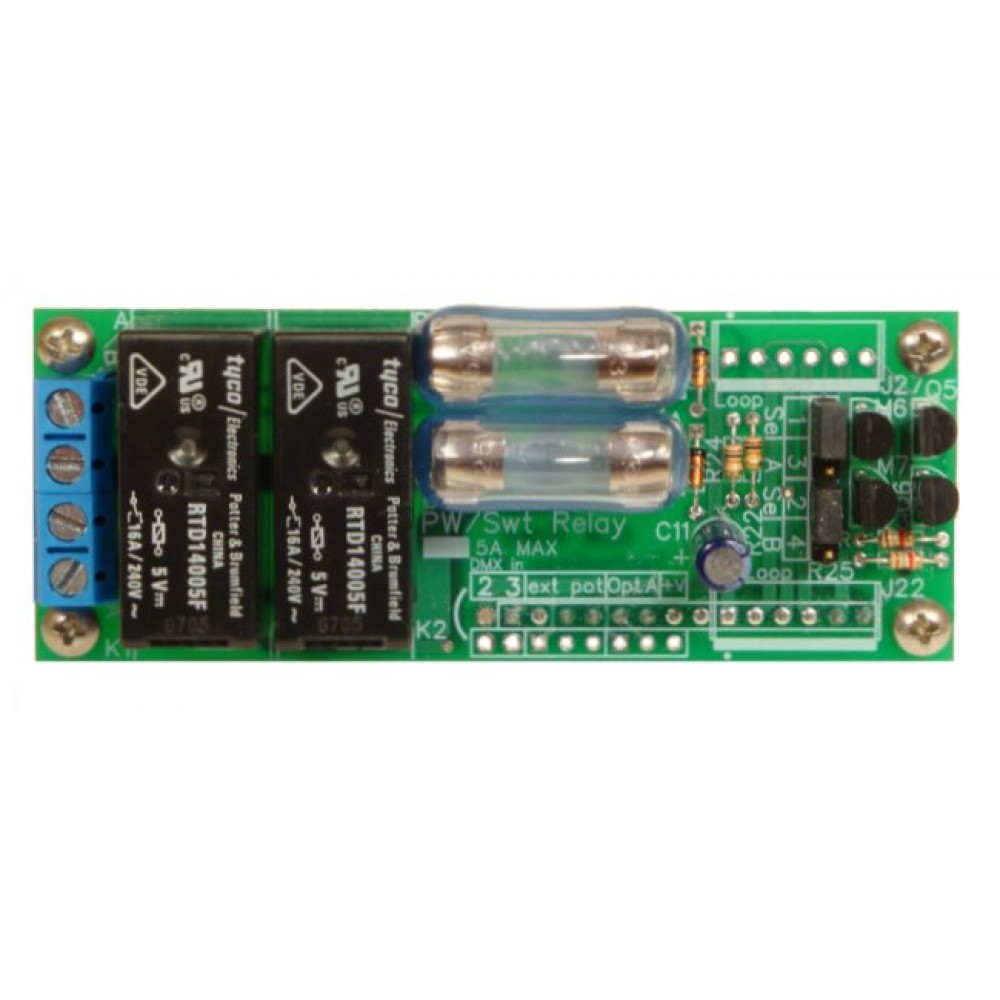

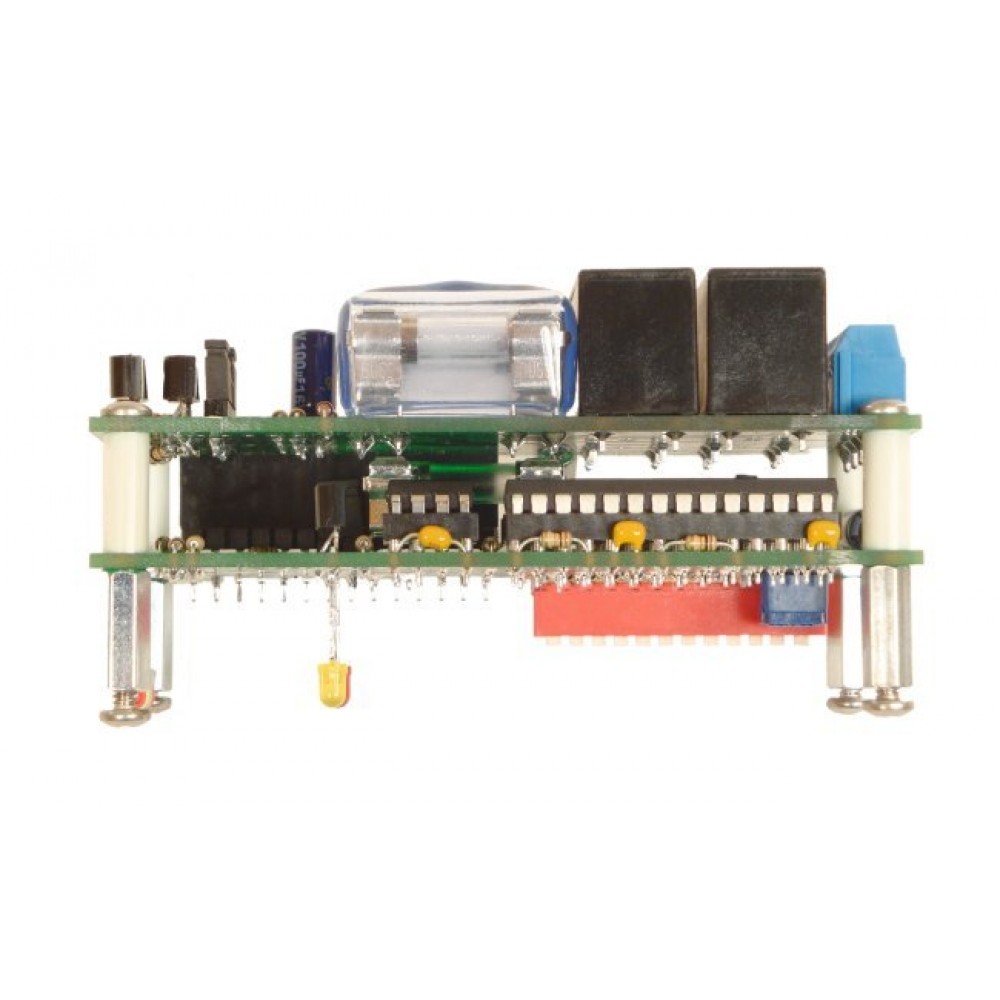

• SIDE BY SIDE or STACK layout options. With the side by side layout all of the PCBs are top accessible (i.e. the dip switches and LED's are top mounted on the PCB) and ideal for 'inside' enclosure access. With the stack layout the PCB takes up less width space and the dip switches and LED's are accessible from the bottom only and outside the enclosure. With this option the enclosure requires LED holes and a rectangular dip switch hole. See the DPMRL drill template for more information.
• Add additional dual relay PCB for a total of 4 relays
• Screw Terminals (Installed)
• 6 Inch Wire Leads (Installed

• Power Connector (Mates with listed power supply)
• 5V Power Supply
• LED mounting style, top mounted if the unit will be installed with access to the top of the PCB, bottom if the enclosure will have external LED accessibility, and uninstalled if unsure of the mounting style or the LEDs will be extended to the front panel.
• Enclosure Labels: black on white, black on clear, or download ENCLOSURE LABEL

• FACTORY PRESET DMX ON/OFF THRESHOLDS:

  • If the "DMX ON/OFF Threshold 50%" is selected the relay will turn on at 51% (DMX level 131), and the relay will turn off at 49% (DMX level 126).
  • If the "DMX ON/OFF Threshold 7%" is selected the relay will turn on at 8% (DMX level 20), and the relay will turn off at 5% (DMX level 13).
  • CUSTOM on/off settings are possible and factory set, contact us for more information.
