DMX PWM Driver

Software Revisions:

V2.04: Release Aug 2018 - Error correction: DMX lose timed out prematurely, increased time to 1 second

V2.03: Release June 2017 - Increased PWM frequency to 240hz

DMX CONTROL WARNING: NEVER use DMX data devices where human safety must be maintained.
NEVER use DMX data devices for pyrotechnics or similar controls.
Manufacturer: ELM Video Technology
MPN: DPM-PWM4
Model: DPM4
UL Listings: Power Supply
PWM Frequency: 240hz
Operating temperature: 32°F to 100°F
Storage temperature: 0°F to 120°F
Humidity: Noncondensing
Chassis: Anodized Aluminum .093" thick RoHS compliant
DMX Data: 250 kHz
Current Rating: 500mA per circuit output

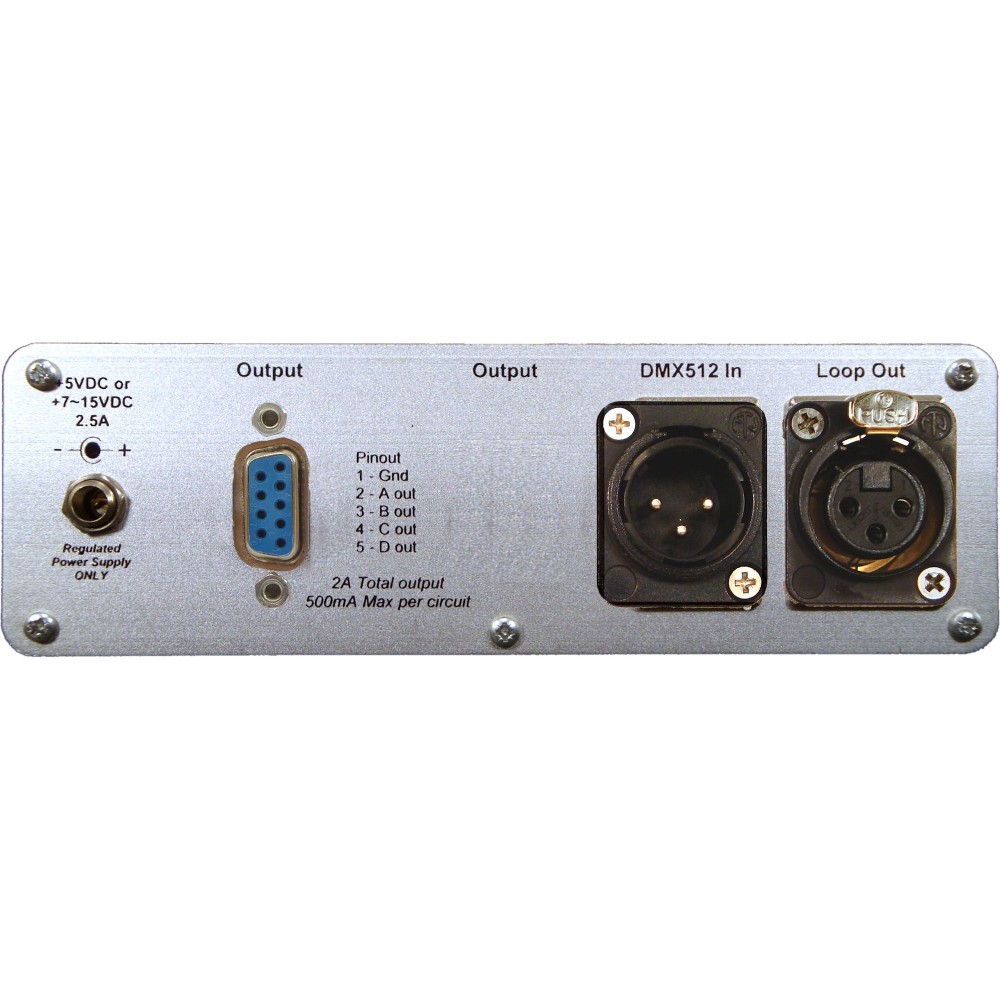

Data Loop Output (if equipped): DMX, (5 and/or 3 pin) female XLR [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +]
Data Input: DMX512 output 250 kHz, (5 and/or 3 pin) male XLR [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +]
Dimensions: 3.7 x 6.7 x 2.1 inches
Weight: 1.5 pounds
Internal FUSE: 5x20mm - 500mA
External Power Supply: +7 to +15VDC wall mount
Voltage Input: 100 ~ 132 (or 240) VAC
Current Output: 1A typical
Power: 5 Watts typical
Polarization: Positive Center
Output Connector: Locking Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm

Choose power supply voltage from +7 - +15VDC, also sets the PWM or switch output voltage supply
8 bit 4 channel OR 16 bit 2 channel
3 or 5 pin XLR or Ethercon connectors - 1, 2, or 3 Universes per EtherCon (See: EtherCon Pinouts)
Mounting flanges - allows the unit to be counter top, under counter, or wall mounted

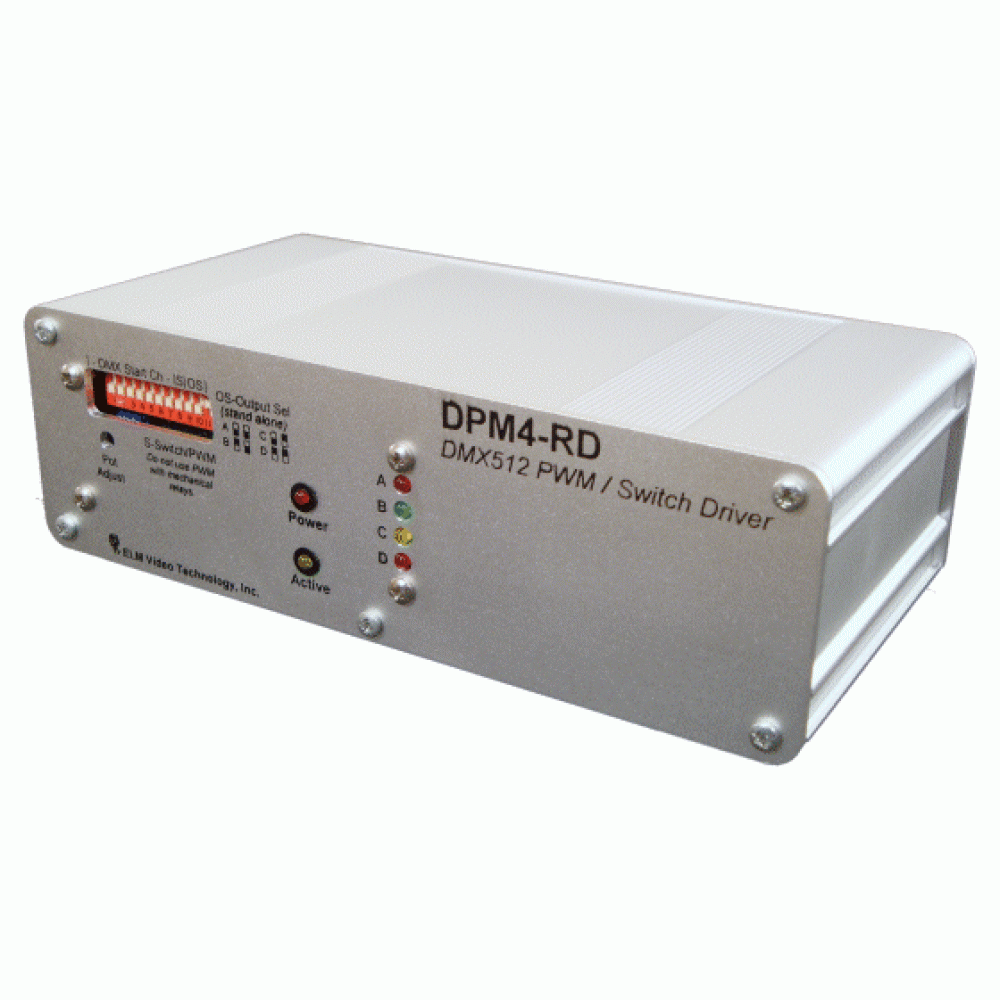

The DPM is a 4 channel 8 bit OR 2 channel 16 bit PWM driver in an aluminum enclosure. Useful for driving LED's directly or could be used to control solid state relays (SSR). Mating 5 pin connectors included. See the PWM Switch Driver category page for more information.

NOTE - Two outputs provide easy signal splitting, these connectors are internally looped, the unit total output is 500mA per circuit.

FEATURES INCLUDE:

Field Serviceable: Standard 5 x 20mm Fuse and Socketed chips (IC's) for easy replacement
HIGH QUALITY sockets:milled with GOLD contacts
Engineered with quality parts and a reliable and simple design
Compact Rugged Aluminum Chassis
Quality XLR Connectors (5 and 3 pin interchangeable for custom configurations)
'Active' LED illuminates indicating DMX signal is present, Power LED for 5VDC
(4) Channel output LED indicators
Customizable voltage outputs

FEATURES INCLUDE:

DMX PWM Driver
