• DMX CONTROL WARNING: NEVER use DMX data devices where human safety must be maintained.

• NEVER use DMX data devices for pyrotechnics or similar controls.

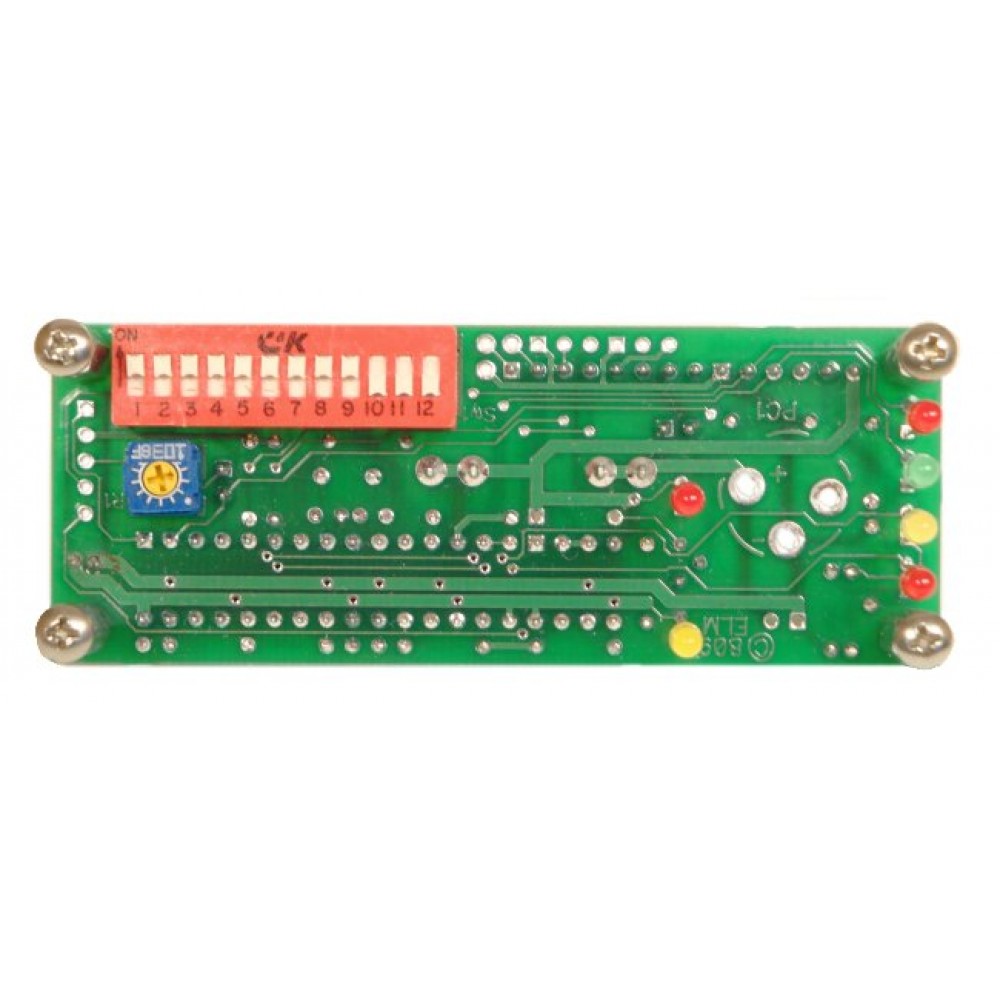

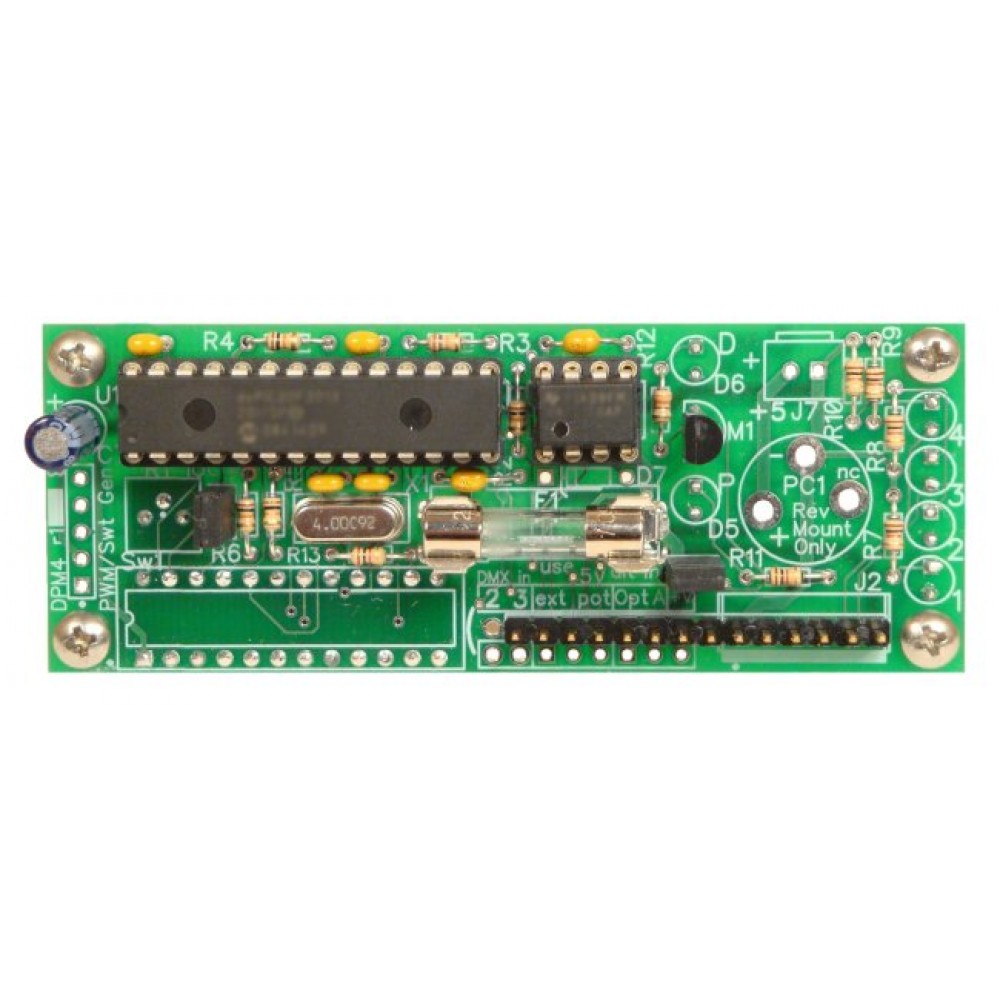

• Manufacturer: ELM Video Technology
• MPN: DPM4-PCB

• Model: DPM4
• UL Listings: PCB pre populated, relay certifications vary - contact us

• PWM Frequency: 240hz
• DMX Data: 250 kHz
• Voltage Input: Regulated +5VDC
• Current Input: 200mA (apx)
• Current Output Max: 15mA per circuit output
• Data Loop Output (if equipped): DMX, (5 and/or 3 pin) female XLR [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +]
• Data Input: DMX512 output 250 kHz, (5 and/or 3 pin) male XLR [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +]

• Dimensions: 1.3 x 3.4 x .75 inches including standoffs
• PCB Fuse: 5x20mm - 500mA

• If the "DMX ON/OFF Threshold 50%" is selected the relay will turn on at 51% (DMX level 131), and the relay will turn off at 49% (DMX level 126).
• If the "DMX ON/OFF Threshold 7%" is selected the relay will turn on at 8% (DMX level 20), and the relay will turn off at 5% (DMX level 13).
• CUSTOM on/off settings are possible and factory set, contact us for more information.

• LED mounting style, top mounted if the unit will be installed with access to the top of the PCB, bottom if the enclosure will have external LED accessibility, and uninstalled if unsure of the mounting style or the LEDs will be extended to the front panel.

• 5VDC Power Supply

FACTORY PRESET DMX ON/OFF THRESHOLDS:

• If the "DMX ON/OFF Threshold 50%" is selected the relay will turn on at 51% (DMX level 131), and the relay will turn off at 49% (DMX level 126).
• If the "DMX ON/OFF Threshold 7%" is selected the relay will turn on at 8% (DMX level 20), and the relay will turn off at 5% (DMX level 13).
• CUSTOM on/off settings are possible and factory set, contact us for more information.
