Name: DMX Splitter 1x8 1RU Rack Mount
SKU: DSPr-1x8
Availability: InStock

DMX 1×8 splitter is equipped with 1 input and 8 outputs in a 1U 19″ rack mount enclosure. The DSPr splitter (distributor, buffer, amplifier, booster) takes the output of a any DMX 512 device (lighting console e.g.) and actively splits the signal providing separate DMX 512 outputs. The DSPr can be equipped with either standard or full input isolated input. The DMX Outputs are electronically isolated from each other, each output can source up to 32 devices (DMX512 standard). Power supply included. Select a preconfigured enclosure or contact us for custom projects. See the Standard Splitter, Inline Buffers and Optical Input Splitter category pages for additional functionality and information. Note: Front mounted power switch is an option.

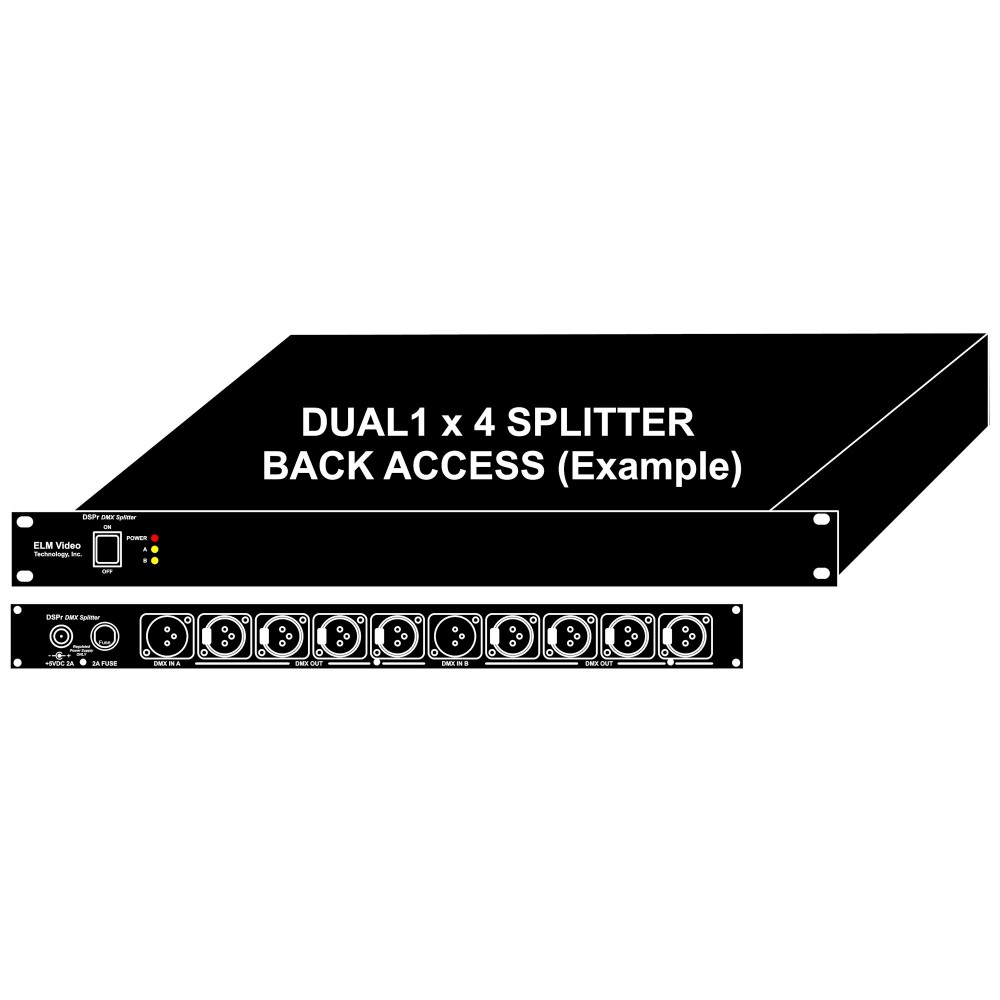

Product drawing and example photos shown. Call or email sales today!

Weight	96.000000084658 oz
Dimensions	22 × 12 × 4 in
Select Options	5 Pin XLR Connector(s), Chipset Upgrade, Power Switch – Front Mounted
DSPr Options	Back Access XLRs, Front Access XLRs, LCD Analyzer Dual Input (3 Pin), LCD Analyzer Dual Input (5 Pin)
Input Isolation Type	Full Input Isolation, Input Isolation, Standard Input, TVS Input Isolation
1RU Reconfiguration	1×10 (single connector on opposite side), 1×5, 1×6, 1×7, 1×9

See the respective PCB and splitter product pages for additional documentation

Manufacturer: ELM Video Technology

DATA TYPE: DMX512 (250Khz)
DATA INPUT STANDARD: DMX512 – 5 (or 3) pin male XLR, [Pin 1 – (Shield) Not connected, Pin 2 Data – , Pin 3 Data +]
DATA INPUT FULL ISOLATED: DMX512 – 5 (or 3) pin male XLR, [Pin 1 – (Shield), Pin 2 Data – , Pin 3 Data +]
DATA OUTPUT: DMX512 outputs – 5 (or 3) pin female XLR’s, [Pin 1 – Power supply common, Pin 2 Data -, Pin 3 Data +]
RDM: No
UL Listings: Power Supply, PCB pre populated
Dimensions: 19 x 8 x 1.75 inches
Weight Apx: 7 pounds
External FUSE: 2A 5×20 mm
Internal PCB FUSE(s): 500mA 5×20 mm
External Power Supply: +5VDC wall style
Voltage Input: 100 ~ 132 (or 240) VAC
Current Output (Min): 2 Amps
Polarization: Positive Center
Output Connector: Locking Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm

See the respective pcb and splitter product pages for additional specifications

Equipped with 3 pin XLR connectors, optional 5 pin XLR connector
Front power switch optional – select to have a power switch installed
DMX Input Isolation:
Standard Input offers electronic input isolation on the DMX input
TVS: Transient Voltage Suppression – Offers higher voltage protection than standard input on the DMX input
Isolated Input: implements the DS5ISO PCB circuit providing input isolation on the DMX input
Full Isolated Input: implements the DS5F PCB circuit providing full input isolation including ground/shield isolation on the DMX input
Chipset upgrade – The chipset upgrade has TVS IC’s installed on the outputs offering TVS isolation on each output of the splitter
LCD Analyzer: A 2 input 2×16 character display DMX analyzer that displays the DMX levels on any of the 512 channels. Also has a front mounted XLR for analyzing any DMX signal as needed.
