- Manufacturer: ELM Video Technology
- Model: DS5F-PCB
- Name: DMX 1x5 Full Isolated Splitter
- MPN: DS5F-PCB
- +5VDC CURRENT: 150mA no load, 450mA at full load (5 outputs sourcing 32 loads each)
- 5V Fuse: 1A
- DATA TYPE: DMX512 (250Khz)
- DATA INPUT: DMX512 - Pin 1 - (Shield) Not connected, Pin 2 Data - , Pin 3 Data +,
- DATA OUTPUT: 5 Independent DMX512 outputs - Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +
- DIMENSIONS: Without screw terminals and LED's extended: 1.3" L x 3.4" W x .788" H (including .375" standoffs)
- DIMENSIONS: With screw terminals and LED's extended: 1.3" L x 3.4" W x .95" H (including .375" standoffs)
- Weight: 2 oz
- DS5P-PCB - On board +5VDC power supply
- Chipset upgrade - The chipset upgrade has TVS IC's installed on the outputs offering TVS (Transient Voltage Suppression) isolation on each output of the splitter.
- LEDs installation:

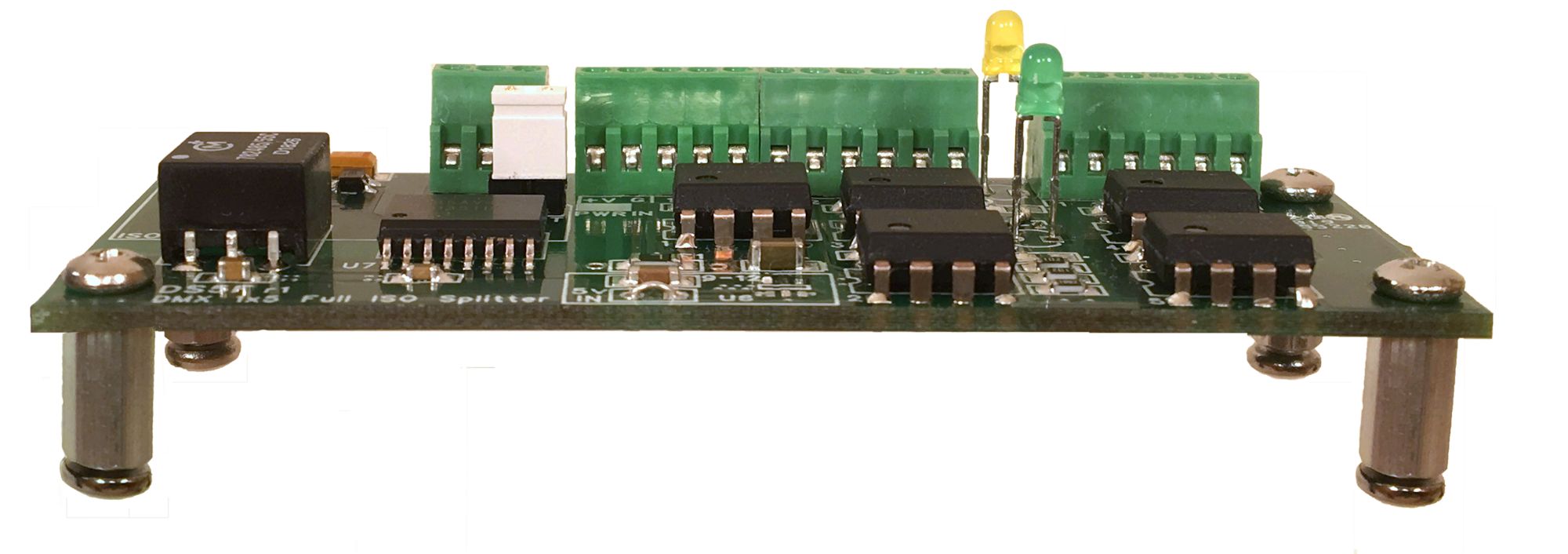

- with the LED's top mounted-extended for enclosure mounting (with respective holes drilled and by moving the standoffs to the top of the PCB, the LED's are visible outside an enclosure)
- OR unistalled for custom LED connections (soldering required)

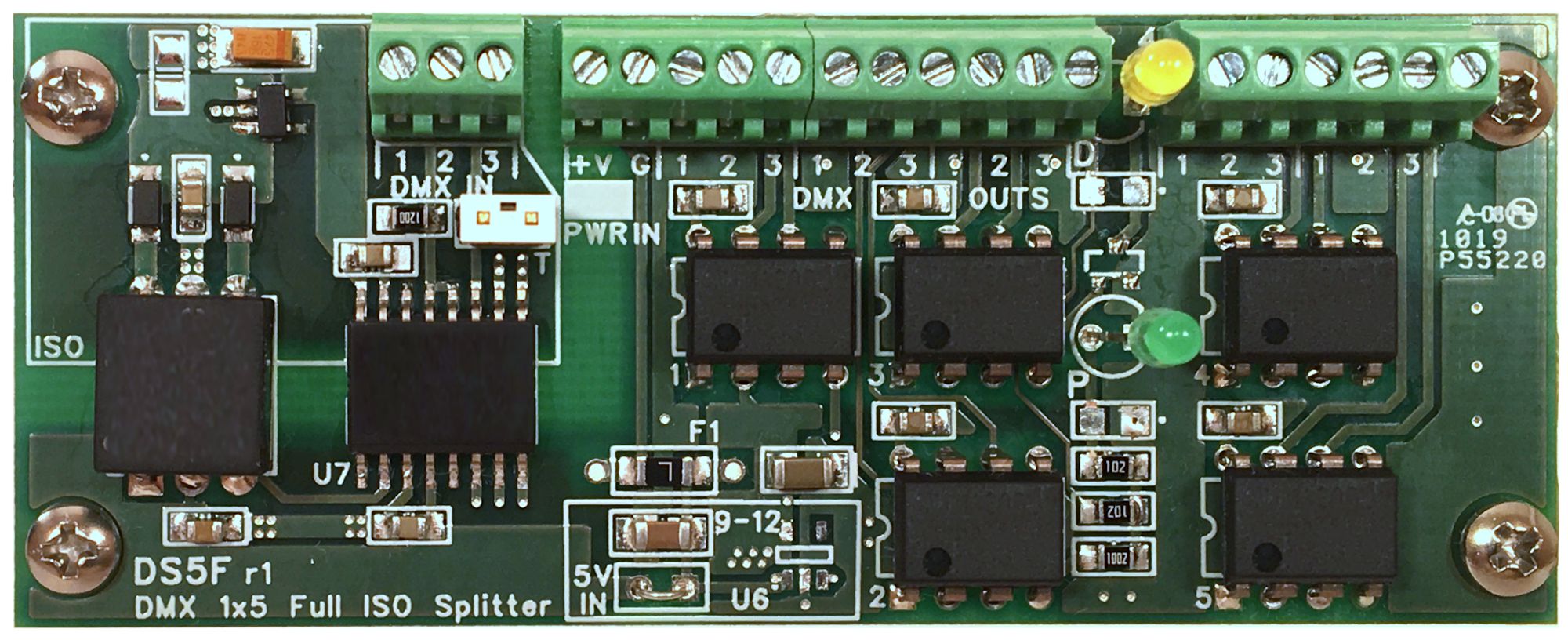

- DMX Input & Output Screw Terminals
- DMX Input & Output Wire Leads/Tails
- DIN Clips for 35mm Rail - Clips are mounted on the PCB and will snap onto a 35mm rail
- DIN Rail 35mm x 8"
OUT OF STOCK - PARTS UNAVAILABLE - TBA
The DS5F is a full isolated Input 1 In 5 out splitter PCB. Accepts a DMX 512 input from any DMX generating device such as a DMX lighting board or PC based DMX device and creates 5 additional outputs (i.e. split, distribute, buffer, amplify, boost) that will each drive up to 32 devices. The DS5F features full isolation of the DMX input as well as the DMX input shield/ground connection. The DS5F offers full isolation without the loading of optical isolation. Several options available.
Gang additional DS5 PCBs to create as many outputs as needed. Add DMX outputs to existing installations or DIY projects. To "Add to Cart" select the LED mounting style required.
Optional Chipset Upgrade - TVS (Transient Voltage Suppression) protection on each output.
Note - The outputs are separately driven and electronically isolated, not "Transient Voltage Suppressed" isolated from each other unless the CHIPSET UPGRADE is selected.
- Compatible with all ELM Video Technology's DMX512 PCB's
- Optional IC Sockets for easy chip replacement
- Engineered with quality parts and a reliable and simple design
- LED indicators for power supply and data active

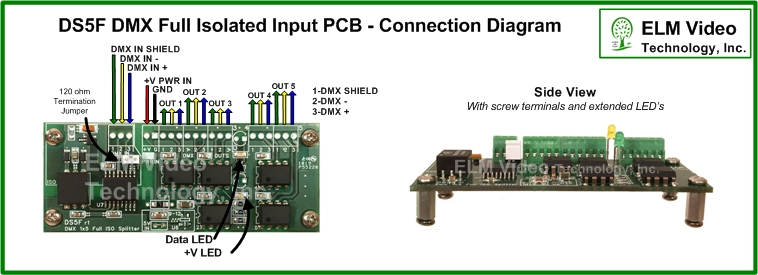

- 120 ohm terminating jumper
- Design a splitter by using multiple PCB's 1x10 Splitter Example
- Compact design and versatile uses

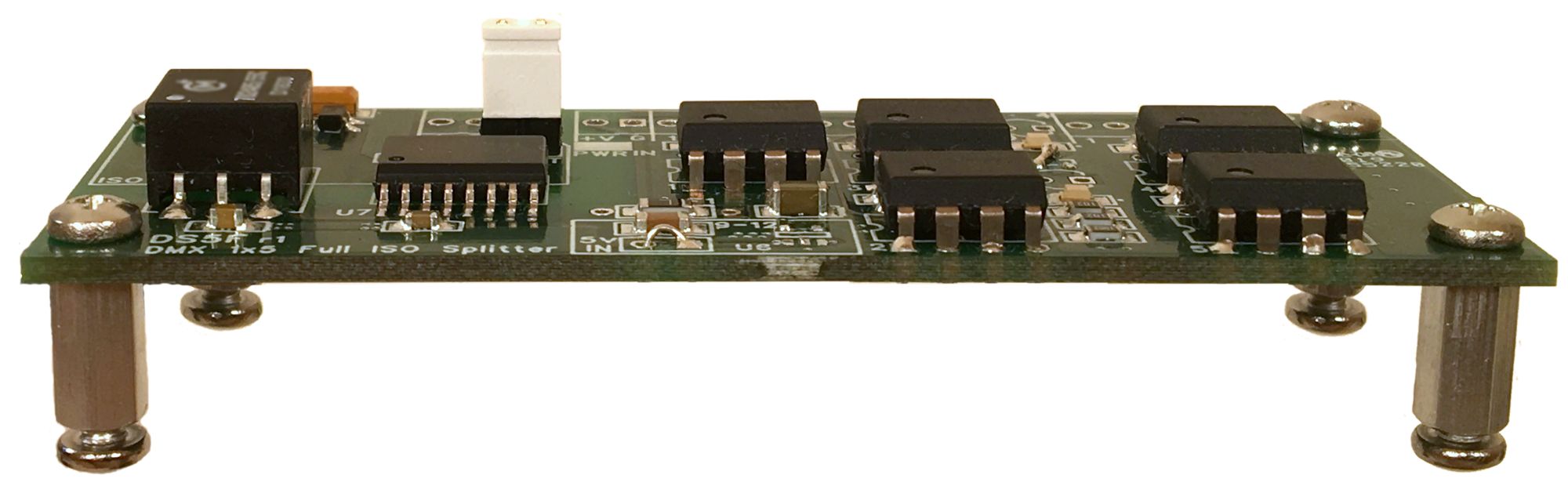

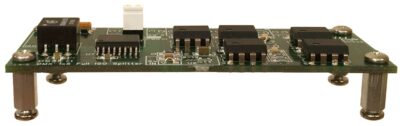

- Assembled DS5F-PCB (Printed Circuit Board) Assembly with (4) .375" standoffs and mounting screws

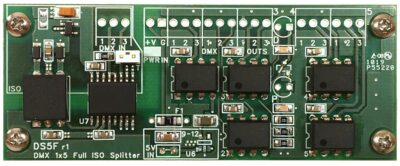

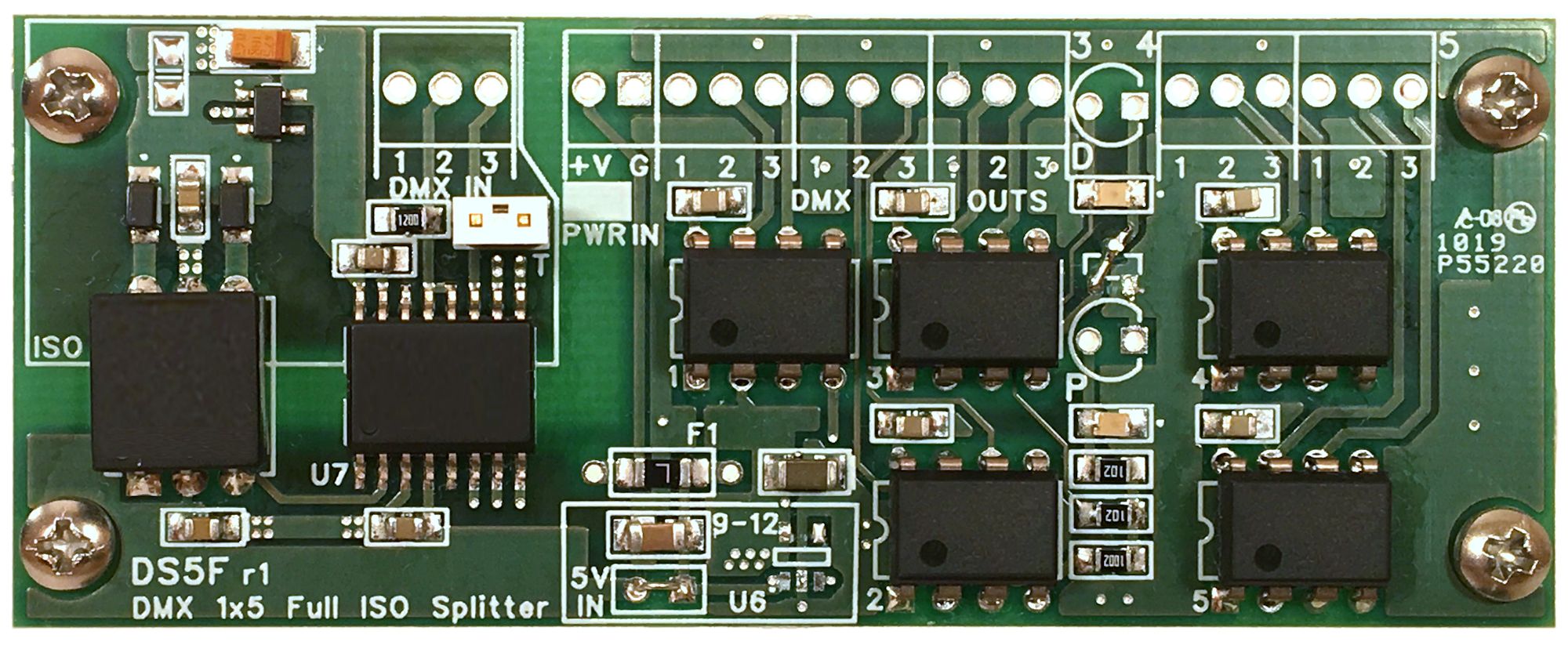

DMX Full Isolated Input Splitter 1x5 PCB
- Brand: ELM Video Technology, Inc.
- Product Code: DS5F-PCB
- Availability: Out Of Stock
- 5 or more $85.00
- 10 or more $80.00
- 50 or more $76.00
