• Manufacturer: ELM Video Technology
  • Name: DMX Splitter / Booster / Amp
  • Description: Creates 4 DMX outputs from a single output of any DMX generating device.
  • MPN: DS4-DC3P
  • Model: DS4
  • UL Listings: Power Supply, PCB pre populated
  • CHASSIS: Anodized Aluminum .093" thick RoHS compliant.
  • DATA TYPE: DMX512 (250Khz)
  • DATA INPUT: DMX512 - 5 (or 3) pin male XLR, [Pin 1 - (Shield) Not connected, Pin 2 Data - , Pin 3 Data +]
  • DATA OUTPUT: 4 separate DMX512 outputs - 5 (or 3) pin female XLR's, [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +]
  • RDM: No
  • Dimensions: 3.7 x 6.7 x 2.1 inches
  • Weight: 1.5 pounds
  • Power Consumption: Apx 350mA with 4 outputs sourcing 32 loads each
  • Internal PCB FUSE: 500mA  5x20 mm
  • External Power Supply: +5VDC wall mount
  •    Voltage Input: 100 ~ 132 (or 240) VAC
  •    Current Output (Min): 1 Amps
  •    Power (Min): 5 Watts
  •    Polarization: Positive Center
  •    Output Connector: Locking Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm



  • 3 or 5 Pin XLR connector
  • Full Isolated Input - The DS5F PCB Circuit is used to provide a full input isolation included ground/shield isolation on the DMX input
  • Chipset upgrade - The chipset upgrade has TVS IC's installed on the outputs offering TVS (Transient Voltage Suppressed) isolation on each output of the splitter.
  • Mounting flanges - allows the unit to be counter top, under counter, or wall mounted

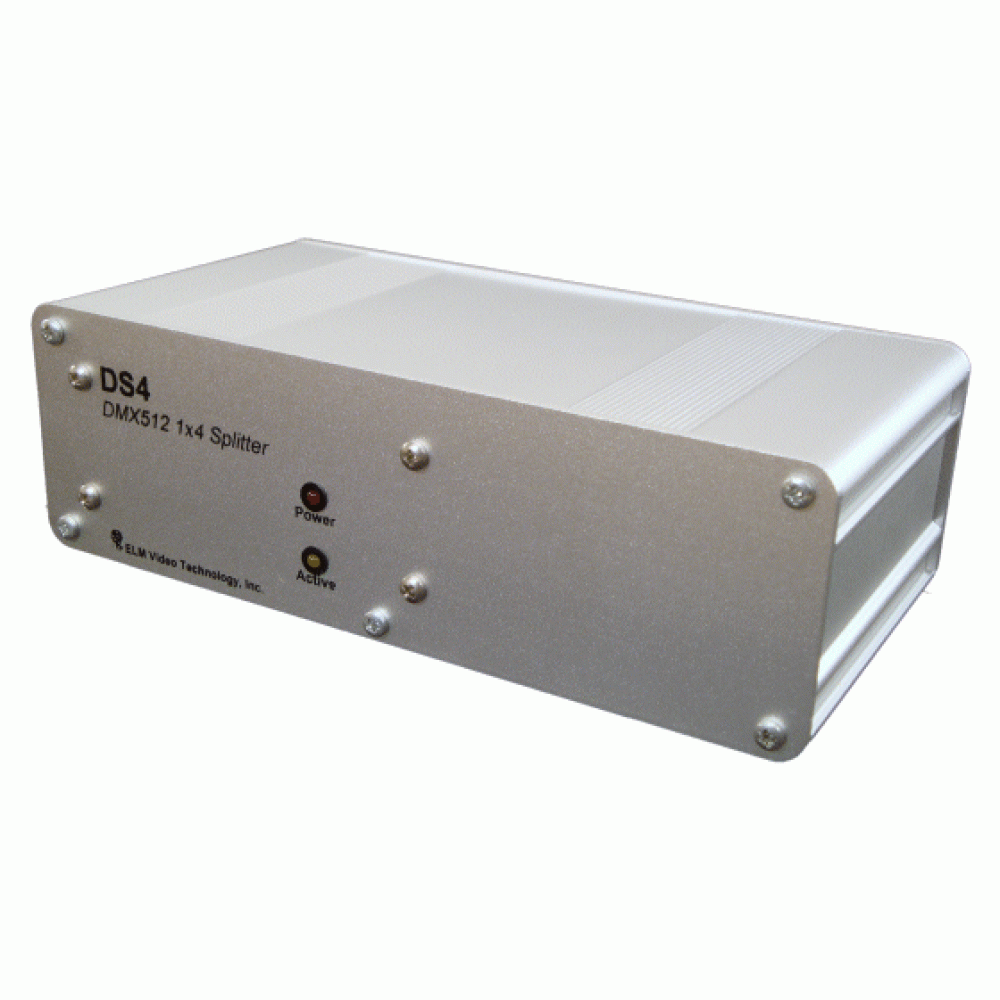

DMX 1x4 Splitter

DMX 1x4 is a 1 in 4 out splitter (distributor, buffer, amplifier, booster) that takes the output of a any DMX device (lighting console e.g.) and actively splits the signal providing 4 separate DMX outputs. The DS4 can be equipped with either standard or full input isolated input. The DMX Outputs are electronically isolated from each other, each output can source up to 32 devices (DMX512 standard) Power supply included.

Note - The outputs are separately driven and electronically isolated, not "Transient Voltage Suppressed" isolated from each other unless the CHIPSET UPGRADE is selected.


FEATURES INCLUDE:

  • Chip sockets for easy replacement (high quality sockets milled with gold contacts)
  • Engineered with quality parts and a reliable and simple design
  • Compact Rugged Aluminum Chassis
  • Quality XLR Connectors (5 and 3 pin interchangeable for custom configurations)
  • 'Active' LED illuminates indicating DMX signal is present, Power LED for 5VDC
