Power Input: +5 volts DC

Power Consumption: 400mA at full power (LCD back light full brightness)

Fuse: 700mA 5 X 20 mm

Dimensions: 3.385” Width X 3.485” Height X 1.9” Depth

Data Type: MIDI 31.5 Khz

Midi input: 5 pin female DIN

Midi output:  5 pin female DIN, 20mA output max

Memory buffer size: 112 bytes (37 - 3 byte messages or 112 - 1 byte messages)

Memory Storage Cycles: 10,000 times



  • Enclosure Labels: black on white, black on clear, white on clear or download ENCLOSURE LABELS


The MTC-PCB is a Midi Time Code hardware analyzer (analyser) / reader / decoder. Decodes any (FX) System Common or System Real-Time Messages and displays them in a clock format, independent from your MTC generating device. See the MIDI TIME CODE page for more information.


FEATURES INCLUDE:

  • Reads/Displays Midi Time Code in a Clock Format
  • Hexadecimal Mode for True Data Analyzing
  • Scroll Through Previous Data
  • Displays MIDI Status: Active Sense, and Time Clock
  • Displays MIDI Line Errors: Framing, Timeout, and Overrun errors
  • Front Accessible Back light & LCD adjustments


MTC-PCB INCLUDES:

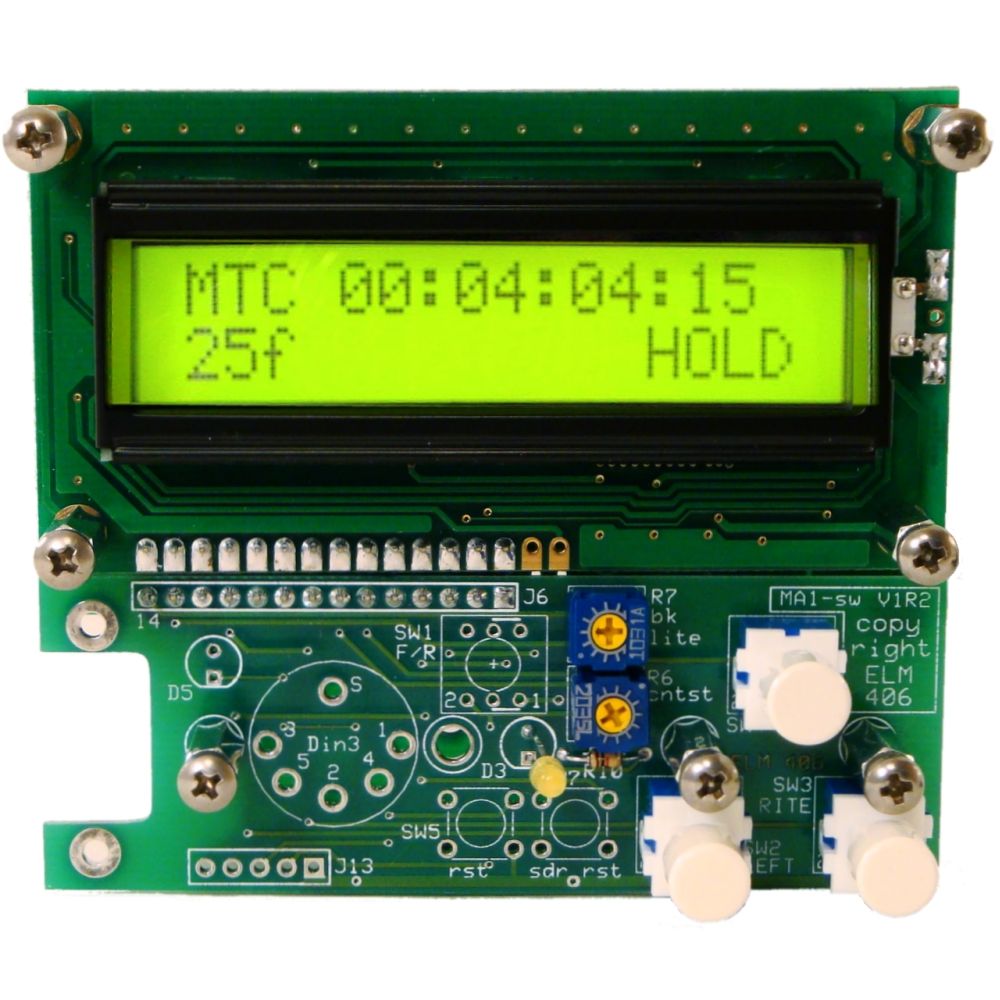

  • Pre assembled MTC PCB (Printed Circuit Board)with .5" standoffs and mounting hardware

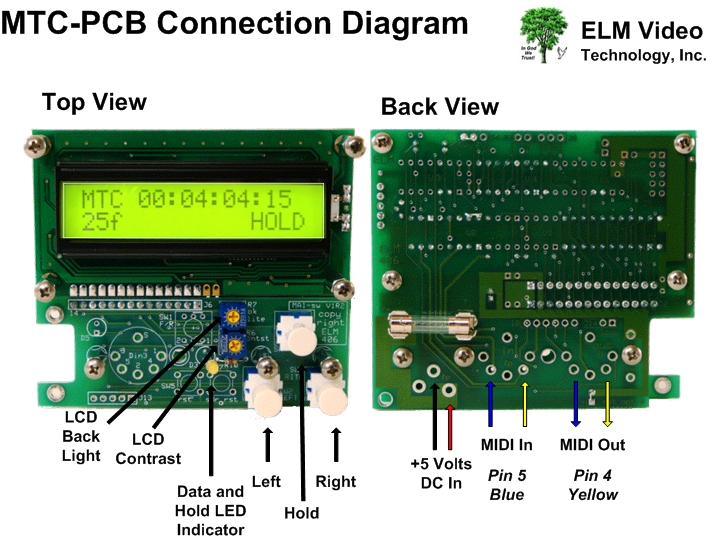

  • Drill Template and Wiring Diagram
  • Optional kit that includes DIN connectors and LCD clear bezel w/ adhesive strips see photo


Midi Time Code Reader PCB

  • $139.00


Available Options
