New Beta Release Date: Sept 2018

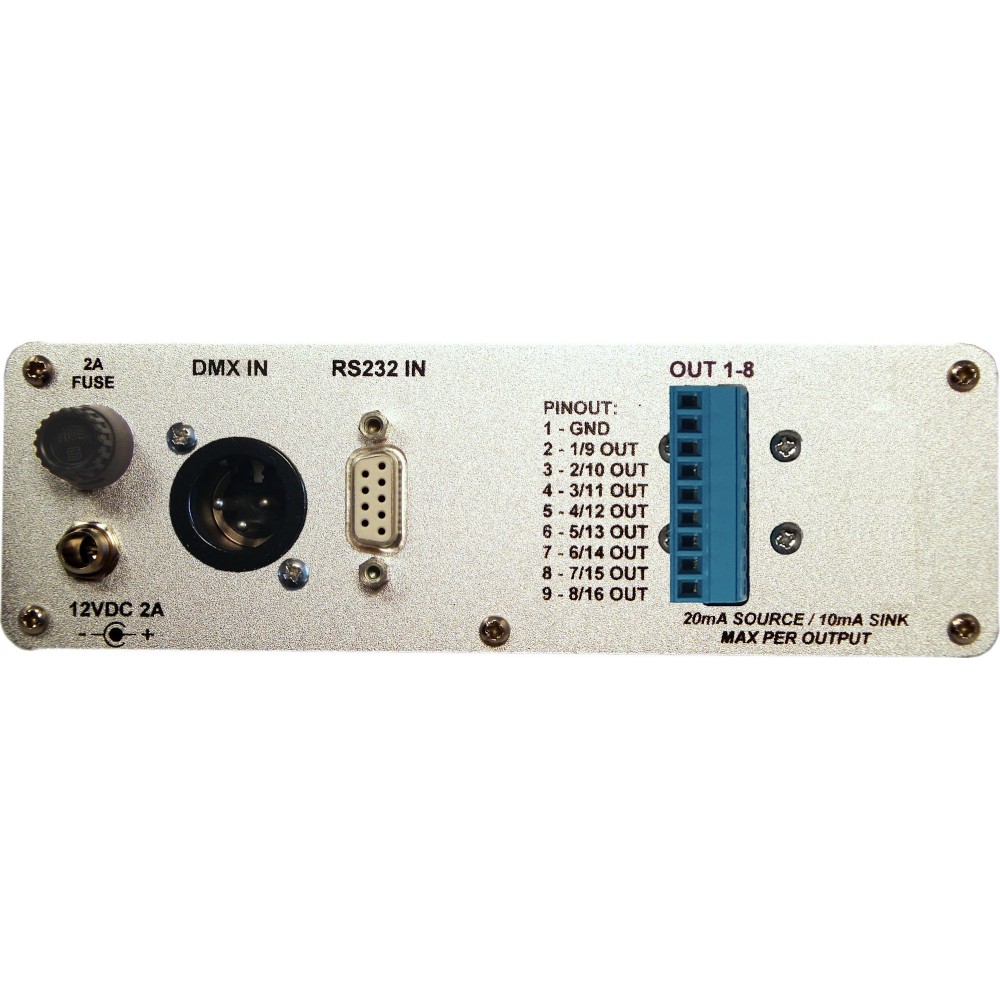

RS23210V Users Guide and Technical Specs Version 4.00 pdf  -  DMX input option added with DMX loop THROUGH/HOLD/NORMAL features


Previous Software Revisions:

V3.00 Release Nov 2016: PCB design change

 May 2016: Version 2.10 pdf - Scene save and recall features added RS23210V Users Guide and Technical Specs V2.10

March 2016: Version 2 pdf  -  V2.00 - added 512 channel support (previous 256), added CTS (Clear to Send) support, increased processor speed  RS23210V Users Guide and Technical Specs V2.00

February 2016: V1.01 added processor reset upon "R" command




Brand: ELM Video Technology

Manufacturer: ELM Video Technology

Model: RS23210V

Name: RS232 to 0-10 Volt Converter Controller Driver

UL Listings: Power Supply, PCB pre populated

MPN: RS23210V

Dimensions: 6.7"W x 2.1"H x 3.7"D

RS232-PCB:

    RS232 Input: 9600 Baud rate, 8, 1, None

    Command String Length: 96 characters

    Command String Execute Timing: 100mS recommended

    DB9 Connections: Pin 5-gnd, pin 3-TX data (from source to the DS232 unit), pin 8-CTS (Clear to Send)

    Data Output: DMX512 output 250 kHz, 5 and/or 3 pin female XLR [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +]

    Internal FUSE: RS232 Converter PCB - 500mA PCB mount through hole

0-10V PCB:

    Internal Fuse: SMT 750mA

    Power Input: +12VDC apx 400mA (values apx, some circuits may vary)

    4 Channel:   no load:64mA   full load 145mA

    8 Channel:   no load 70mA   full load 230mA

    12 Channel: no load 76mA   full load 316mA

    16 Channel: no load 82mA   full load 402mA

Voltage Output: 0~10VDC, (500 ohm minimum load)

Source Output Current: 20mA Max each

Sink Output Current: 10mA Max each

Data Type: DMX (250Khz)

Data Input: 5 (or 3) pin female XLR, [Pin 1 Not connected, Pin 2Data -, Pin 3 Data +]

Weight: 1.5 pounds

Operating temperature: 32°F to 100°F

Storage temperature: 0°F to 120°F

Refresh Rate Per Second: 4 Ch's = 1162, 8 Ch's = 571, 12 Ch's = 384, 16 Ch's = 285 (amount of times per second the outputs are updated)

External Power Supply:

    +12VDC

    Voltage Input: 100 ~ 132 (or 240) VAC

    Current Output: 1 Amps typical

    Power: 12 Watts typical



  • Equipped with 4 outputs, add 8, 12, or 16 outputs
  • Equipped with 3 pin XLR connectors, optional 5 pin XLR's option available

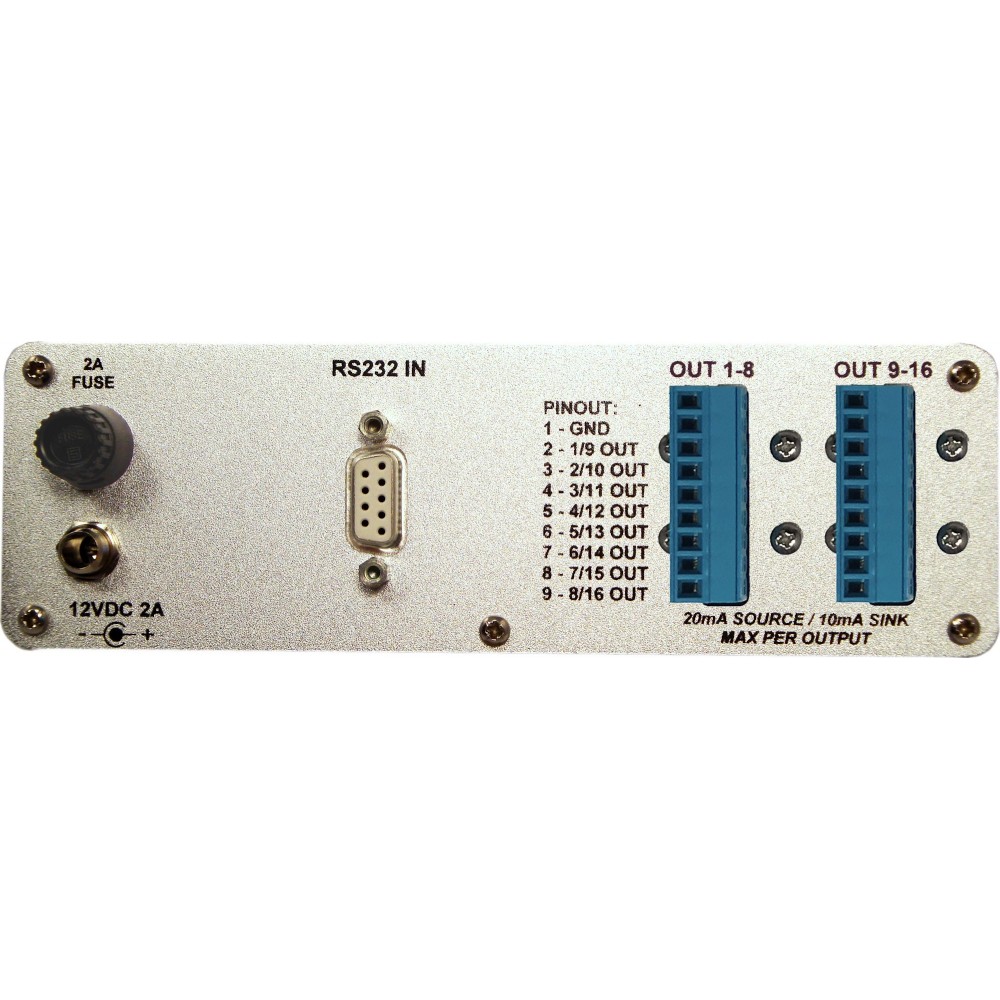

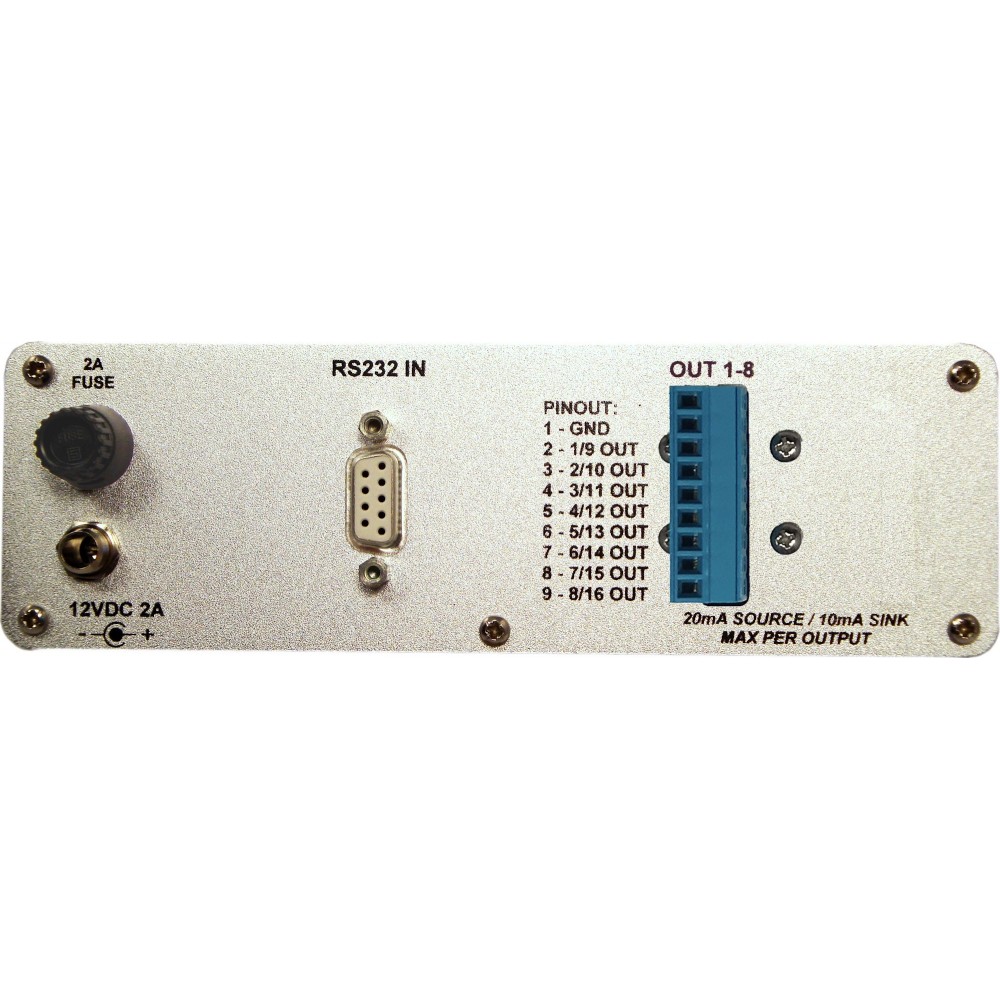

  • Equipped with Inline DB9 solder style connector(s) (Outputs 1-8 & 9-16), optional solderless screw terminal connector(s)

  • Mounting flanges - allows the unit to be counter top, under counter, or wall mounted

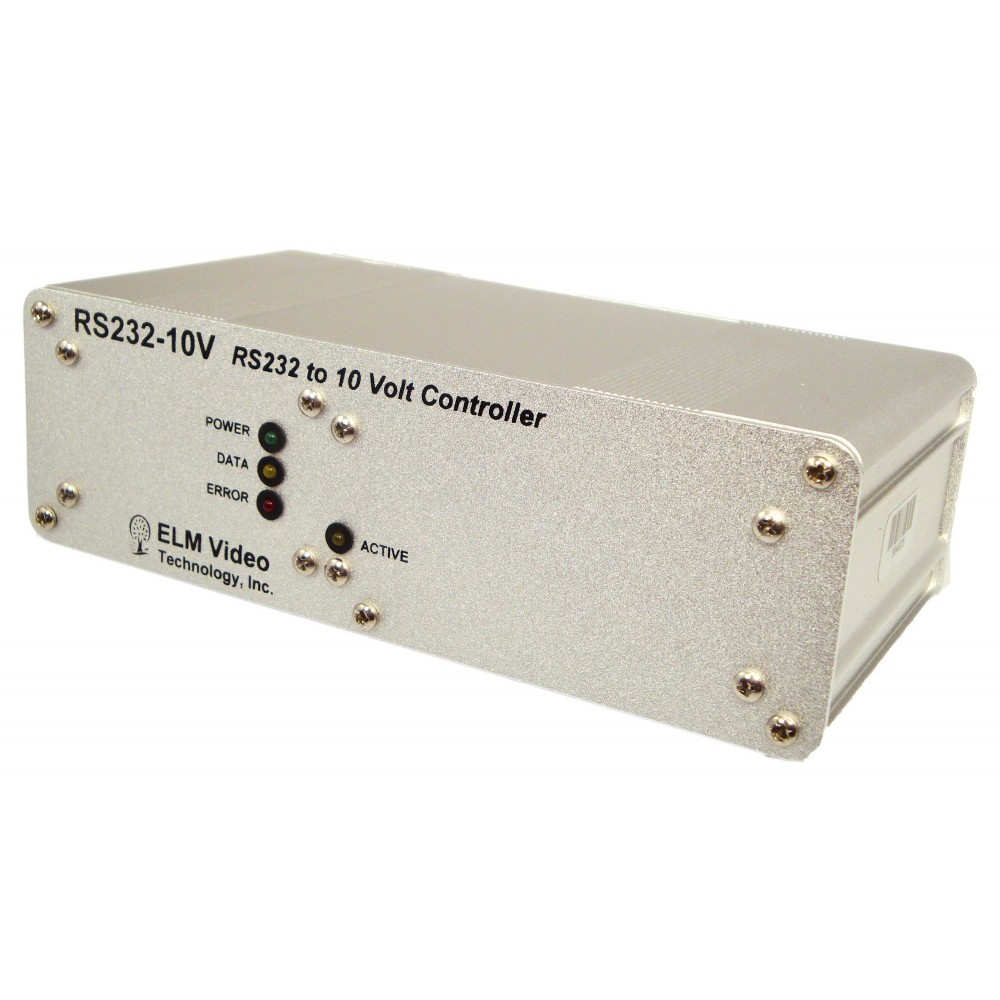

Receives an RS232 signal and converts to an 0-10 volt analog signal to control a variety of equipment. Equipped with 4 channels, upgrade to 8, 12, or 16. Available in an aluminum enclosure, mounting flanges available. See the RS232 to 0-10 volt analog converter controller category page for more information.

Includes +12VDC external power supply, face plate screws, and label.



RS232 to 0-10 Volt Analog Converter

  • $449.00


  • 5 or more $427.00
  • 10 or more $404.00

Available Options
