Name: DMX Analyzer Dual Input
SKU: DLA
Availability: InStock

SKU: DLA Categories: DMX Products, Testers and Analyzers Tags: 512, analyser, analyzer, Desktop, dla, dmx

Availability: Usually ships in 1-2 days

$289.00

DMX Analyzer (Portable Hand Held Unit) Demonstrated

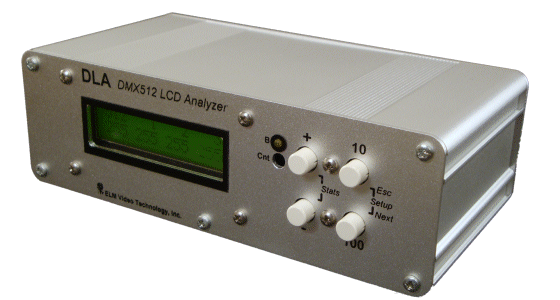

The DLA is a DMX receive (only) analyzer in a compact counter top style all aluminum enclosure. Optional 2nd loop thru input. Includes 5V power supply. See the DLA-HH page or users guide for more information. Note: Non RDM

FEATURES INCLUDE:

Bar Graph Display (Displays 24 Channels at a Time)
Decimal Display
Hexadecimal Display
Percentage Display
Statistics Display
Auto Dim Feature (User Set Timer)
Dual Input Option

Weight	33.60000002963 oz
Dimensions	3.7 × 6.7 × 2.1 in

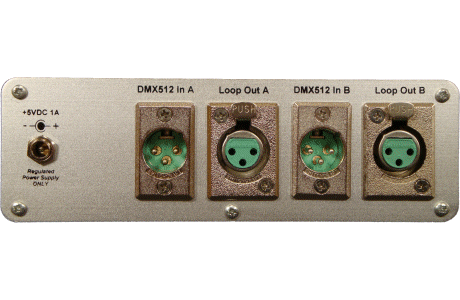

DLA Add Ons	Add a 2nd loop thru input B w/ 3 pin XLRs, Add a 2nd loop thru input B w/ 5 pin XLRs
DLA Selectable Features	5 Pin XLRs Input A, Mounting Flanges

DLA Users Manual and Technical Spec’s pdf
DLA Configuration Example & Block Diagram jpg

Brand: ELM Video Technology
Manufacturer: ELM Video Technology
Model: DLA
UL Listings: Power supply
Humidity: Noncondensing
Non-Volatile Memory Writes: Minimum 100K, Typical 1M
Non-Volatile Memory Retention: Minimum 40 Yrs, Typical 100 Yrs
Dimensions: 3.7″ x 6.7″ x 2.1″
Data Input: DMX512 output 250 kHz, 5 and/or 3 pin female XLR [Pin 1 – NC, Pin 2 Data -, Pin 3 Data +]
Data Loop Output: DMX512 output 250 kHz, 5 and/or 3 pin female XLR [Pin 1 – Power supply common, Pin 2 Data -, Pin 3 Data +]
RDM: No
Weight: 1.5 pounds
External Power Input: +5VDC
Internal FUSE: 500mA 5×20 mm
Power Consumption:
Apx 42mA back light=0
73mA back light=5
62mA back light=0 & B circuit installed
140mA back light=25
160mA back light=25 & B circuit installed
External Power Supply: +5VDC wall mount
Voltage Input: 100 ~ 132 (or 240) VAC
Current Output (Min): 1 Amps
Power (Min): 5 Watts
Polarization: Positive Center
Output Connector: Locking Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
