• Brand: ELM Video Technology
  • Manufacturer: ELM Video Technology
  • Model: DLA
  • UL Listings: Power supply
  • Humidity: Noncondensing
  • Non-Volatile Memory Writes: Minimum 100K, Typical 1M
  • Non-Volatile Memory Retention: Minimum 40 Yrs, Typical 100 Yrs
  • Dimensions: 3.7" x 6.7" x 2.1"

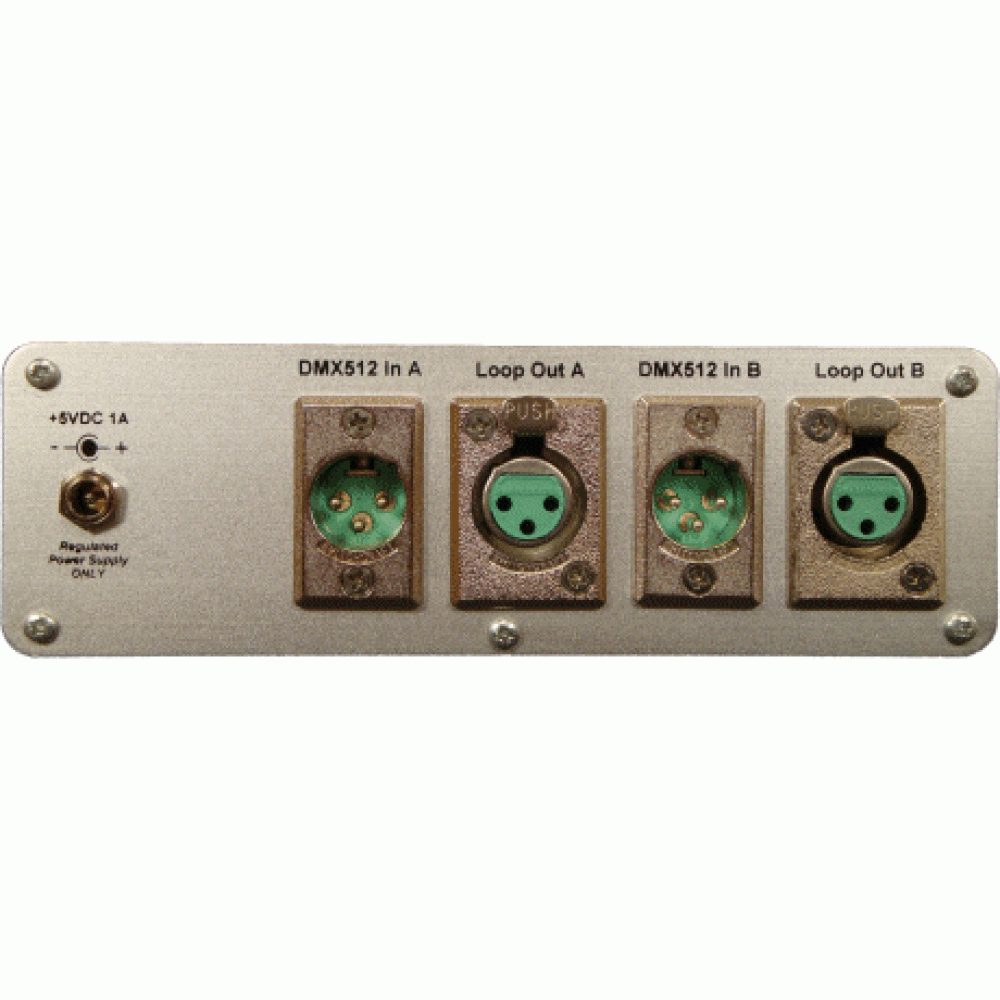

  • Data Input: DMX512 output 250 kHz, 5 and/or 3 pin female XLR [Pin 1 - NC, Pin 2 Data -, Pin 3 Data +]
  • Data Loop Output: DMX512 output 250 kHz, 5 and/or 3 pin female XLR [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +]
  • RDM: No
  • Weight: 1.5 pounds
  • External Power Input: +5VDC
  • Internal FUSE: 500mA 5x20 mm
  • Power Consumption:
  •         Apx 42mA back light=0
  •         73mA back light=5
  •         62mA back light=0 & B circuit installed
  •         140mA back light=25
  •         160mA back light=25 & B circuit installed
  • External Power Supply: +5VDC wall mount
  •     Voltage Input: 100 ~ 132 (or 240) VAC
  •     Current Output (Min): 1 Amps
  •     Power (Min): 5 Watts
  •     Polarization: Positive Center
  •     Output Connector: Locking Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm



  • Dual Input option
  • 5 pin XLRs
  • Mounting flanges


  • DMX Analyzer (Portable Hand Held Unit) Demonstrated

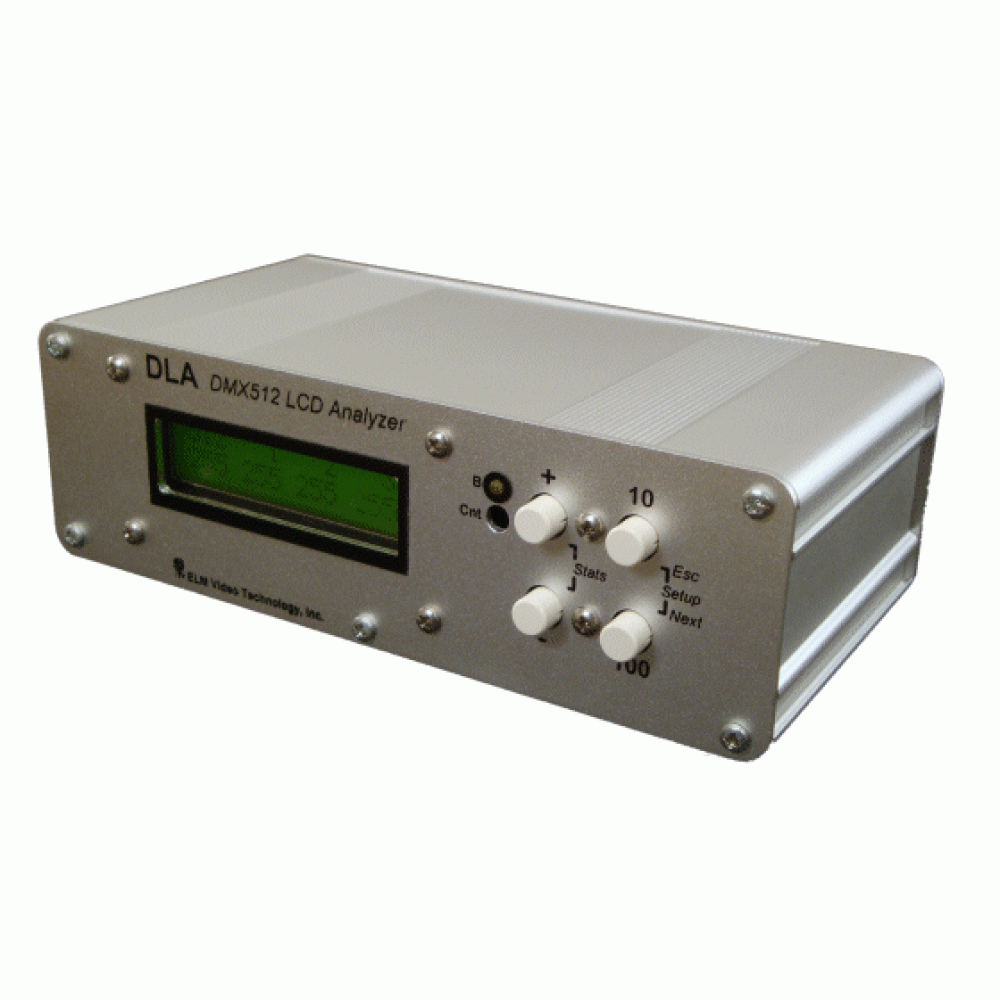

    The DLA is a DMX receive (only) analyzer in a compact counter top style all aluminum enclosure. Optional 2nd loop thru input. Includes 5V power supply. See the DLA-HH page or users guide for more information. Note: Non RDM


    FEATURES INCLUDE:

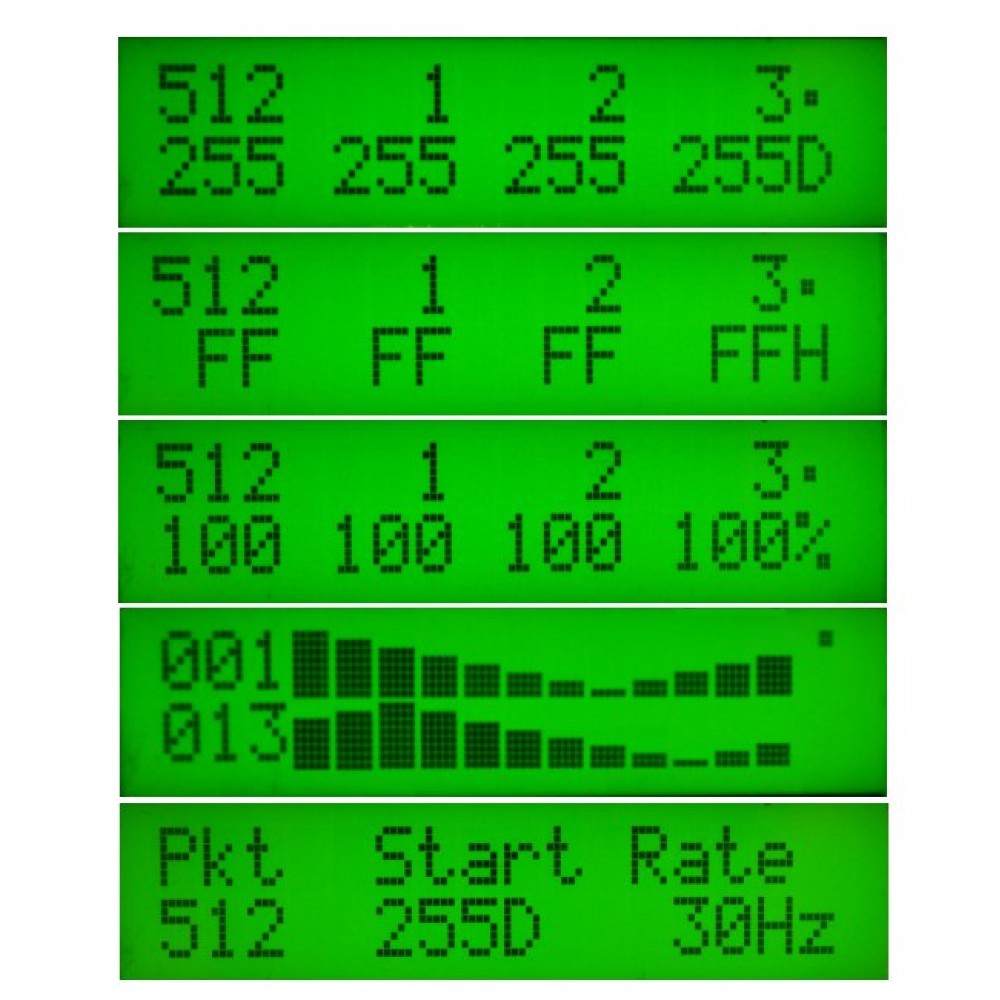

    • Bar Graph Display (Displays 24 Channels at a Time)
    • Decimal Display
    • Hexadecimal Display
    • Percentage Display
    • Statistics Display
    • Auto Dim Feature (User Set Timer)
    • Dual Input Option

    DMX Analyzer Dual Input

    • $289.00


    • 5 or more $275.00

    Available Options
