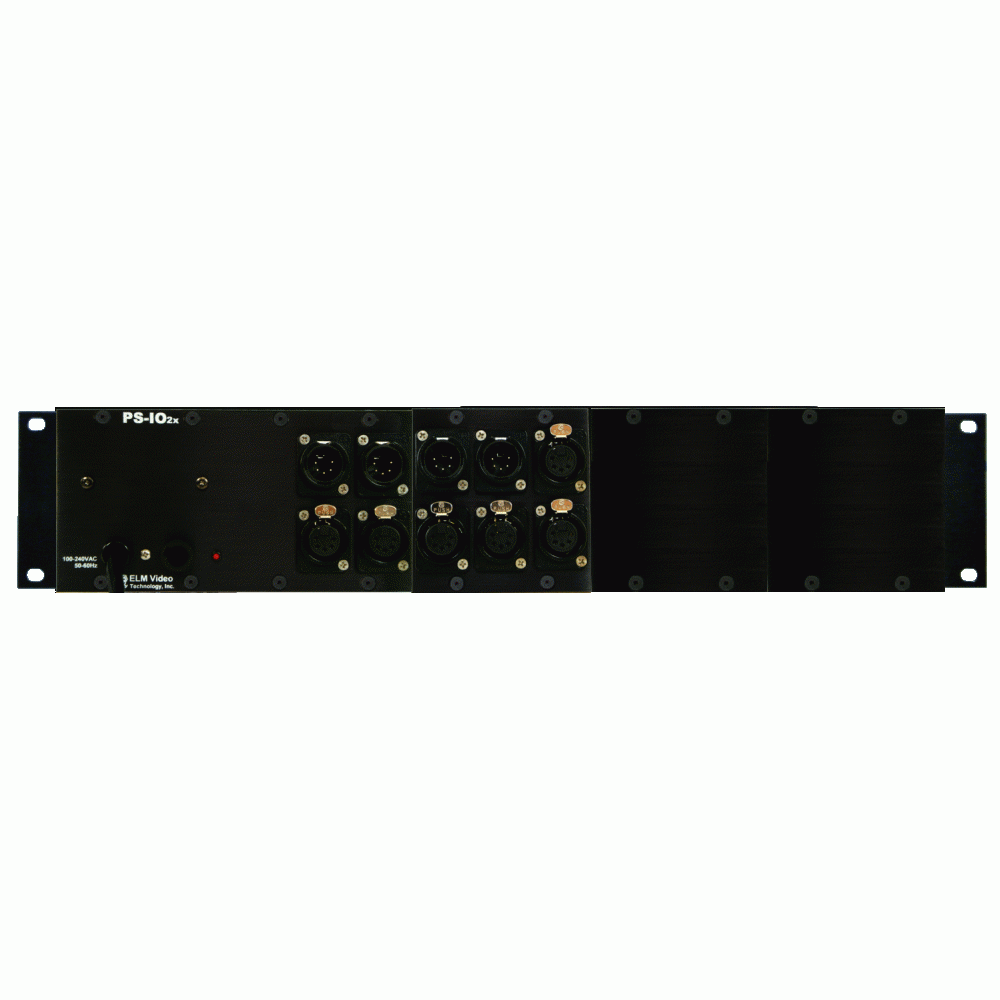

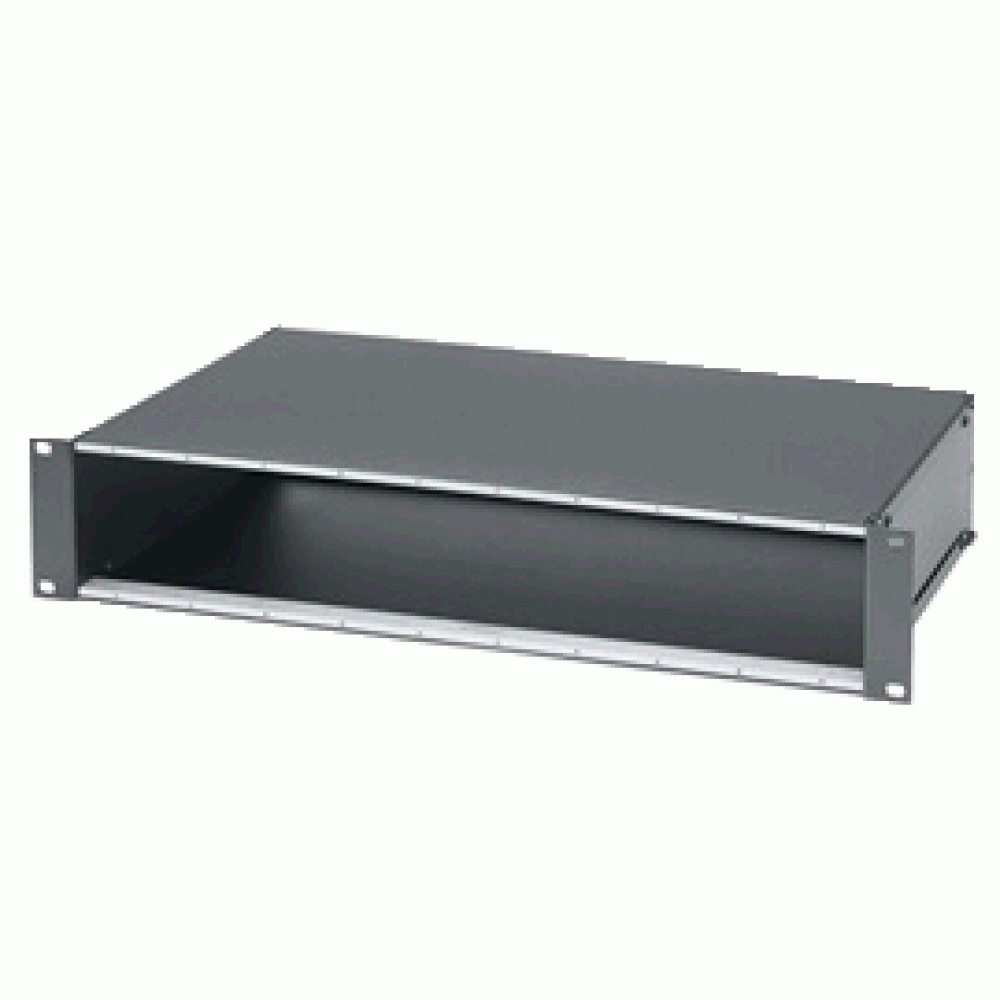

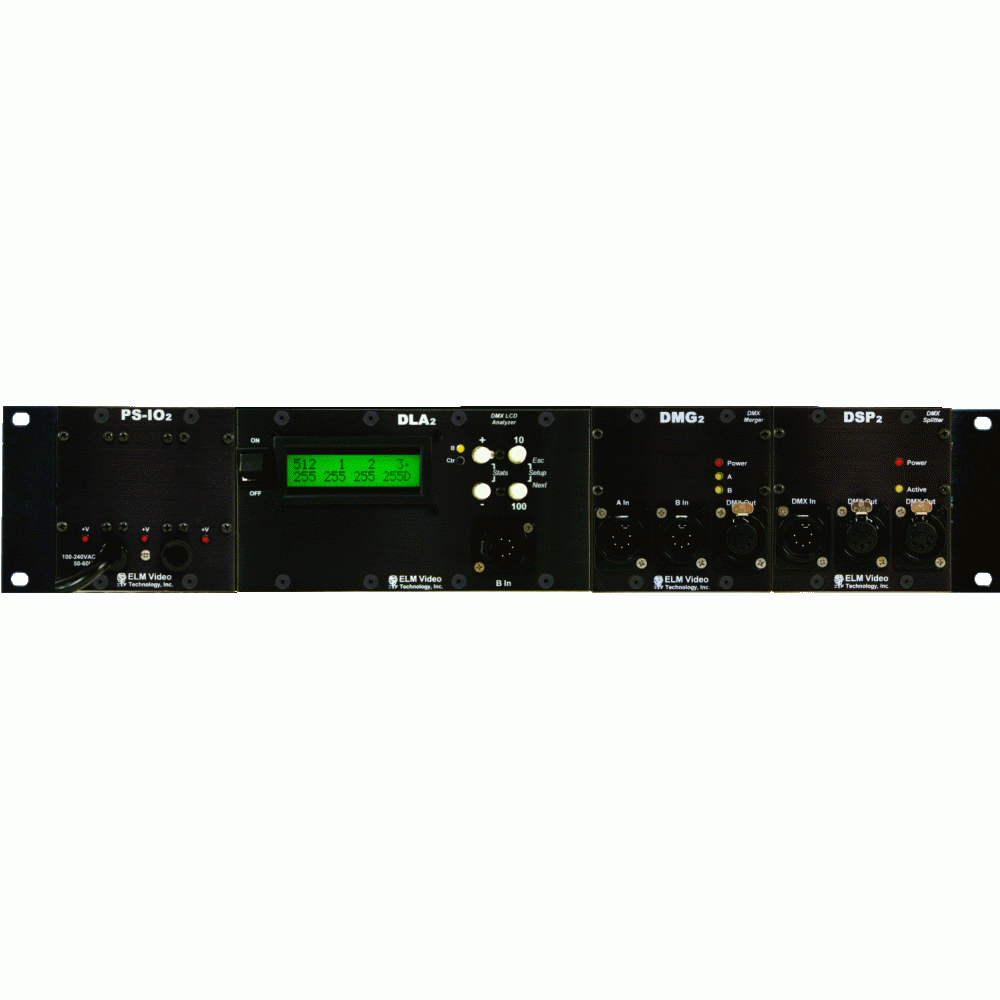

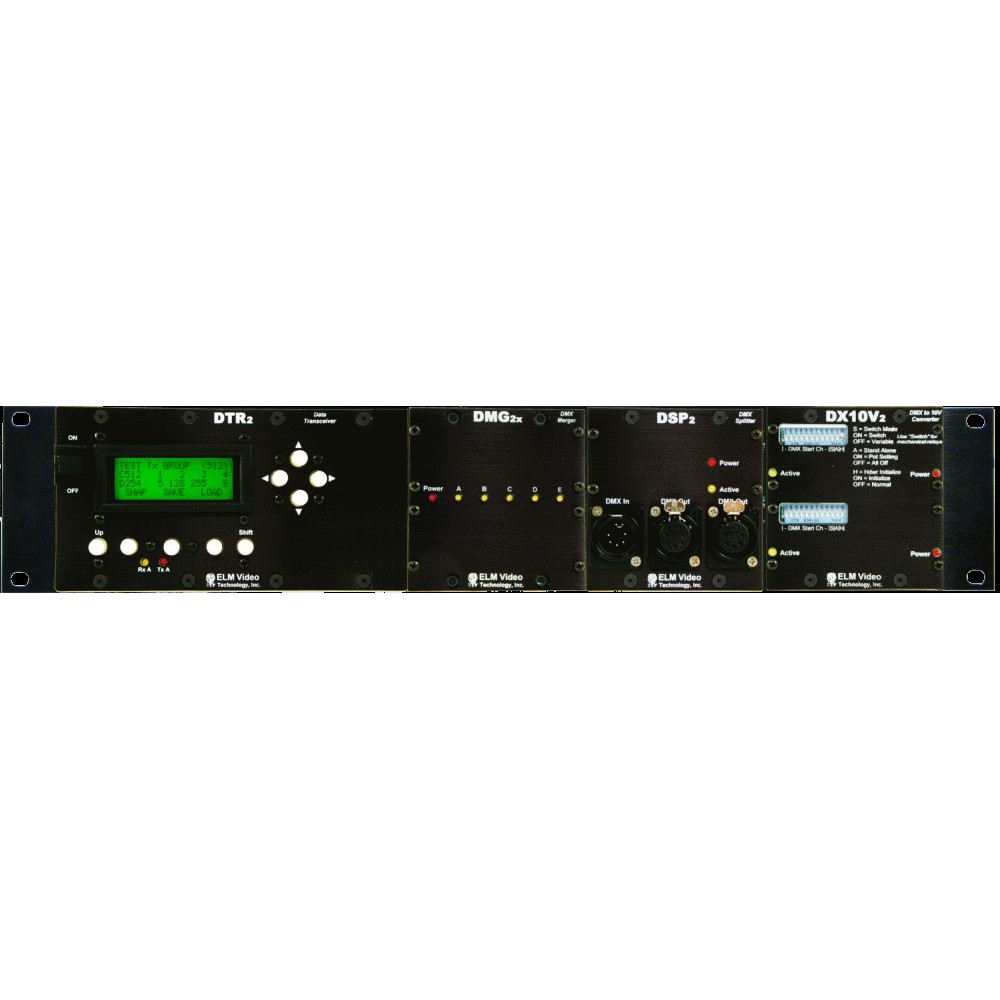

Customizable DMX Modular Chassis. The Modular Series Chassis houses any of the DMX and Midi Modules. 2 RU rack unit, durable, all metal chassis. THE PS-IO power supply module comes with the base price, choose up to 9 additional 1/5th size modules. Mounts five 1/5 modules on the front and five on the back. Note: Several modules require two 1/5 spaces. Can be used with Middle Atlantic UCP modules.

Specify in the comments section any wiring methods and module placements or contact us for any customs needs.

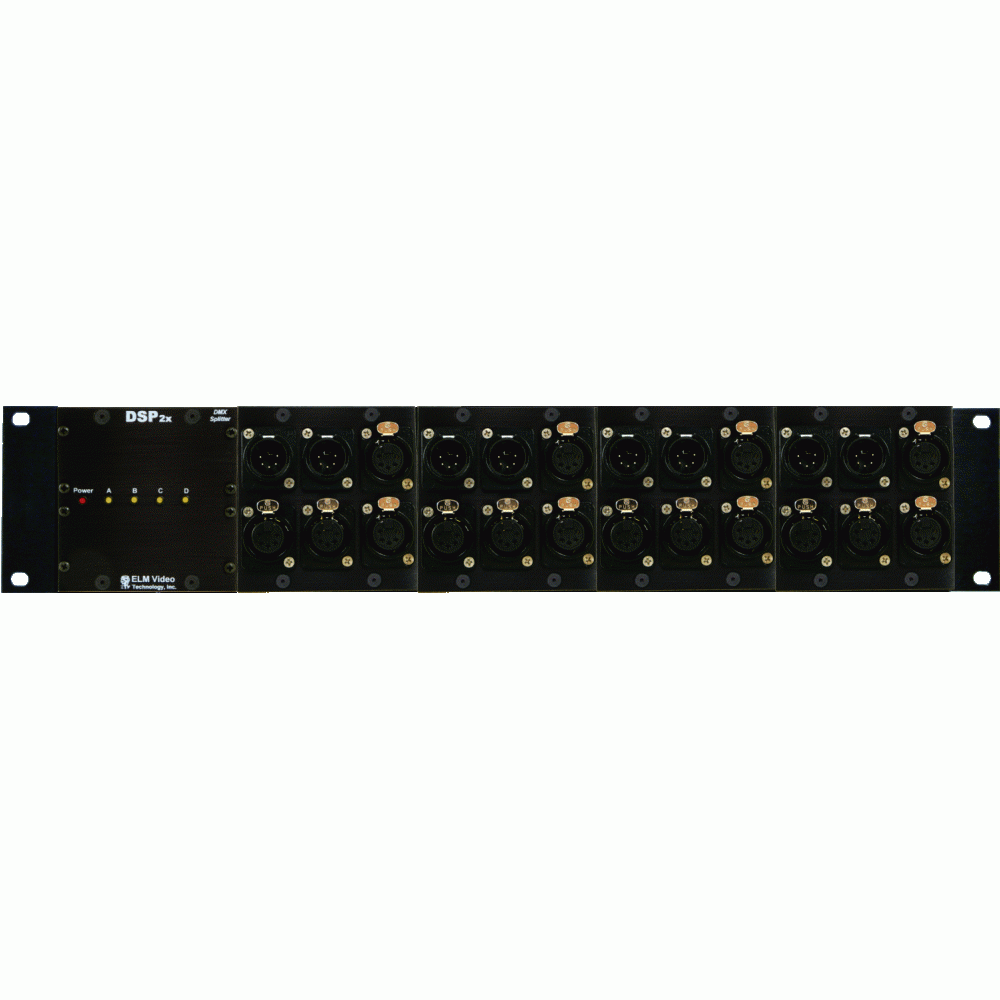

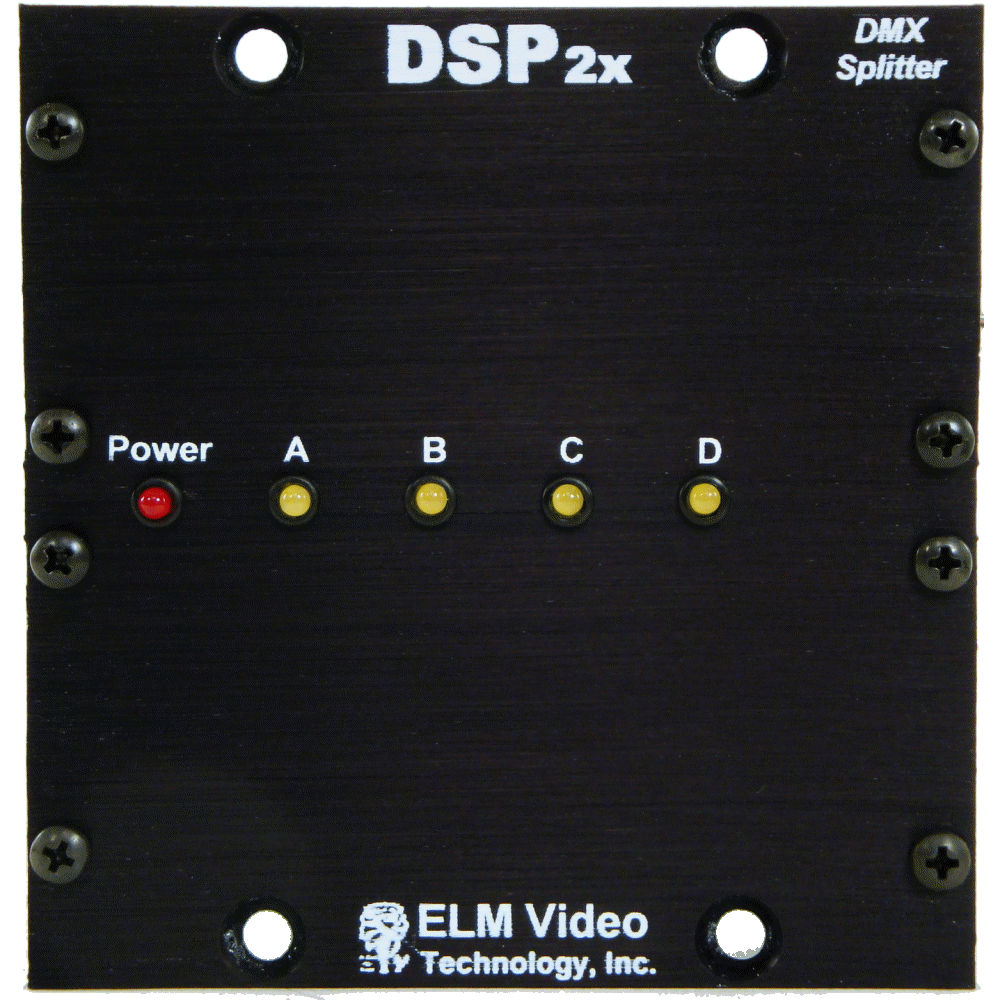

  • DSP2x module is a DMX splitter.Select up to 4 1x4 PCB's with Standard or Optical input (see the optical input splitter page for more info about optical input loading). Mounts up to 4 splitter PCB's and can be wired in different configurations, e.g. (4) 1x4, (1) 1x8, (1) 1x4 and (1) 1x12 splitter, etc.

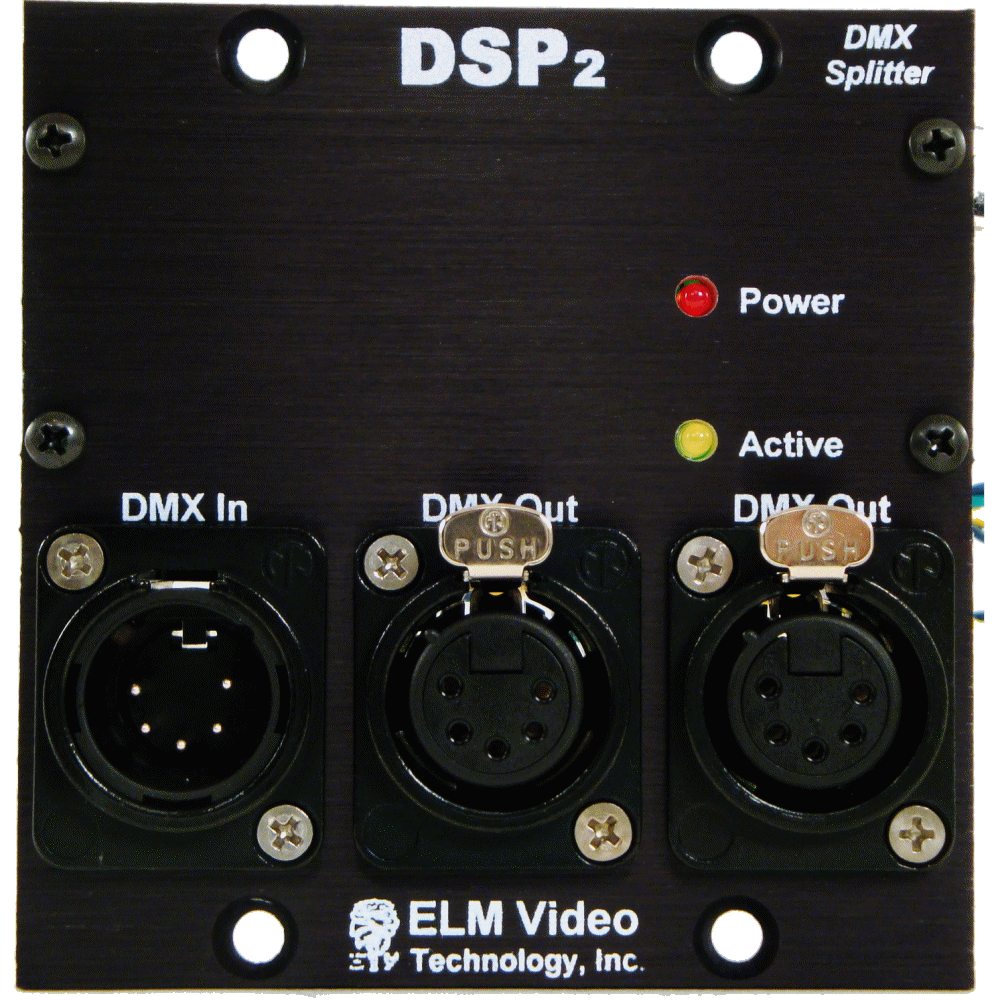

  • DSP2 module is a 1 x 2 DMX splitter with front accessible XLR connectors. 3 pin XLR standard, 5 pin available. Standard or Optical input (see the optical input splitter page for more info about optical input loading).

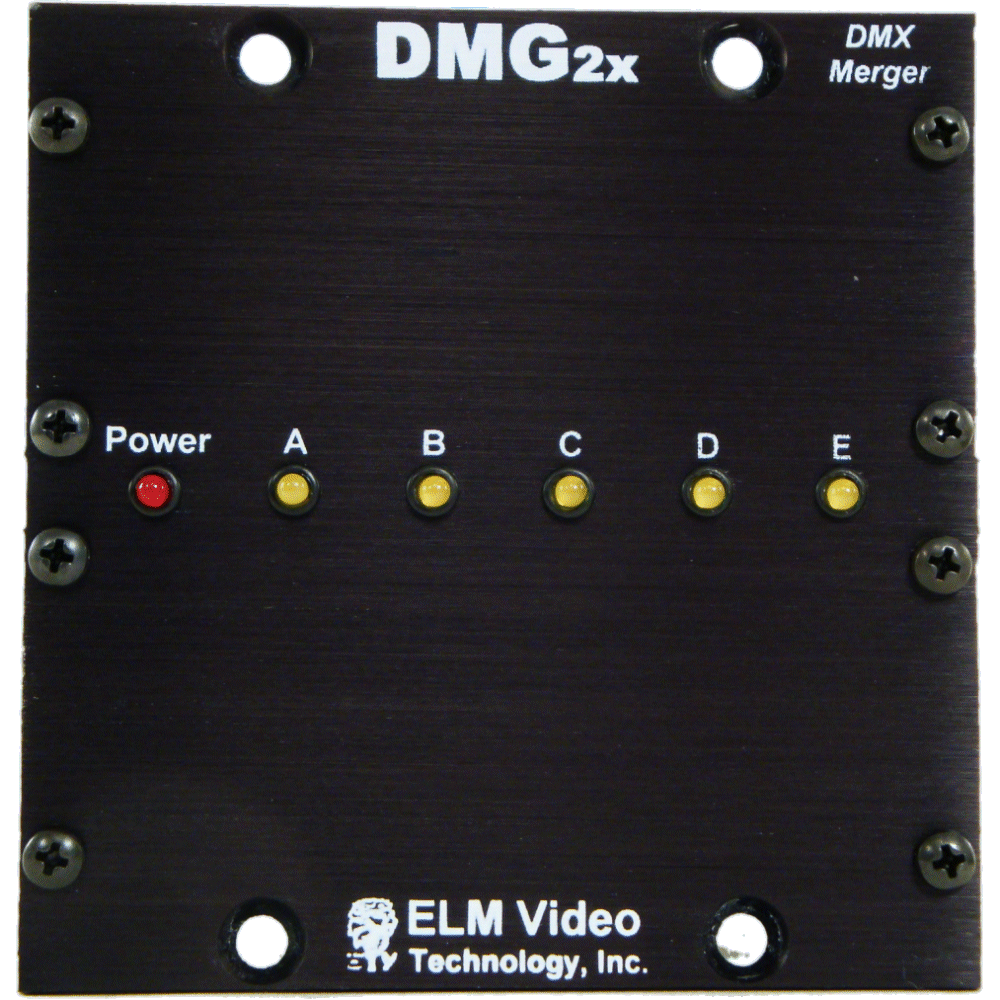

  • DMG2x is a DMX merger module with up to 6 input capability. The DMG2x module will mount up to 4 2x1 merger PCB's, which allows several input/output and wiring options. Price reflects 2x1 (1 PCB) module, select up to 3 additional PCB's.

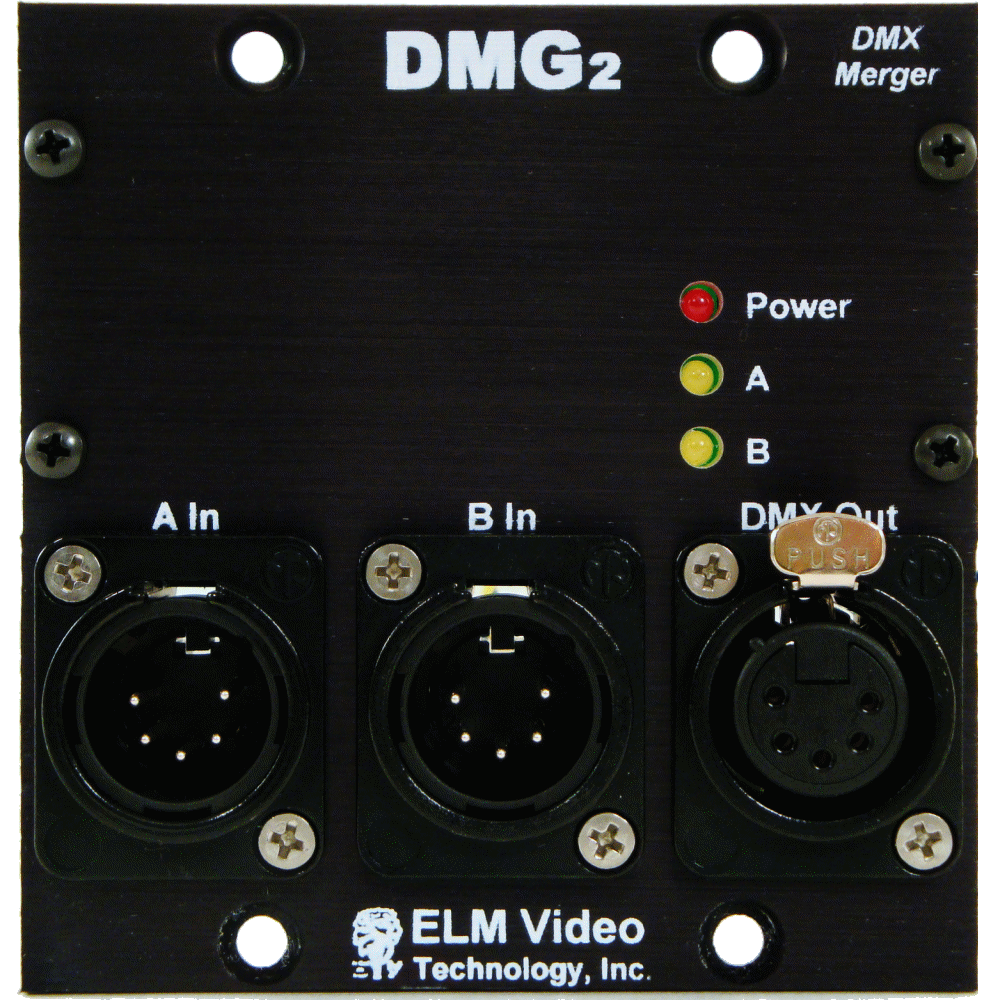

  • DMG2 is a DMX 2 in 1 out merger module with the input connectors accessible and the LED indicators on the front of the panel. Use as part of the DMX modular chassis enclosure or mount as needed. For more information on the DMX merger functions see the merger full description category page.

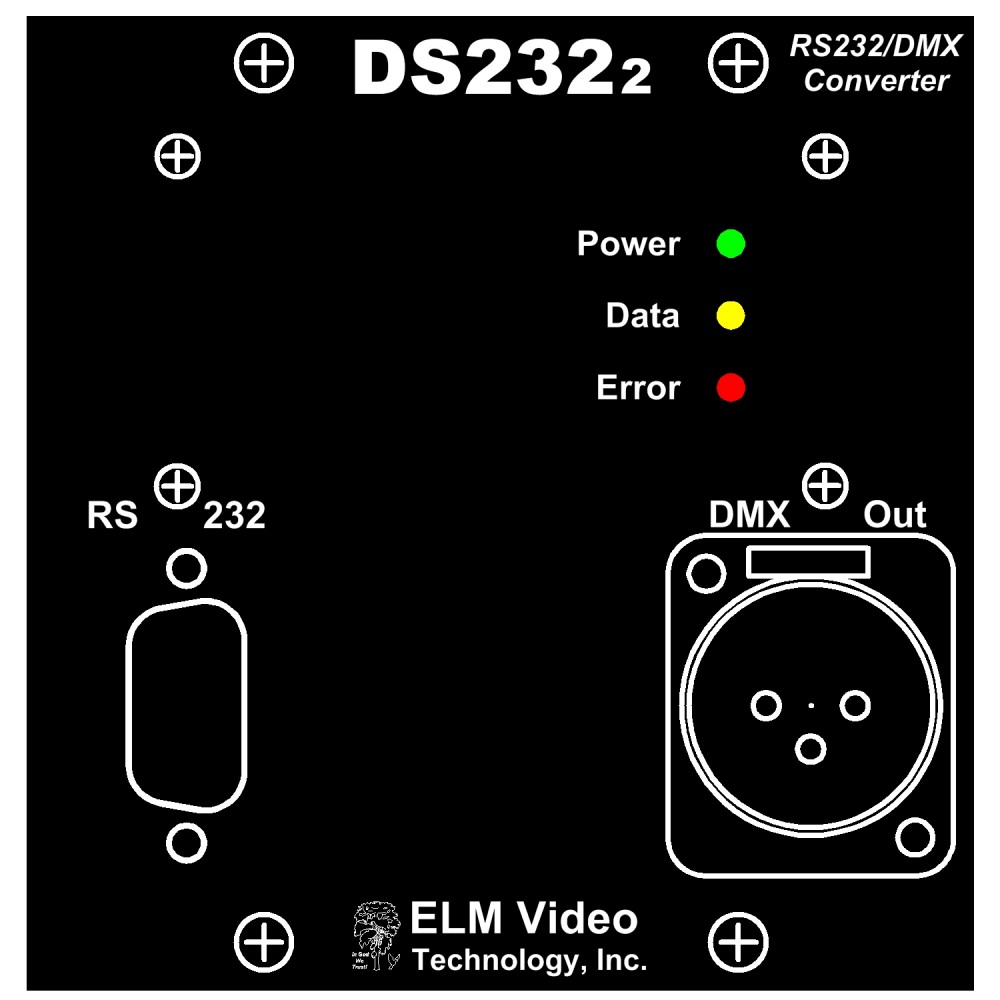

  • DS232-2 module is an RS232 to DMX converter controller that accepts an RS232 input and controls any DMX device. See the RS232 to DMX Converter page for product information.

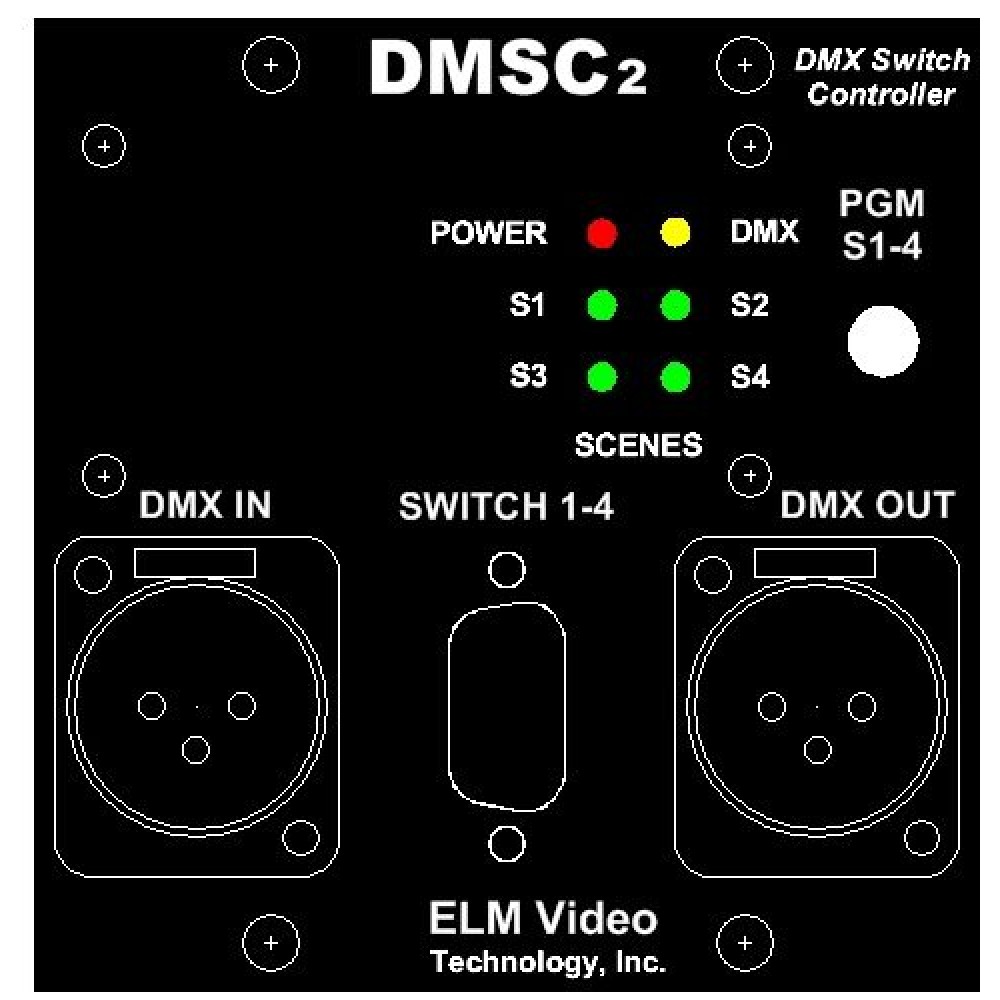

  • DMSC2 is a DMX wall switch scene controller in a 2RU module, with 4 switch inputs, DMX input and DMX output XLR connections. The input connectors, programming switch, and LED indicators are accessible on the front of the panel. Use as part of the DMX modular chassis enclosure or mount as needed. See the DMX Wall Switch Controller full description category page for more information.

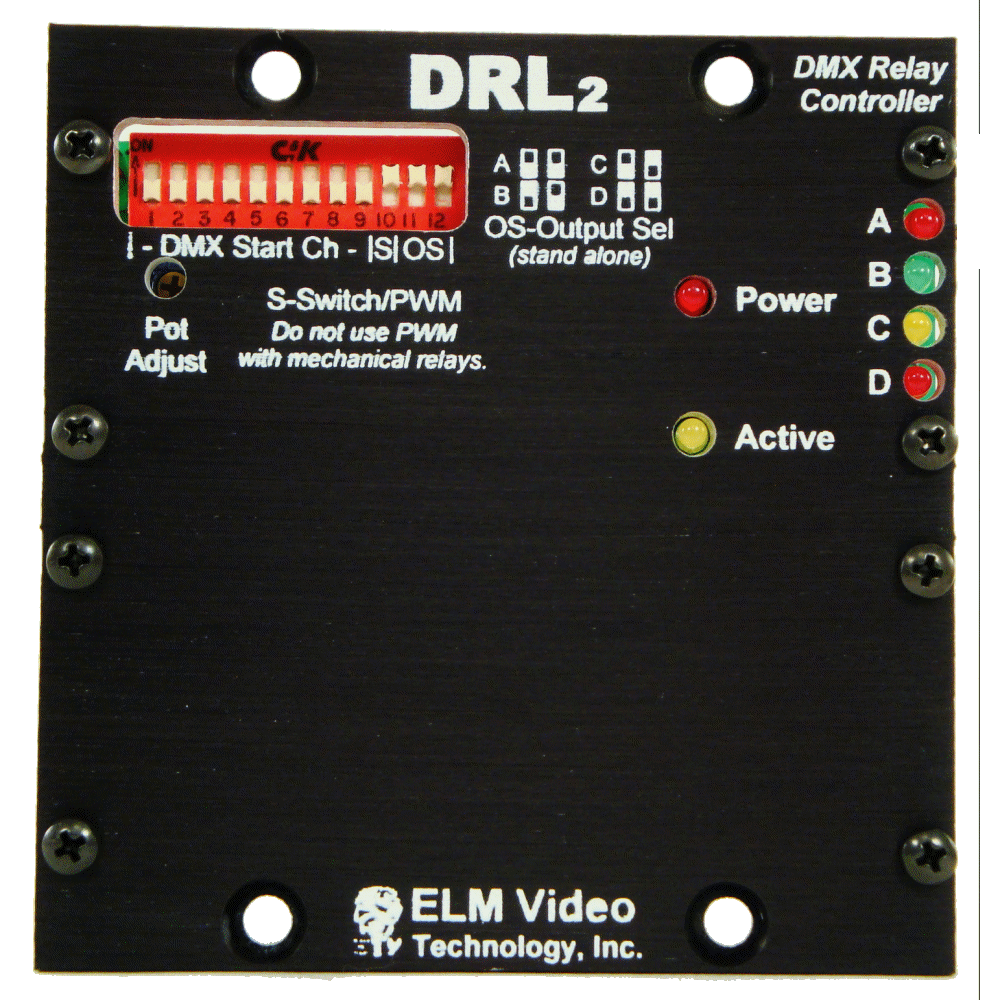

  • DRL2 module is a DMX 512 relay driver that will control 2 or 4 relays mechanical/coil or solid state (SSR) relays. See the RELAY DRIVER page for more information. A companion DAC I-O module is needed to provide relay output AC edison style plugs, or the DM6 module for low voltage I-O connections.

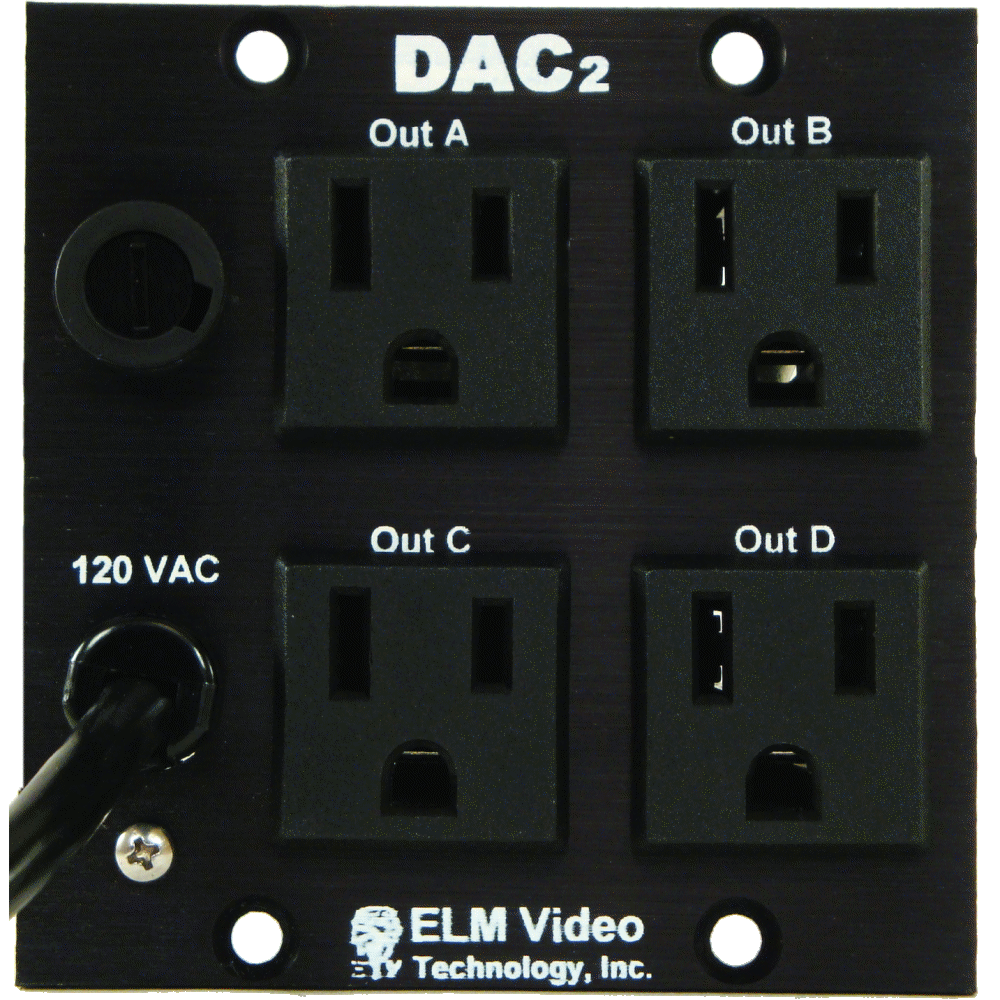

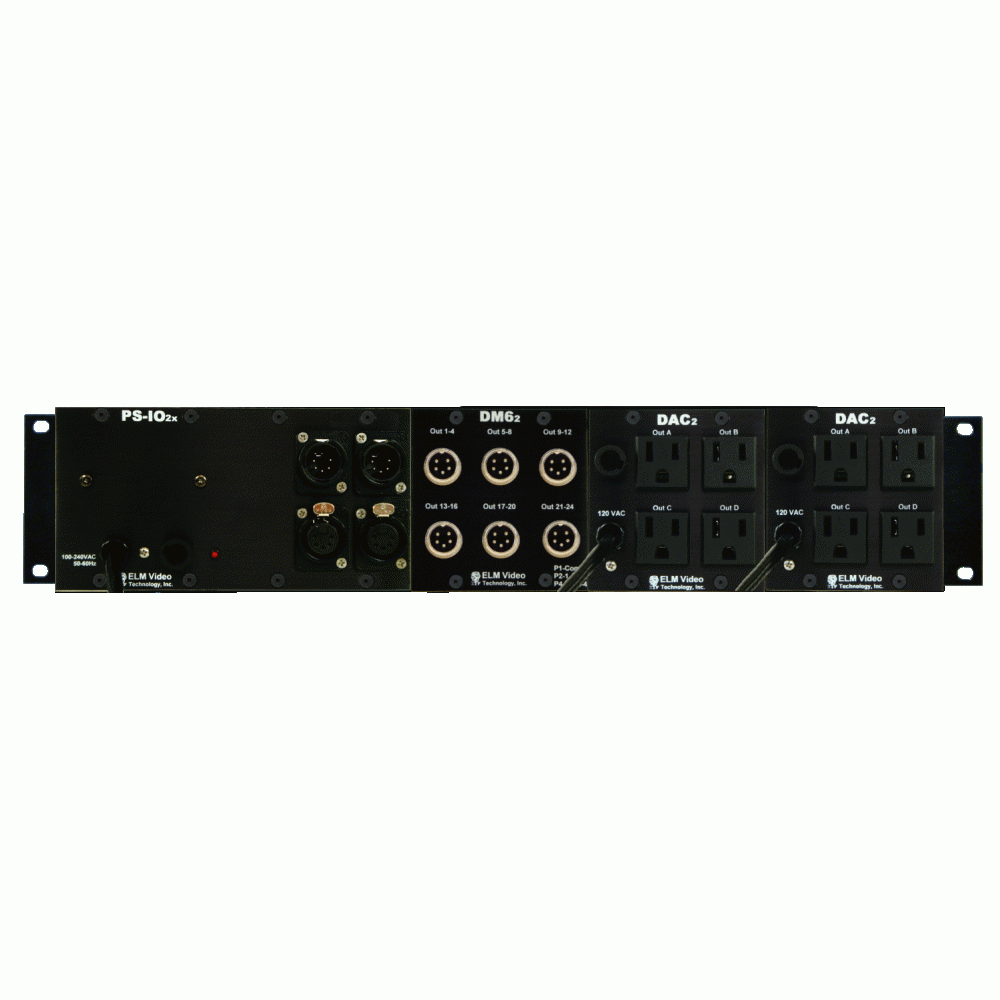

  • DAC2 is a 4 edison plug module and is the companion to the DRL2 module. Can be used to control florescent lights, switch equipment, water fountain / solenoids, etc. Contact closure or solid state (SSR) relays can be used to switch each plug output. Features (4) AC Edison plugs, fuse holder and fuse, and a 3 conductor AC cord.

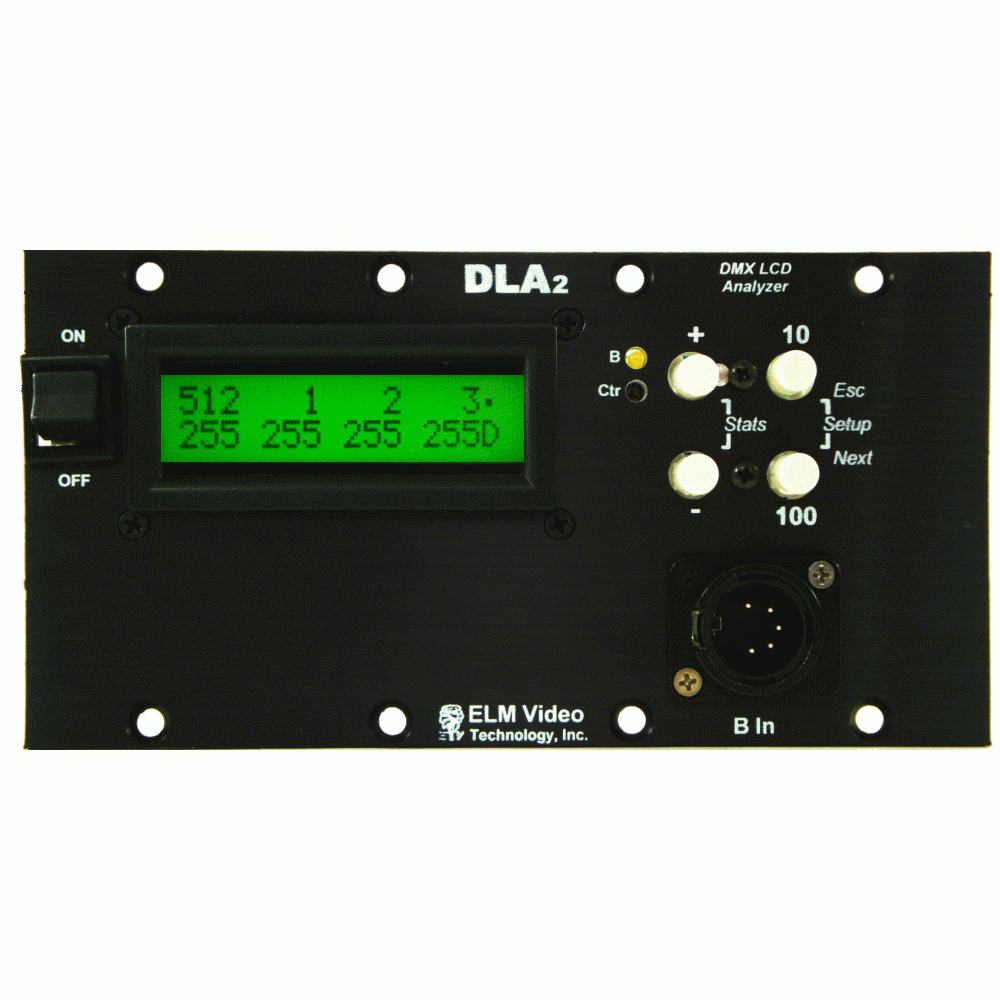

  • DLA2 is a DMX receive (only) dual input analyzer module.  See the DLA-HH page or users guide for more information.

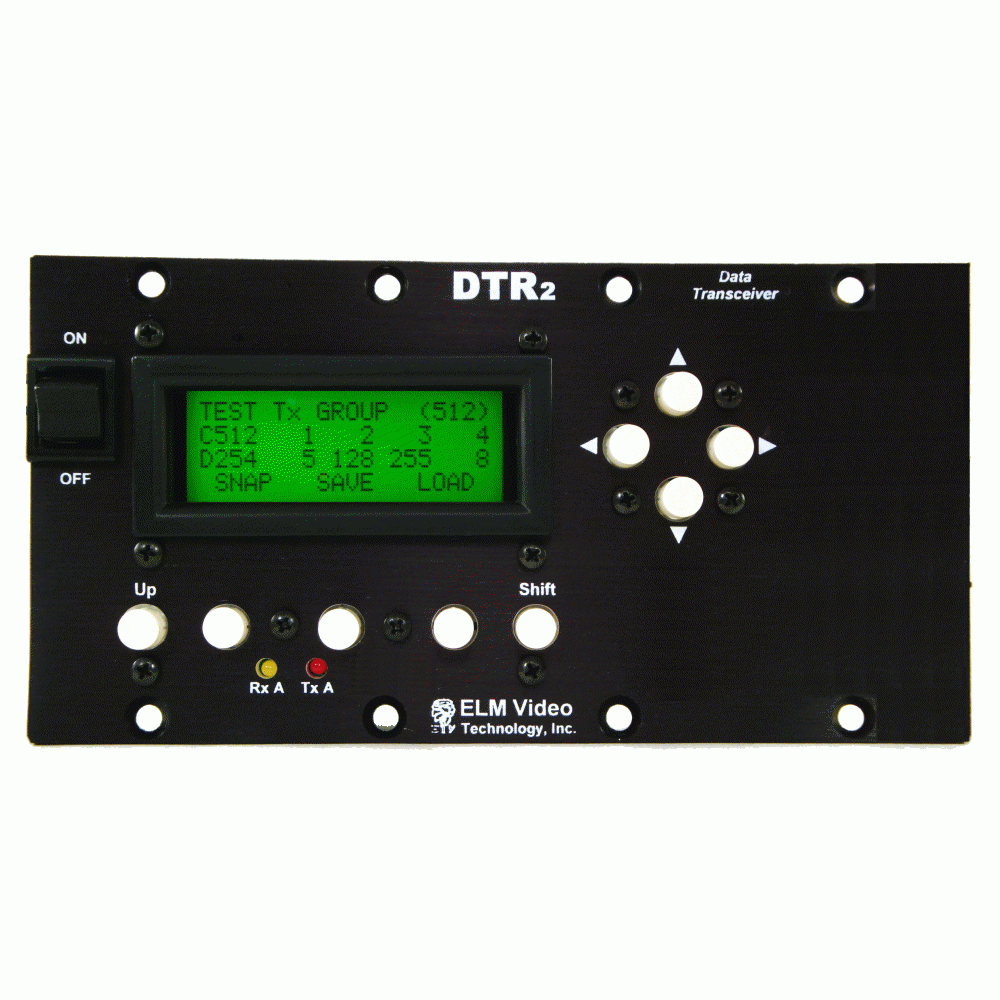

  • DTR2 Module is a DMX 512 data send / receive unit with 10 store and recall preset scene snapshots. Each of the 10 presets will store 512 channel levels including the packet size and start code. Each preset can be edited to precise values and recalled anytime.  See the DTR-HH page or users guide for more information.

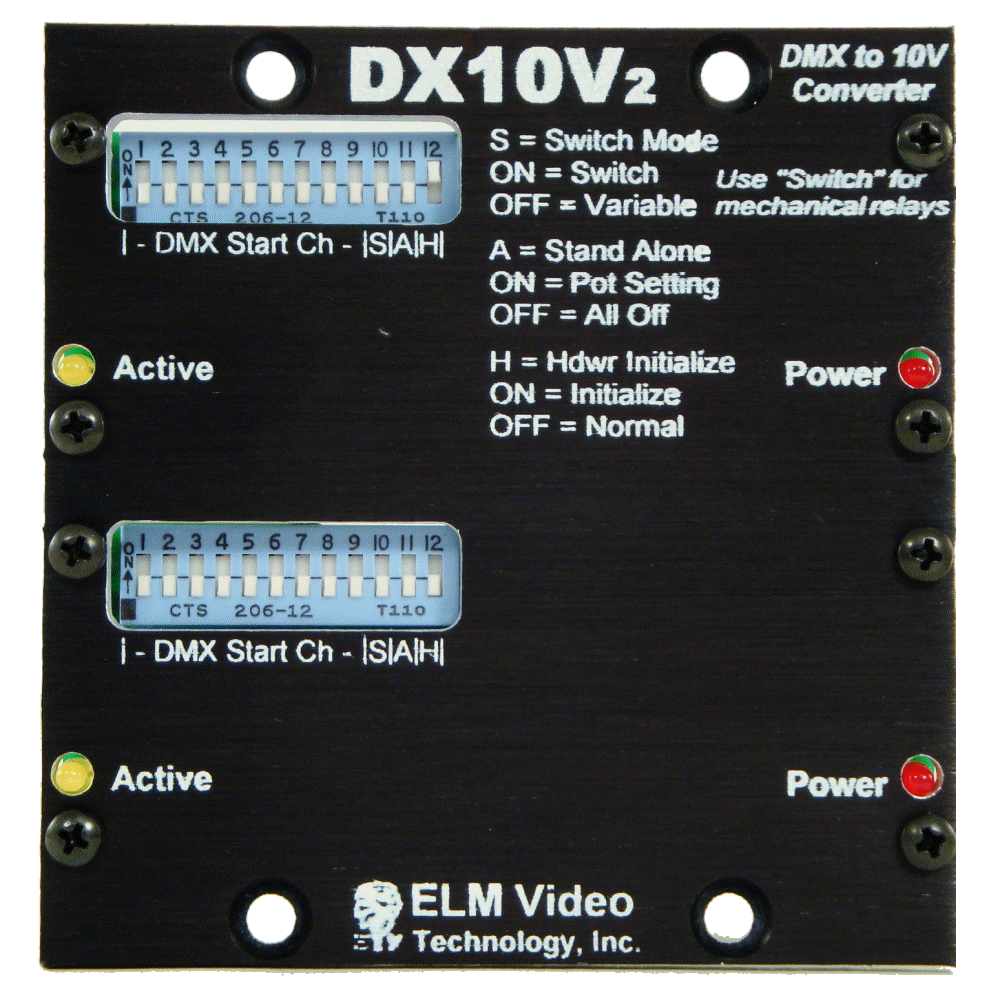

  • DX10V2 module can hold up to 2 PCB's, each having up to 16 outputs. Converts a DMX-512 input to a variable 0 to 10 volt analog output. Control 0-10 volt LED drivers or dimmers. Also has a 'switch' option for controlling solid state relay's (SSR). Each output can source up to 20mA and sink up to 10mA. See the optional DX6 module for 10 volt output connections. See the DX10V 0-10 volt full description category page for more information.

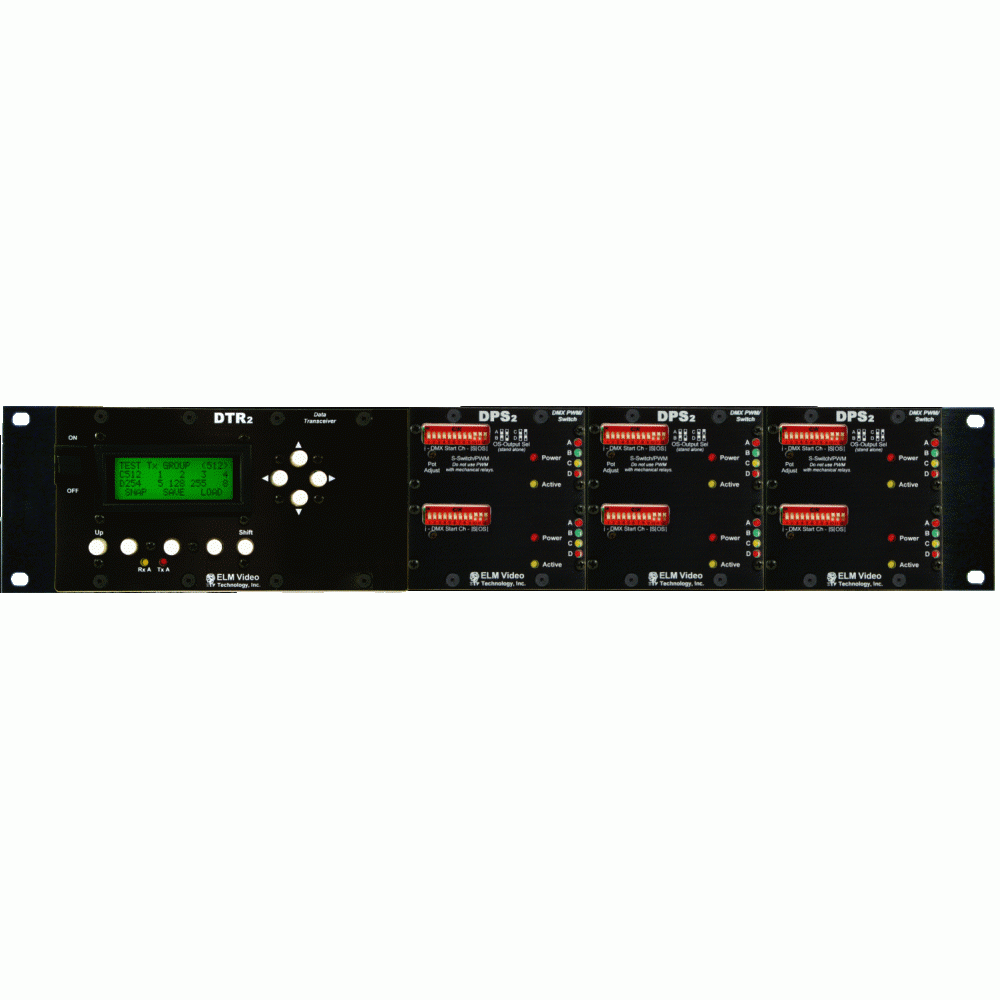

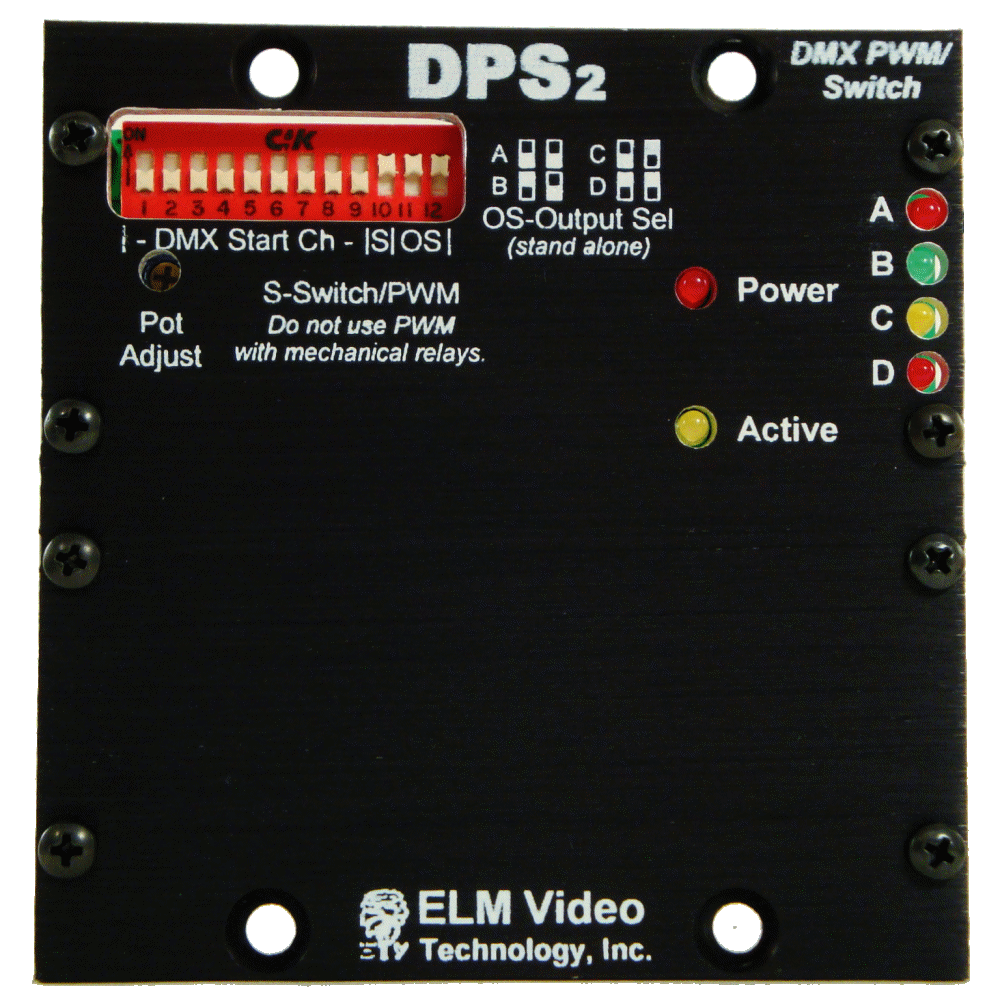

  • DPS2 module will hold 4 PCBs and can be manufactured with several configurations and  options, contact sales for any custom needs. Two additional drive PCBs can be added (assigned to the same 4 DMX channels) each adding 500mA per channel. 4 channel 8 bit OR 2 channel 16 bit PWM driver  module. Useful for driving LED's directly or could be used to control solid state relays (SSR). Power supply sold separately. See the PWM Switch Driver category page for more information.

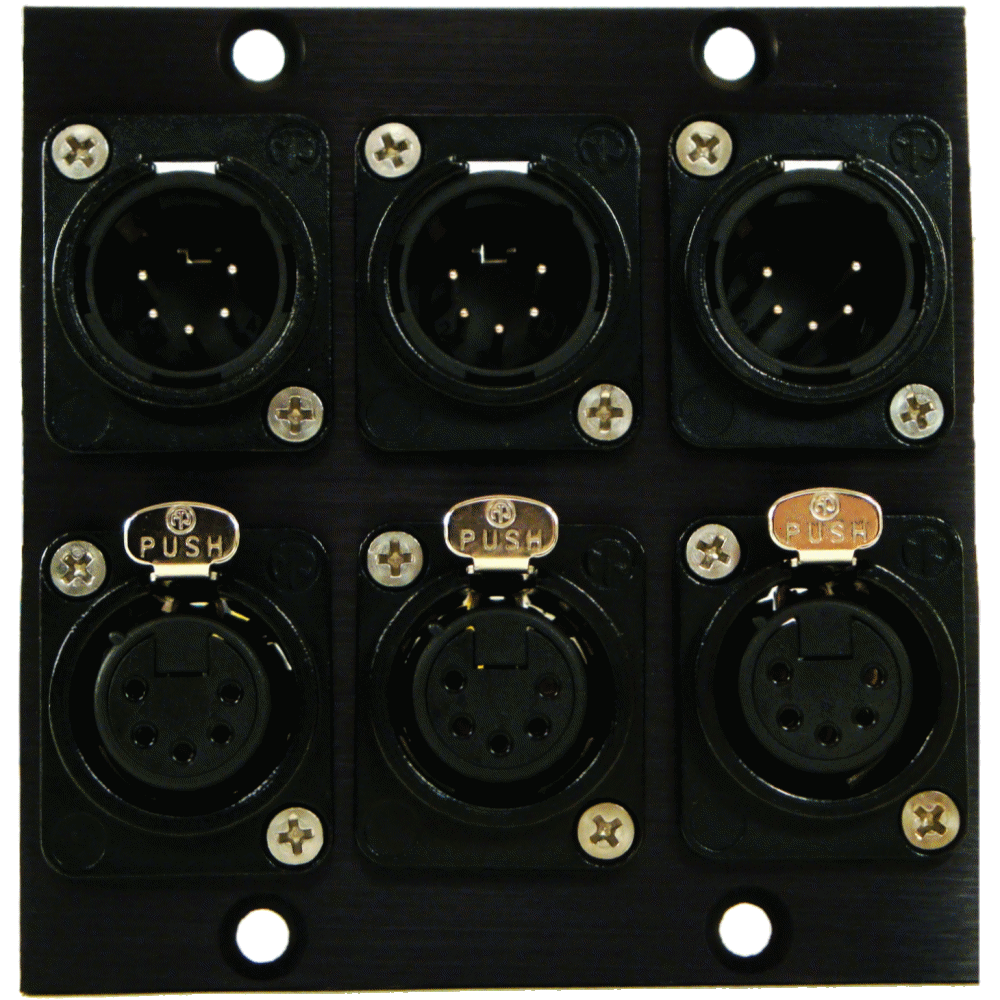

  • DX6 is a 6 XLR connector I-O module part of the 2RU (rack unit) DMX modular system. Optionally equipped with up to [6] 3 or 5 pin, male and/or female XLR connectors.

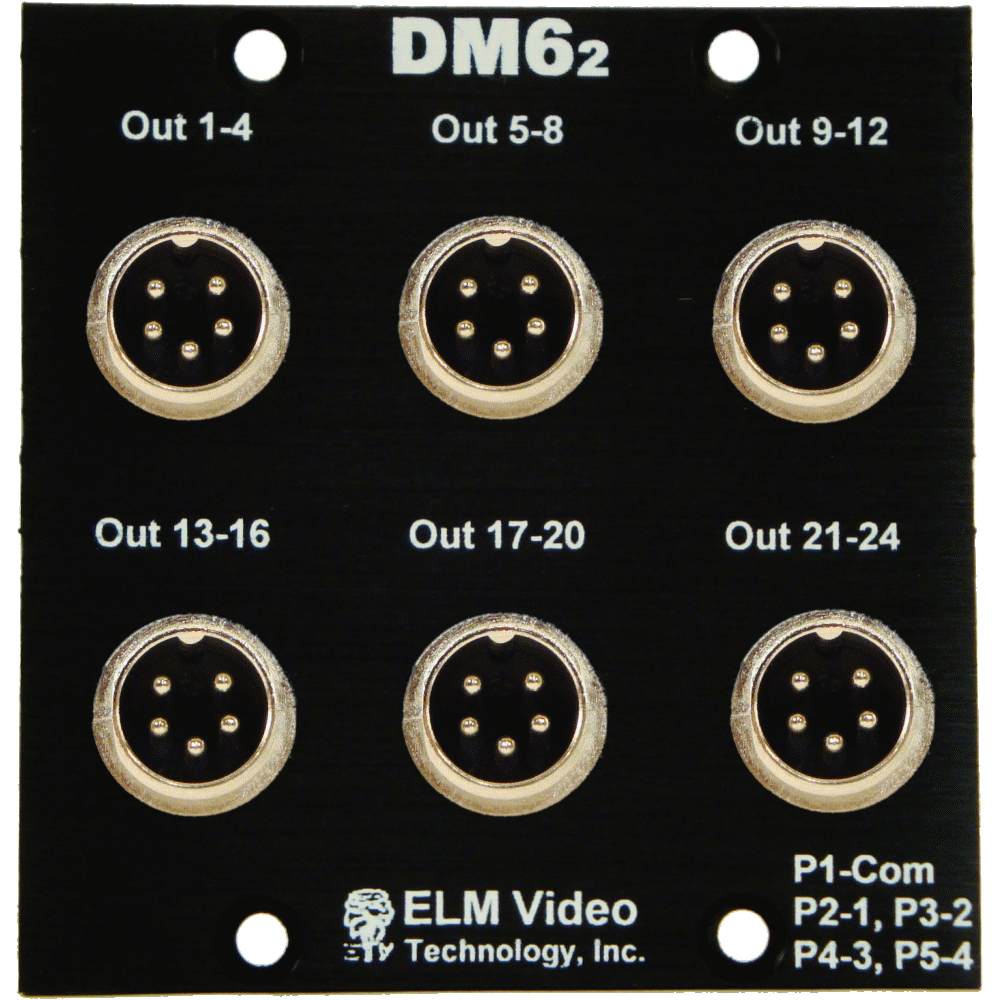

  • DM6 module is a multipurpose input and output interface with up to 6 male screw locking 5 pin connectors OR DB9 connectors (NOT SHOWN) (with mating cable end connectors), providing module interfacing such as the DX10V2 DMX to 0-10 volt converter. outputs.  For up to 36 Input/output connections.

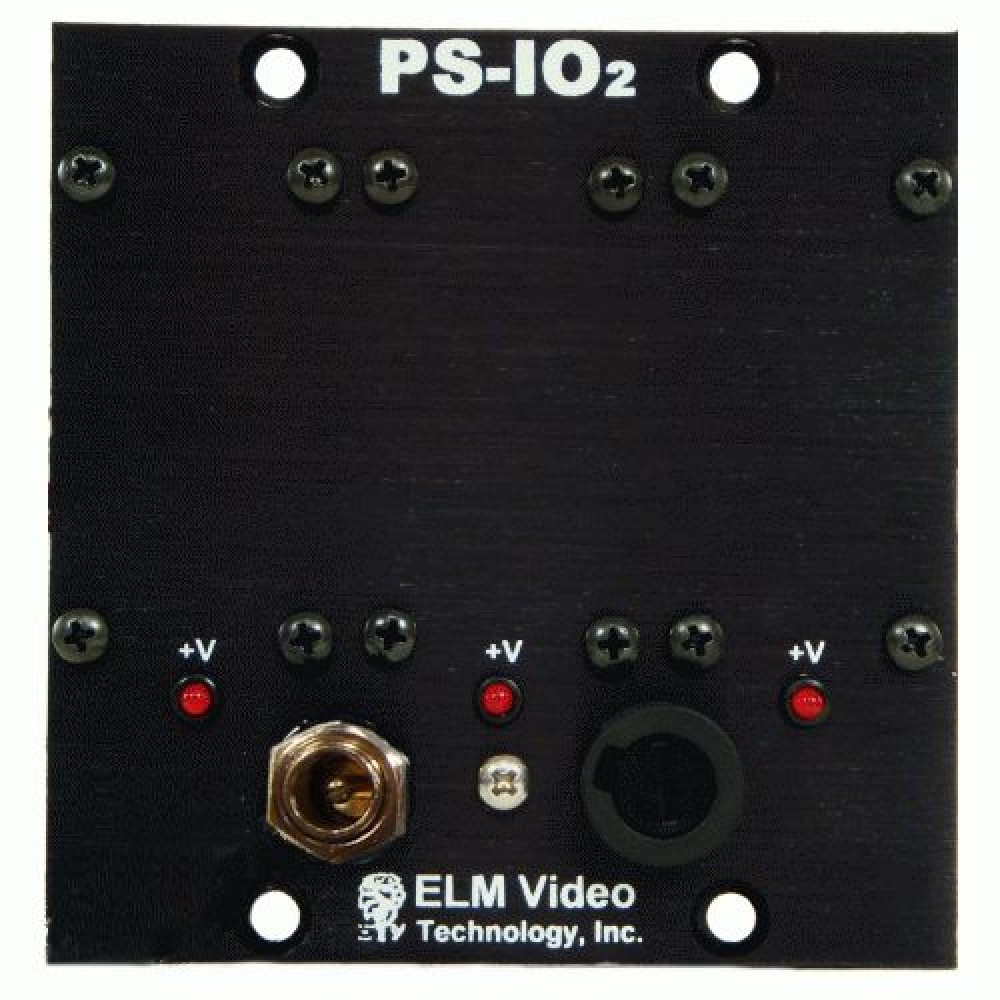

  • INCLUDED: PS-IO2 is a power input module for the 2 RU (rack unit) DMX modular chassis. Has a 5x20mm accessible fuse, and interfaces with the included 5V or 12Vwall style power supply for the installed modules within the chassis. Supply power is variable depending on the power supply and modules within the chassis' requirements.



Design Your Own Modular DMX Chassis

  • $269.00


Available Options
