• Brand: ELM Video Technology
  • Manufacturer: ELM Video Technology
  • Model: DLAr
  • UL Listings: Power supply
  • Humidity: Noncondensing
  • Non-Volatile Memory Writes: Minimum 100K, Typical 1M
  • Non-Volatile Memory Retention: Minimum 40 Yrs, Typical 100 Yrs
  • Dimensions: 19 x 8 x 1.75"
  • Data Input: DMX512 output 250 kHz, 5 and/or 3 pin female XLR [Pin 1 - NC, Pin 2 Data -, Pin 3 Data +]
  • Data Loop Output: DMX512 output 250 kHz, 5 and/or 3 pin female XLR [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +]
  • RDM: No
  • Weight Apx: 9 pounds
  • External Power Input: +5VDC
  • External FUSE: 1A 5x20 mm
  • Internal FUSE: 500mA 5x20 mm
  • Power Consumption:
  •         Apx 42mA back light=0
  •         73mA back light=5
  •         62mA back light=0 & B circuit installed
  •         140mA back light=25
  •         160mA back light=25 & B circuit installed
  • External Power Supply: +5VDC wall style
  •     Voltage Input: 100 ~ 132 (or 240) VAC
  •     Current Output (Min): 1 Amps
  •     Power (Min): 5 Watts
  •     Polarization: Positive Center
  •     Output Connector: Locking Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm

  • Equipped with 1 LCD analyzer (analyser), optionally add a 2nd analyzer
  • Front power switch optional - select to have a power switch installed
  • Equipped with 3 pin XLR connectors, optionally add 5 pin XLR connectors


DMX Analyzer (Portable Hand Held Unit) Demonstrated

The DLA is a DMX receive (only) analyzer in a 1 RU rack mount enclosure. Equipped with 1 analyzer (analyser), optionally add a 2nd analyzer to view two separate universes at once or view the same universe with different screens for additional information. Includes 5V power supply. See the DLA-HH page and users guide for more information. Note: Non RDM.

FEATURES INCLUDE:

  • Bar Graph Display (Displays 24 Channels at a Time)
  • Decimal Display
  • Hexadecimal Display
  • Percentage Display
  • Statistics Display
  • Auto Dim Feature (User Set Timer)
  • Dual Input Option

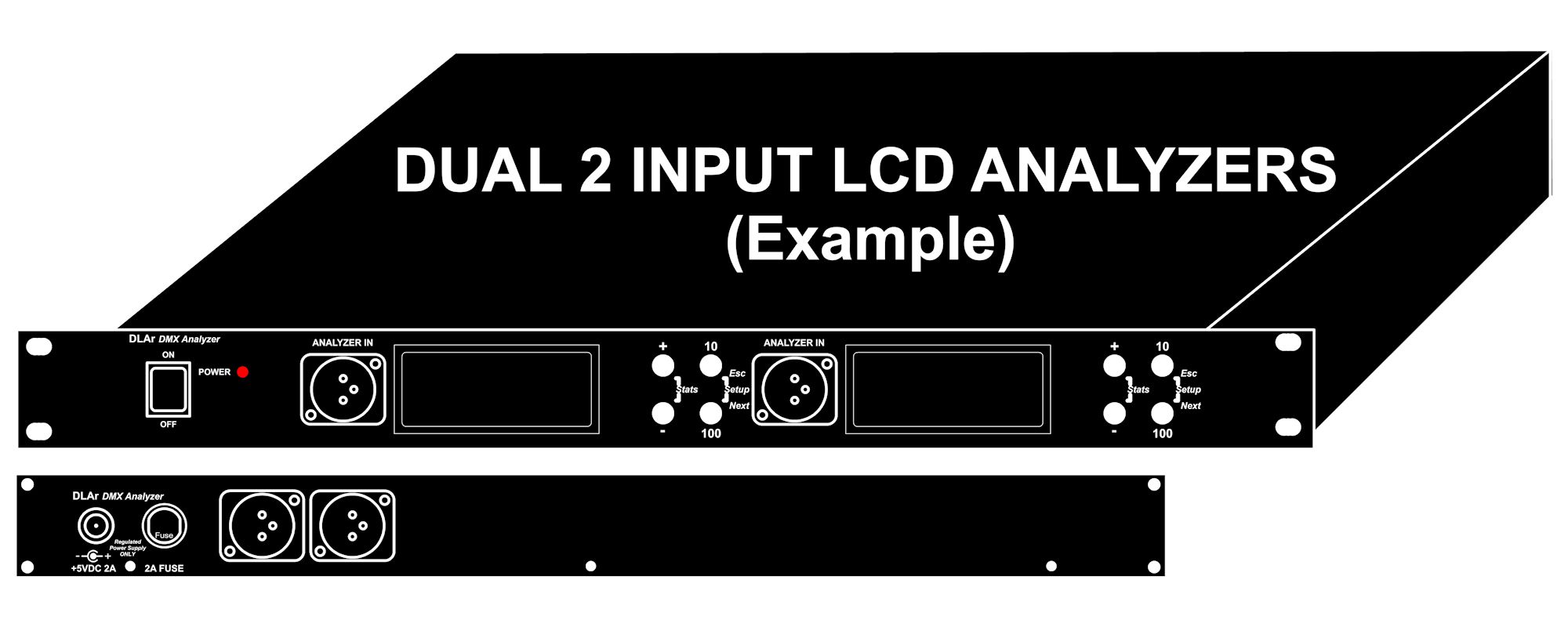

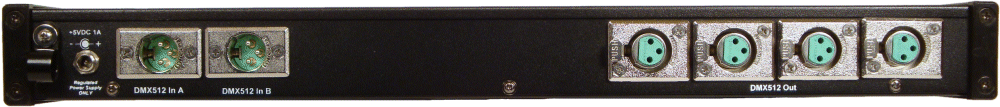

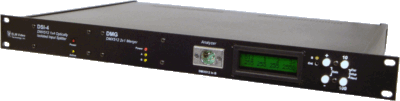

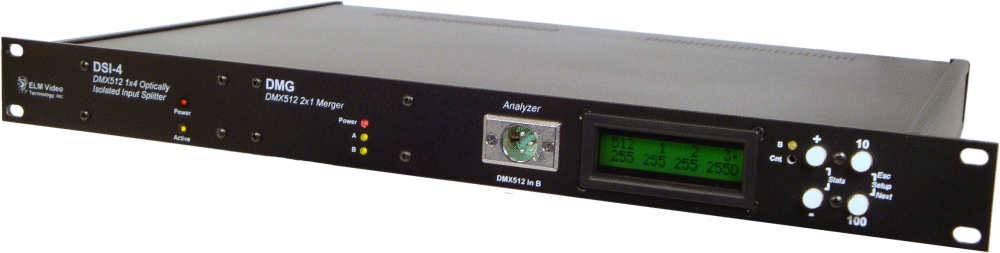

Product drawing and example photos shown. Call or email sales today!



DMX Analyzer LCD 1RU Rack Mount

  • $649.00


Available Options
