  • DMX CONTROL WARNING: NEVER use DMX data devices where human safety must be maintained.
  • NEVER use DMX data devices for pyrotechnics or similar controls.
  • Manufacturer: ELM Video Technology
  • MPN: DCRD-PCB
  • UL Listings: PCB pre populated
  • DMX Data: 250 kHz
  • Voltage Input: Regulated +12VDC or +5VDC – Factory Set
  • Current Input: 120mA (apx)
  • Data Input: DMX512, [Pin 2 Data -, Pin 3 Data +]
  • Data Output: DMX512,  [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +]
  • RDM: No
  • Dimensions: 2" W x 1.5" L x .95" H (top of tact switches)
  • PCB Fuse: SMT - 500mA
  • Standoff Height: .25" (7 Segment display mounts flush to surface)
  • Button Height above standoff: .3"



  • DCRD Voltage Input  Selection: Select the input voltage needed for installation, this is a factory set option
  • +5VDC or +12VDC power supply

Switch Types

  • Up/Down Switch Screw Terminals, No On Board Switches: Instead of UP/DOWN switches installed on the PCB, a 3 pin screw terminal will be mounted on the bottom of the PCB (Ground, Up, Down connections) for access to customer supplied/installed switches. Recommended for industrial and outdoor fixtures or devices that require a more robust switch.
  • Small Tact Switches: small switches installed on the PCB with .25" height standoffs and spacing (see documentations tab for dimensions)
  • Large Switches: Larger and more robust switches installed on the PCB with .5" height standoffs and spacing (see documentations tab for dimensions)

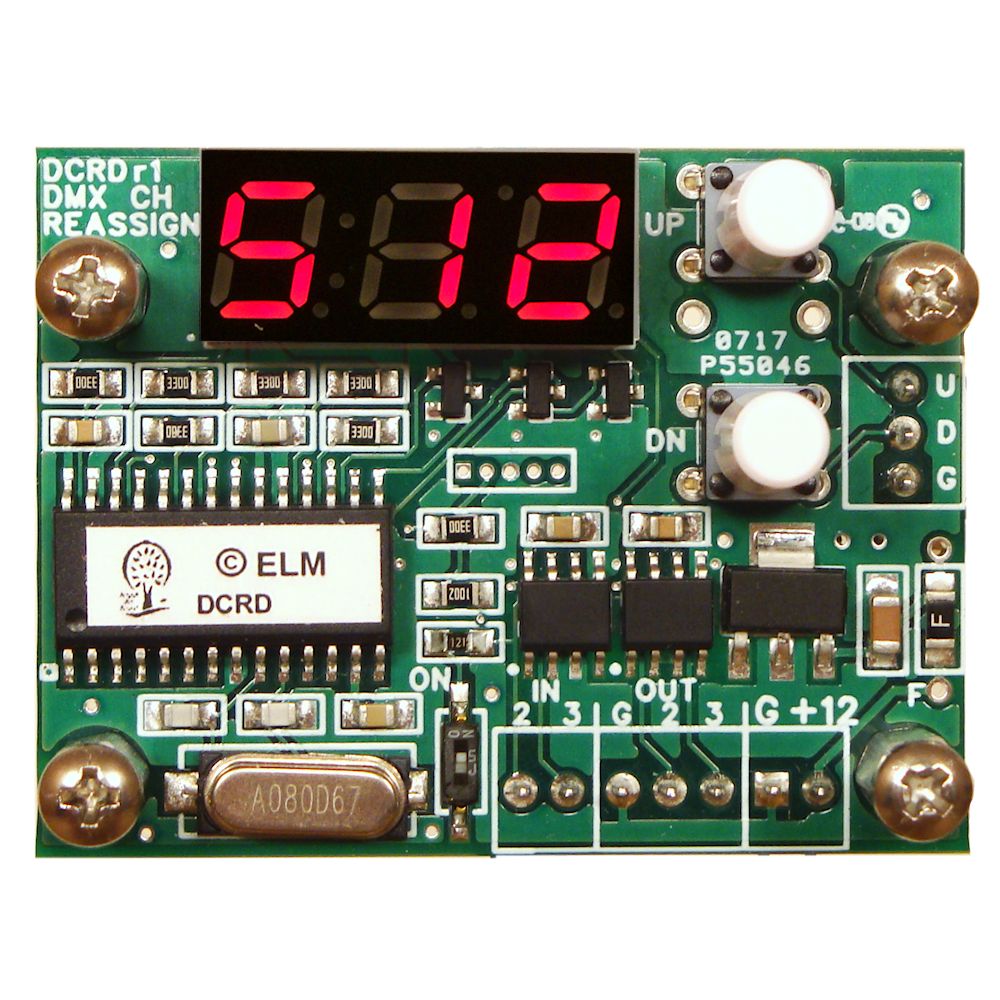

The DCRD-PCB is a DMX input channel reassignment (re-addresser) module. Readdresses the DMX start channel of a fixture or device that either has a hard to set dip switch, or doesn't have a user settable DMX channel. Designed to mount inside a DMX device (custom cutouts needed for external access). Simply loop the DMX input data through the DCRD module, set the device to channel 1 (if available to do so), apply power, set the channel via the up/down switches and operate as normal. To add to cart select the Voltage Input Selection.


FEATURES:

  • Engineered with quality parts and a reliable design
  • Assign the DMX start address channel to any of the 512 channels to any DMX device
  • Optional 5V or 12VDC power option (factory set)
  • Screw terminals installed for easy connection
  • Optional off board screw terminal connections for external up/down switch installation (recommended for industrial or outdoor DMX equipment where a more robust switch is needed)
  • Set DMX Loss Directive to either set the DMX output levels (fixture brightness) or turn off the DMX
  • Dimmable display


PCB INCLUDES:

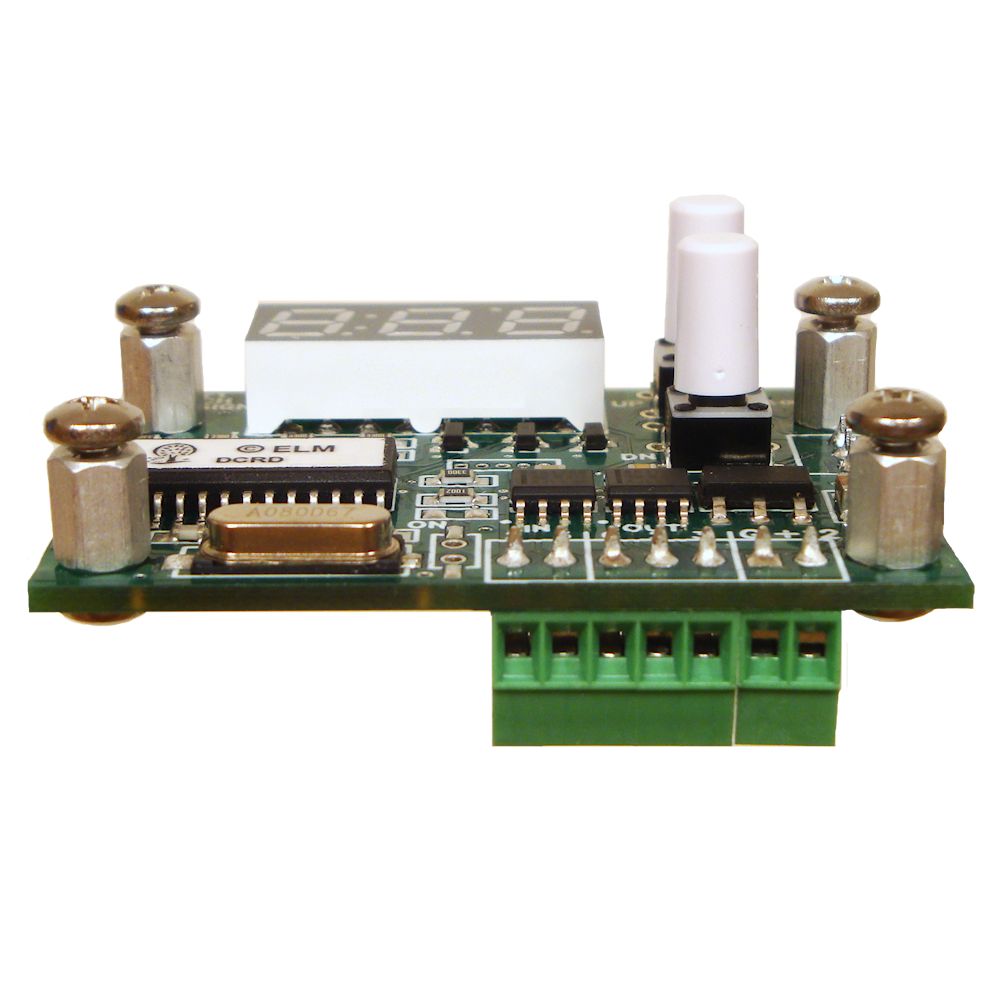

  • Pre assembled PCB (Printed Circuit Board) with (4) standoffs as shown in photos

DMX Channel Reassign Display Module

  • $99.00


  • 5 or more $94.00
  • 10 or more $89.00
  • 50 or more $84.00
  • 100 or more $79.00

Available Options
