IF RDM CIRCUIT IS SELECTED:

Please note: DSR V1.01 hardware & firmware is a beta release with limited field test data

Manufacturer: ELM Video Technology
Name: DMX Splitter / Booster / Amp
Description: Creates 9 DMX outputs from a single output of any DMX generating device.
MPN/Model: DSP9-R
Certifications: Power Supply either UL Listed or ETL, PCB UL Listed - pre populated

CHASSIS: Anodized Aluminum .093" thick RoHS compliant.
DATA TYPE: DMX512 (250Khz)

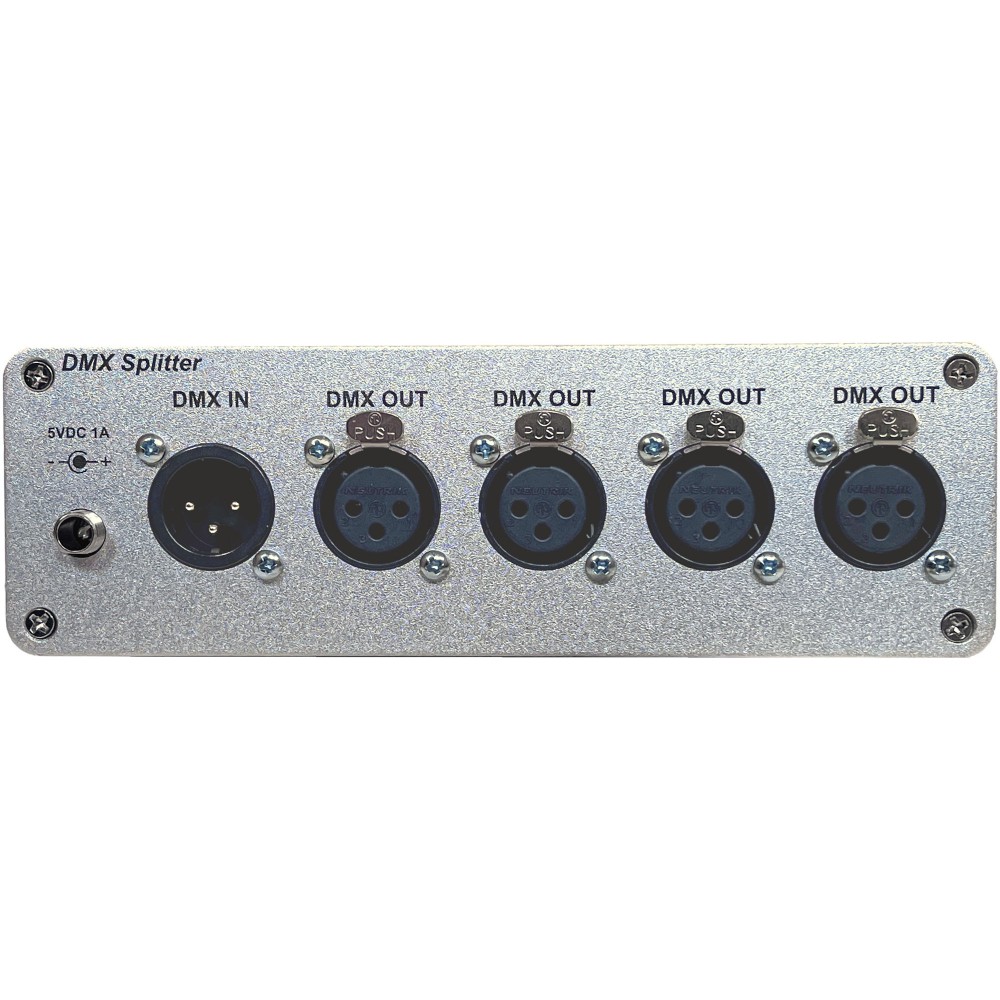

DATA INPUT: DMX512 - 5 (or 3) pin male XLR, [Pin 1 - (Shield) Not connected, Pin 2 Data - , Pin 3 Data +]
DATA OUTPUT: 9 separate DMX512 outputs - 5 (or 3) pin female XLR's, [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +]
RDM: Optional RDM Pass Through
Dimensions: 3.7 x 6.7 x 2.1 inches
Weight: 2 pounds
Power Consumption: Apx 600mA with 9 outputs sourcing 32 loads each
Internal PCB FUSE: 1000mA SMT
External Power Supply: +5VDC wall mount
Voltage Input: 100 ~ 132 (or 240) VAC
Current Output (Max): 1 Amp
Polarization: Positive Center
Output Connector: Locking Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm

RDM: Select RDM for RDM pass through functionality (Beta Release) with a front bypass switch, or select standard for a 1x9 non RDM
3 or 5 Pin XLR or ethercon connectors
Chipset upgrade - The chipset upgrade has TVS IC's installed on the outputs offering TVS (Transient Voltage Suppressed) isolation on each output of the splitter.
Mounting flanges - allows the unit to be counter top, under counter, or wall mounted

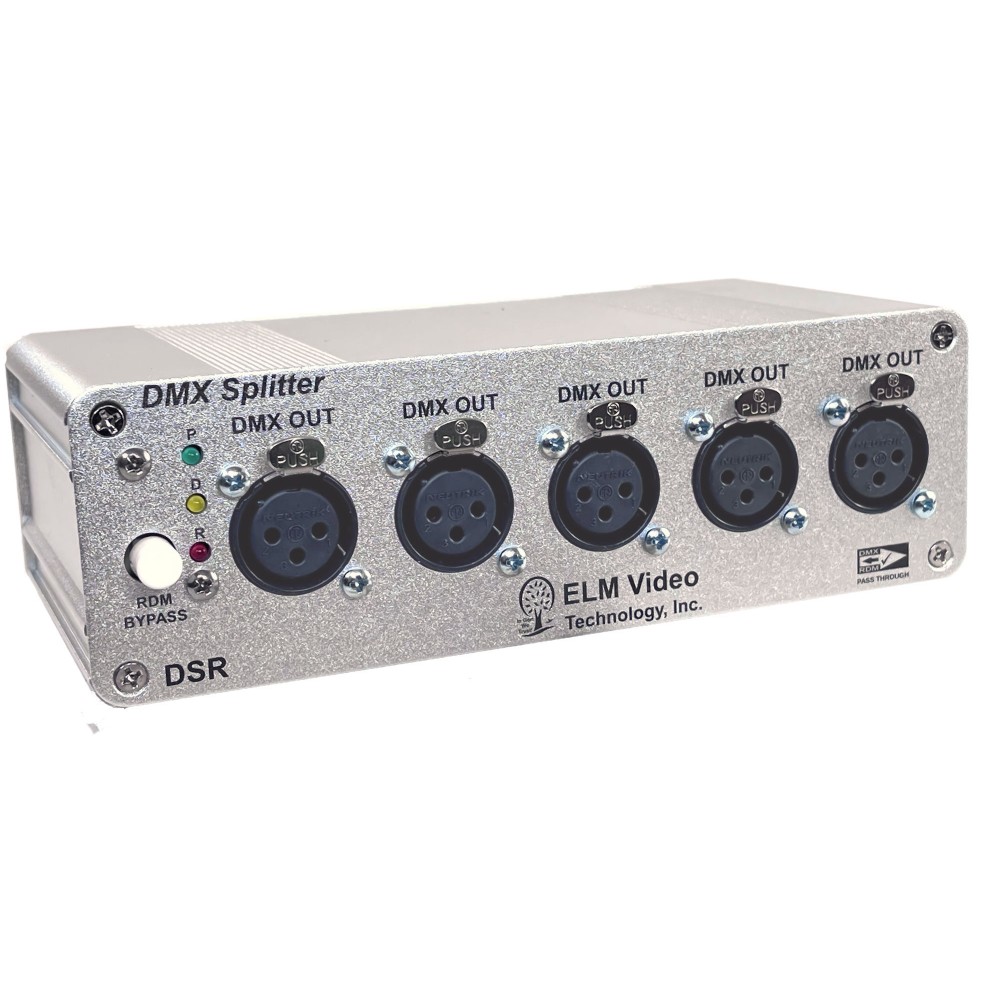

The DSP9-R is a DMX 1 in 9 out splitter full isolated (transformer) input with optional RDM pass through. Front indicators show the unit power and data status including RDM (if selected). Our DMX Splitter (distributor, buffer, amplifier, booster) actively splits the DMX signal providing 9 separate DMX outputs. The DSP9-R outputs are electronically isolated from each other and each output can source up to 32 devices (DMX512 standard). For improved output isolation select the chipset upgrade for TVS "Transient Voltage Suppression" chips installed (recommended if the DMX wiring is near power lines and/or used outdoors). Power supply included.
