• DMX CONTROL WARNING: NEVER use DMX data devices where human safety must be maintained.
  • NEVER use DMX data devices for pyrotechnics or similar controls.
  • Brand: ELM Video Technology
  • Manufacturer: ELM Video Technology
  • Model: DLA-HH
  • UL Listings: Power supply
  • Description: DMX  Analyzer in a portable hand held enclosure
  • Humidity: Noncondensing
  • Non-Volatile Memory Writes: Minimum 100K, Typical 1M
  • Non-Volatile Memory Retention: Minimum 40 Yrs, Typical 100 Yrs
  • RDM: No
  • Chassis: Plastic, Polyamide
  • Color: Gray
  • Data Output: DMX512 output 250 kHz, 5 and/or 3 pin female XLR [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +]
  • RDM: No
  • Weight: 1 pounds
  • Batteries: 6 AA
  • External Power Input: +9VDC
  • Power Connector: 5.5 x 2.1 x 9.5 center positive connector
  •  Internal FUSE: .7 ~ 1 Amp Fast Acting 5 X 20 mm
  • Size: 8.661" L x 4.567" W x 2.008"  (220.00mm x 116.00mm x 51mm)
  • POWER:
  •          Apx 42mA back light=0
  •          73mA back light=5
  •         140mA back light=25
  • External Power Supply (Optional) : +9VDC Wall Mount
  •     Voltage - Input 100 ~ 240 VAC
  •     Current - Output (Max): 1A
  •     Power (Watts): 9W
  •     Polarization: Positive Center
  •     Output Connector: Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm






  • 5 pin XLR connectors
  • 9VDC power supply



DMX Analyzer

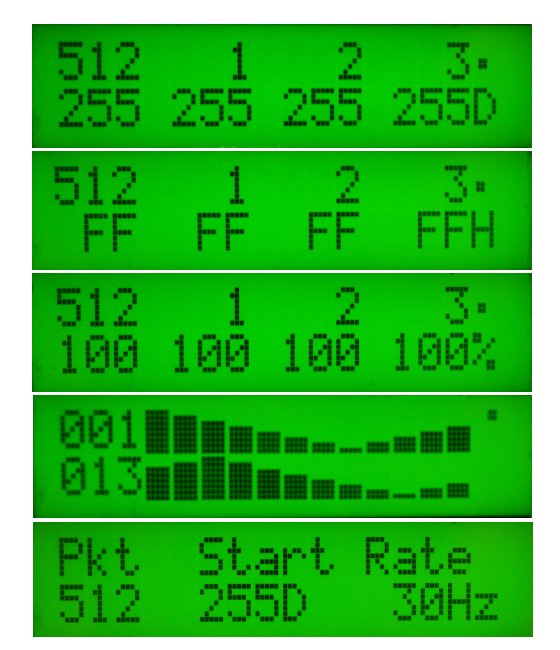

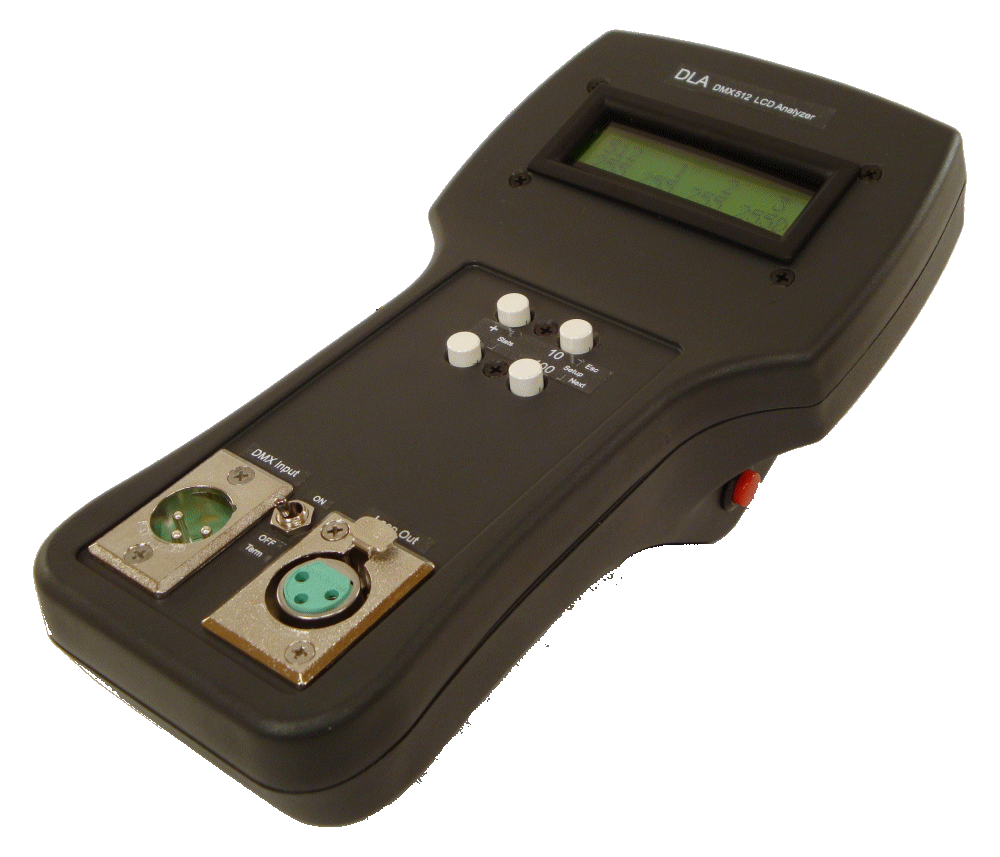

DLA-HH - Portable DMX 512 LCD (receive only) Analyzer (analyser) is a hand held DMX display. This sleek ergonomic enclosure allows for easy portability, and with the angled display and flat bottom, it can be used on a counter top just as easily. Designed with 'Auto Dim' and Auto Off' features that the user can set timers for each.  The 16x2  back lit LCD easily displays any 4 of 512 channels at a time, and displays the levels currently on those channels in either; decimal (0-255), hexadecimal (00-FF), percentages (0-100%), or bar graph (displays 24 channels at a  time) allowing the user to scroll to any channel and monitor the levels. The 4 buttons [ +,  - , 10, 100 ] will scroll thru the DMX channels for viewing, by holding down the ' - ' button and pressing 10 or 100 will subtract by 10 or 100. The Stats display shows the packet size, start code, and rate (or frequency).  The LCD's backlight is easily adjusted with front access software setting for easy changes in those dark control room environments. The auto dim feature allows the user to set the time and dim to value, useful while using battery power. Note: Non RDM.

Requires 6 AA Battery's (not included)

Optional +9VDC Power supply with a 5.5 x 2.1 x 9.5 center positive connector

FEATURES INCLUDE:

  • Bar Graph Display (Displays 24 Channels at a Time)
  • Decimal Display
  • Hexadecimal Display
  • Percentage Display
  • Statistics Display
  • Auto Dim (User Set Timer)
  • Auto Off (User Set Timer)
