• Brand: ELM Video Technology
  • Manufacturer: ELM Video Technology
  • Model: DLA-PCB
  • Description: DMX  Analyzer
  • Humidity: Noncondensing
  • Non-Volatile Memory Writes: Minimum 100K, Typical 1M
  • Non-Volatile Memory Retention: Minimum 40 Yrs, Typical 100 Yrs
  • Data Output: DMX512 output 250 kHz, [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +]
  • RDM: No
  • Weight: .25 pounds
  • External Power Input: +5VDC or +7~9VDC
  • Power Connector Optional: 5.5 x 2.1 x 9.5 center positive connector
  •  PCB FUSE: .7 ~ 1 Amp Fast Acting 5 X 20 mm
  • Size: 5.02" x 1.75" x 1.6" / LCD Dimensions: 2.8" x 1"
  • POWER:
  •          Apx 42mA back light=0
  •          73mA back light=5
  •         62mA back light=0 & B circuit installed
  •         140mA back light=25
  •         160mA back light=25 & B circuit installed



  • Screw Terminals
  • 5V Power Supply
  • 9V Power Supply
  • Power Connector
  • Enclosure Labels: black on white, black on clear, white on clear or download ENCLOSURE LABELS



DMX Analyzer (Portable Hand Held Unit) Demonstrated

The DLA is a DMX receive (only) dual input analyzer PCB.  See the DLA-HH page or users guide for more information.

FEATURES INCLUDE:

  • Bar Graph Display (Displays 24 Channels at a Time)
  • Decimal Display
  • Hexadecimal Display
  • Percentage Display
  • Statistics Display
  • Auto Dim (User Set Timer)
  • Dual Input Option
  • Optional "Auto Off", "Low Battery" Features (requires an additional pcb, see below)

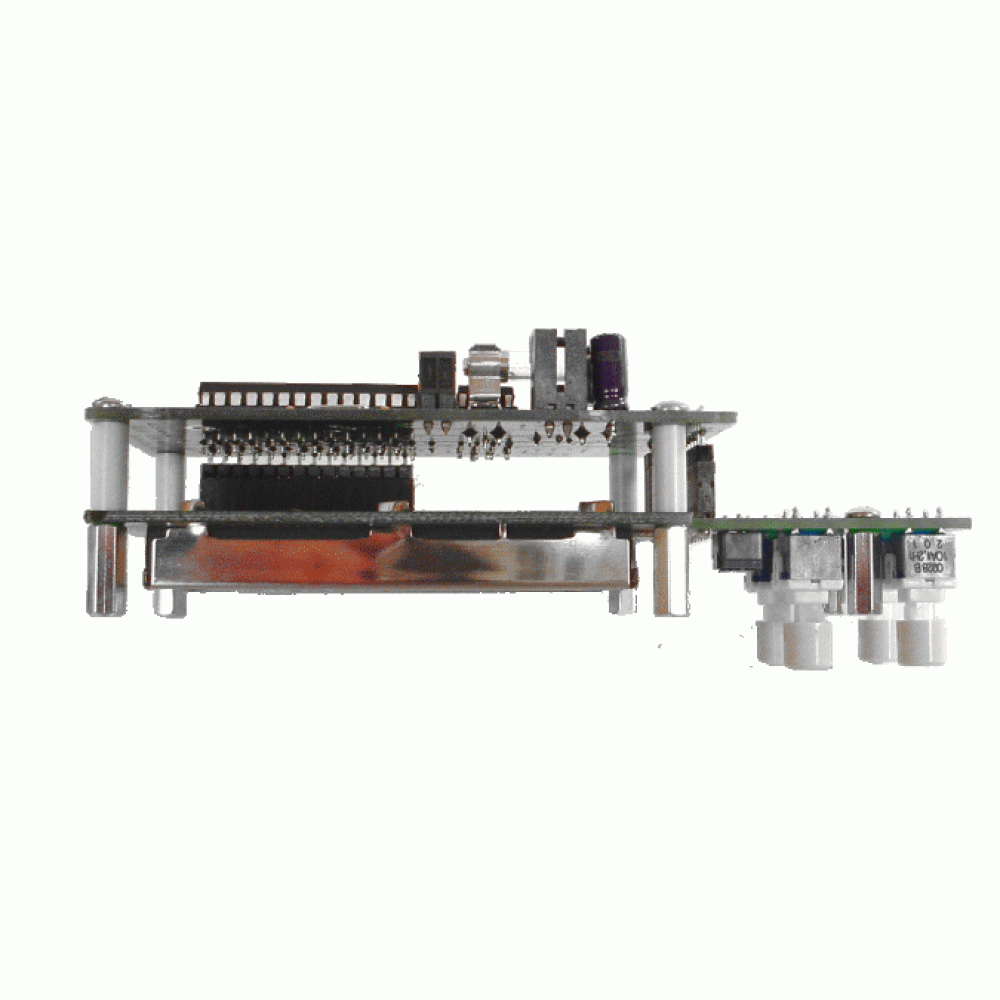

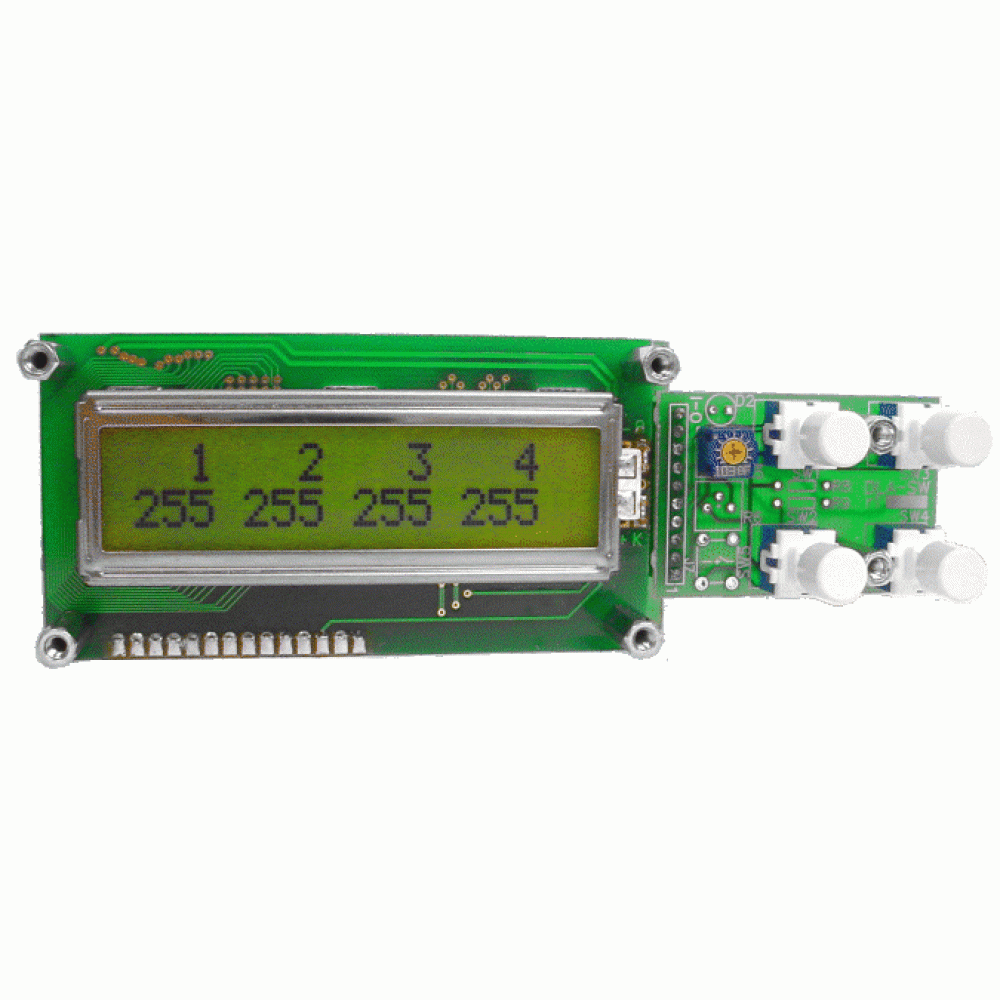

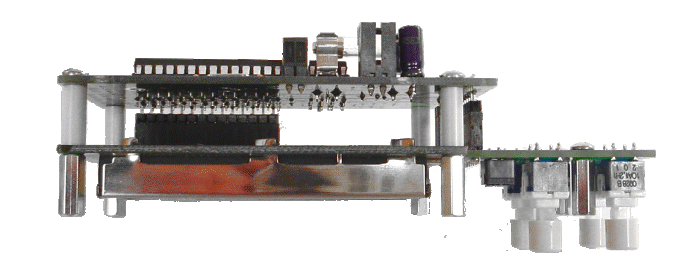

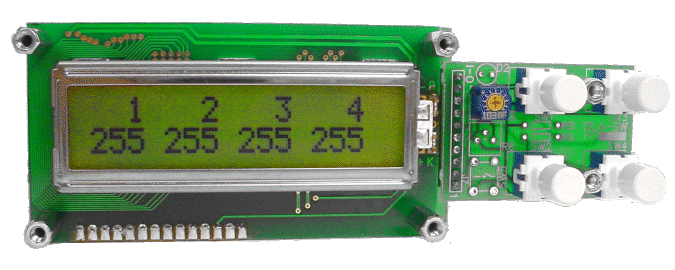

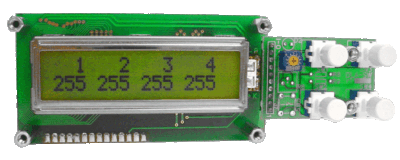

The fully assembled PCB (printed circuit board) assembly consists of 3 boards; the 16 x 2 back lit display, detachable 4 button and contrast board, and the control board (see the side view image). The PCB includes a clear LCD cover that mounts with adhesive strips on your custom enclosure. +5VDC input or with the onboard +5V regulator, the DLA has a +7V ~ +15VDC input voltage range.  Note: Non RDM.

DLA PCB INCLUDES:

  • Preassembled DLA PCBs (Printed Circuit Board) Assembly with (6) .5" standoffs and screws
  • The PCB assembly consists of 3 boards, 16 x 2 LCD, control board, and a detachable 4 button and contrast board.

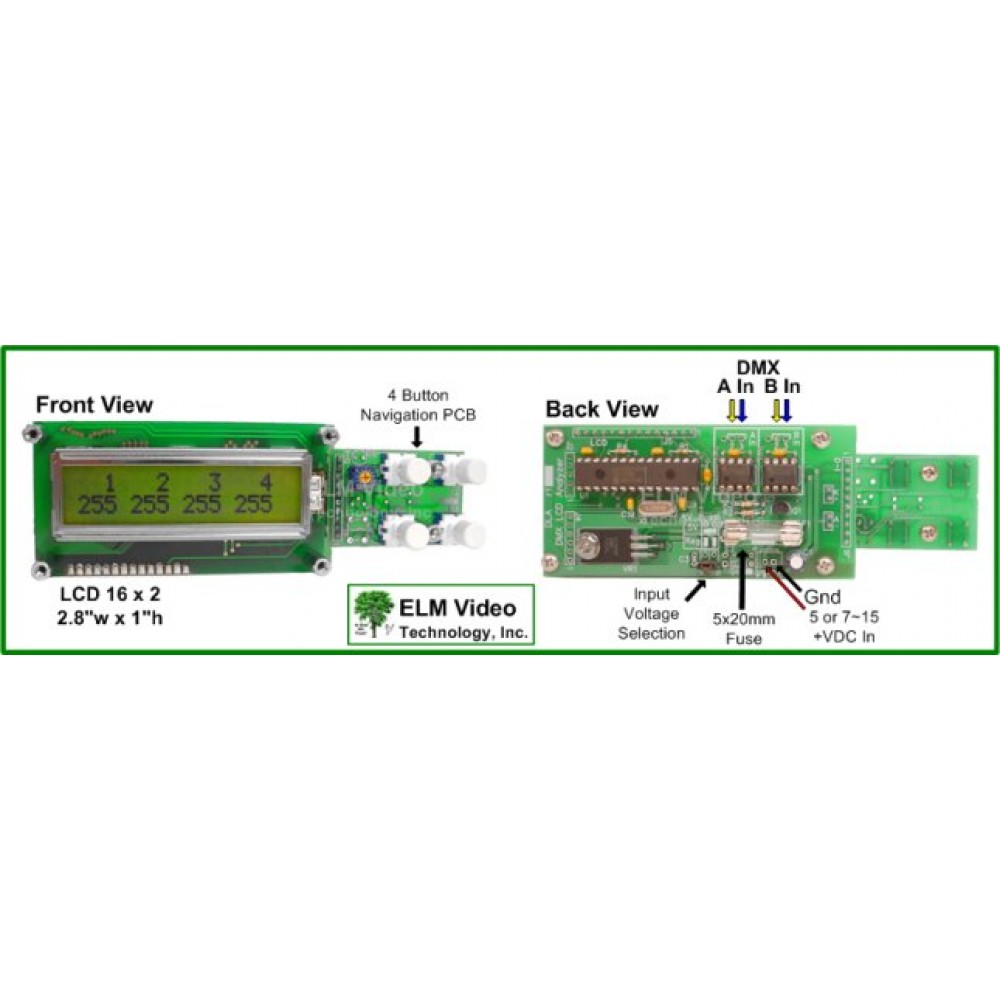

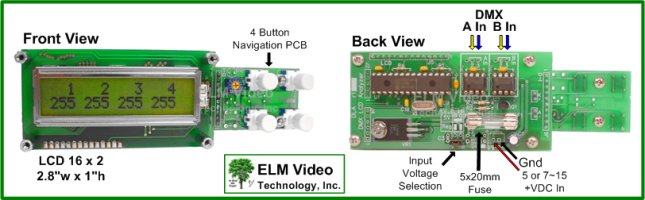

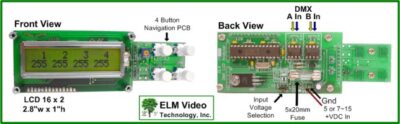

  • Drill Template and Wiring Diagram
  • (2) 120 ohm Terminating Resistors
  • Clear Bezel (Enclosure LCD Cover)


DMX Analyzer PCB

  • $179.00


  • 5 or more $169.00
