For Install and similar functionality examples, see the DXT-PCB Product.

OPTICAL vs. NON-OPTICAL

  • POWER INPUT: +5VDC regulated
  • POWER USAGE: apx .45 watts (5VDC, 80mA) with 32 device load
  • DATA TYPE: DMX512 (250Khz)
  • DATA INPUT: DMX512 - Pin 1 - (Shield) Not connected, Pin 2 Data - , Pin 3 Data +
  • ISOLATION: Standard electronic isolation
  • DATA OUTPUT: DMX512 output - Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +
  • RDM: No
  • UL Listings: PCB pre populated
  • DIMENSIONS: .9" x .875" x 1.2"

  • 5V Power Supply (will power up to 10 modules)



The DBXF-XLR Module is a daisy chainable DMX 512 Buffer/Driver Output XLR Mounted Module. Add or replace any XLR output connector to an existing or new product and drive up to 32 DMX devices. Or create a splitter by internally daisy chaining the DMX data output from a DOXM-XLR Module (see listing) or from an internal DMX source to provide multiple DMX outputs. Add multiple DBXF-XLR modules to create as many outputs as needed. Designed to mount into an (existing) XLR hole size of .93".

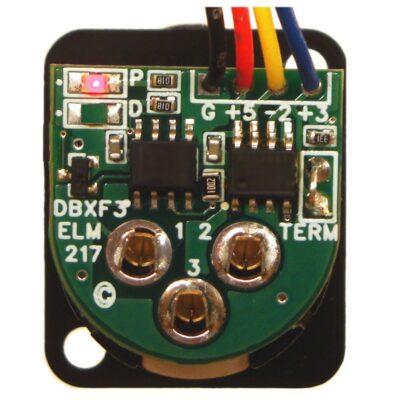

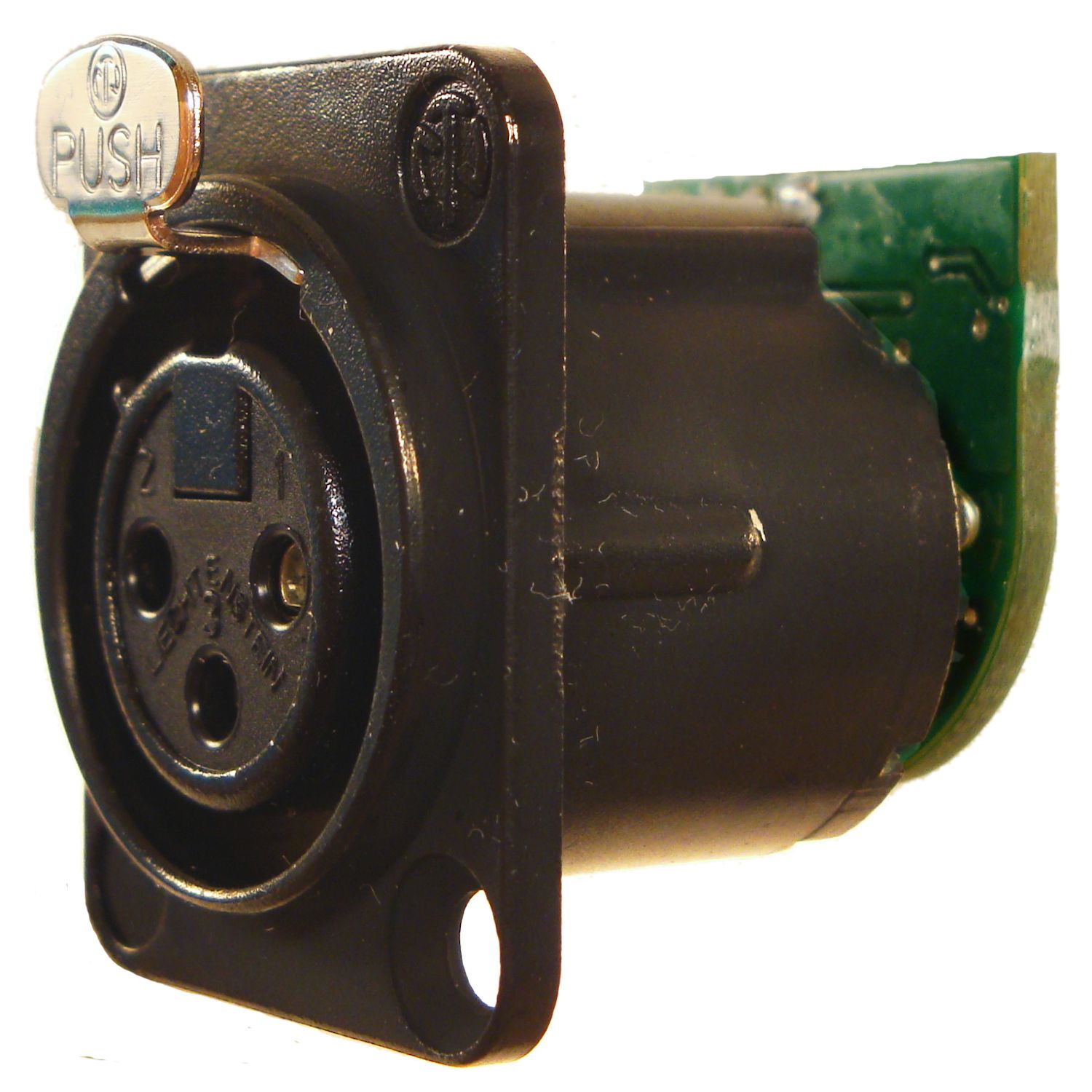

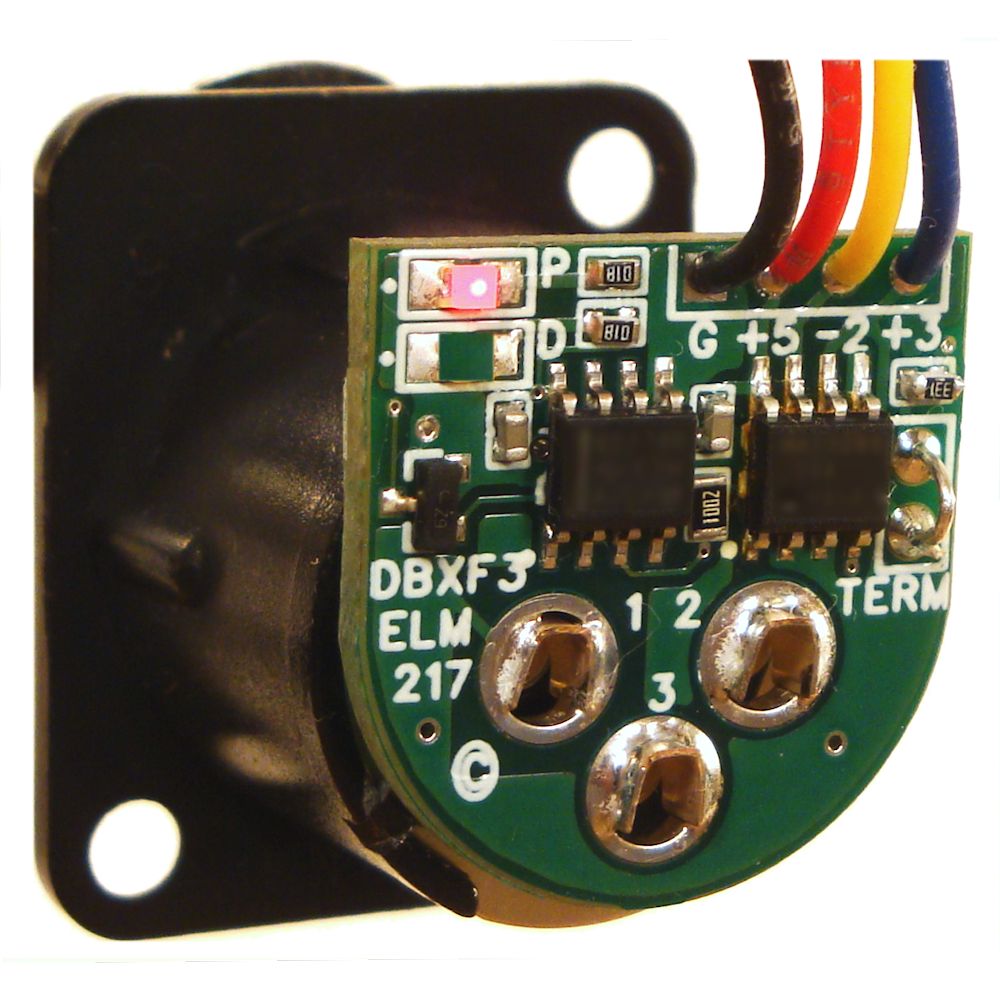

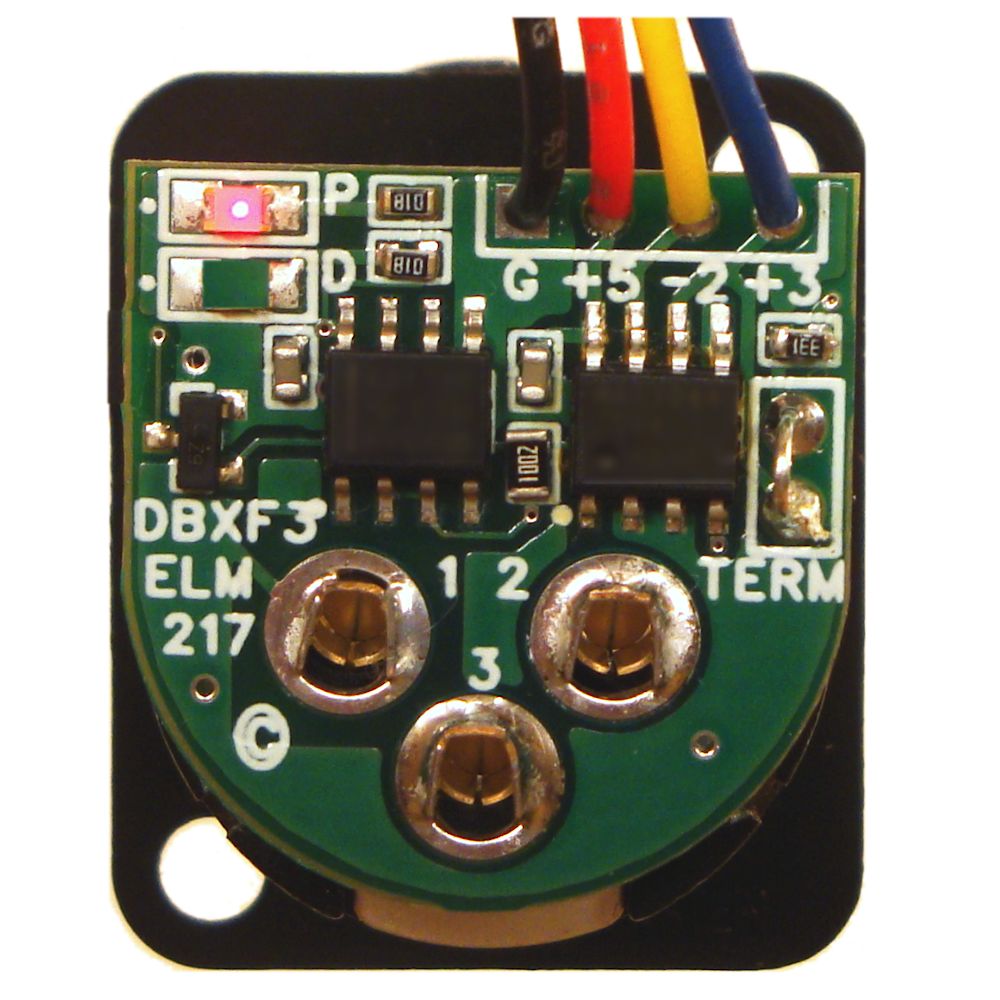

The DBXF-XLR features a red power input LED indicator and 5" wire leads. Requires a +5V regulated power source. Ships as shown fully assembled with XLR connector, equipped with 3 pin, optional 5 pin XLR.


DMX Output Buffer Driver XLR Mounted Module

  • $42.00


  • 5 or more $40.00
  • 10 or more $38.00
  • 50 or more $36.00

Available Options
