• DMX CONTROL WARNING: NEVER use DMX data devices where human safety must be maintained.
  • NEVER use DMX data devices for pyrotechnics or similar controls.
  • Brand: ELM Video Technology
  • Manufacturer: ELM Video Technology
  • Model: DTR-PCB
  • Description: DMX Tester / Analyzer
  • Non-Volatile Memory Writes: Minimum 100K, Typical 1M
  • Non-Volatile Memory Retention: Minimum 40 Yrs, Typical 100 Yrs

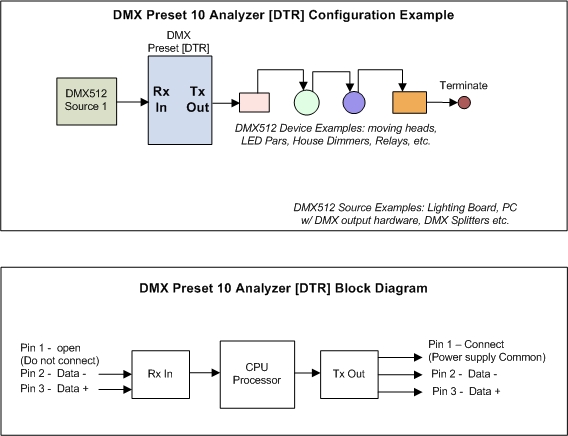

  • Data Output: DMX512 output 250 kHz, [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +
  • RDM: No
  • Weight: apx 3oz
  • External Power Input +5VDC or +7~9VDC
  • Power Connector Optional: 5.5 x 2.1 x 9.5 center positive connector
  •  Internal FUSE: 500mA 5x20 mm
  • Size: 3.35" W x 2.75" (4.9" with (4) Btn PCB attached) H x 1.62"
  • (4) Button PCB Dimensions: 1.65" W x 1.14" H x .94"
  • POWER: Apx 132mA Rx and Tx Active,
  •         Back light=0,
  •         140mA back light=25%,
  •         161mA back light=50%,
  •         170mA back light=75%,
  •         173mA back light=100%



  • Screw terminals
  • 5VDC or 12VDC input options
  • 5V or 12V Power Supply

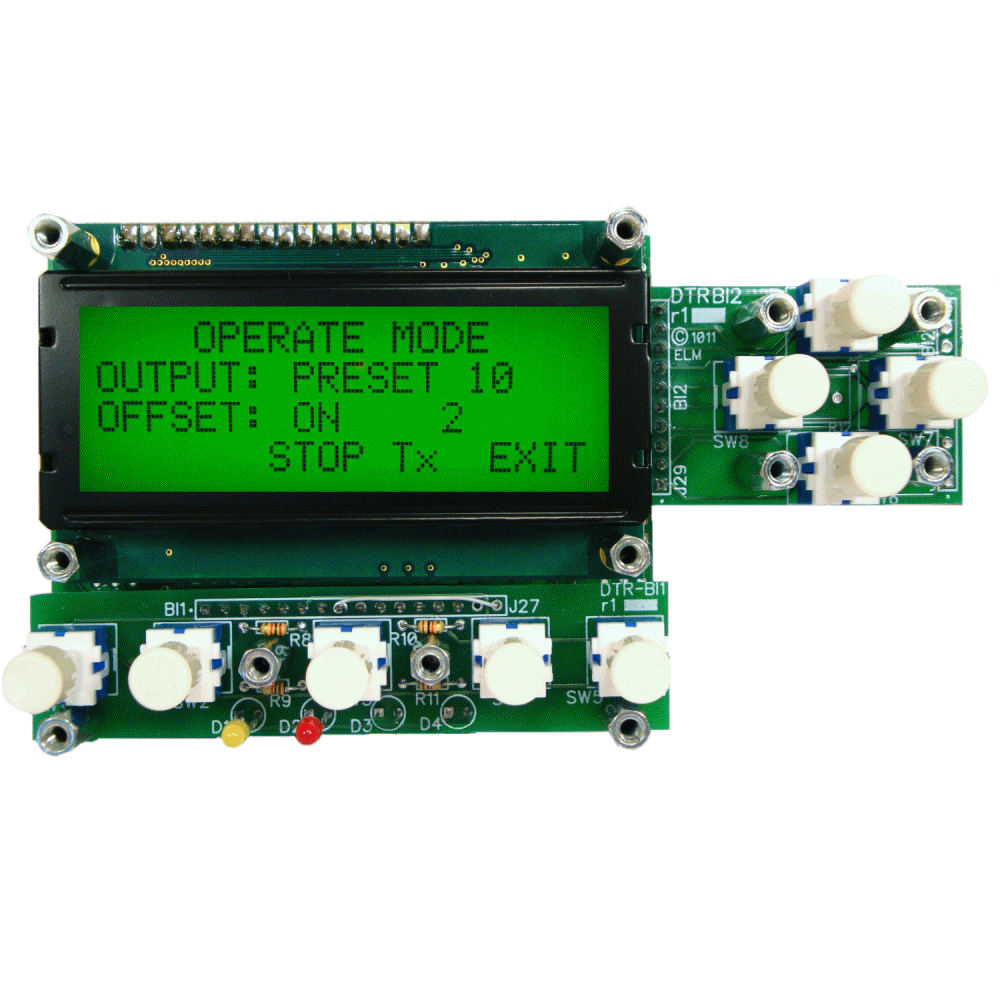

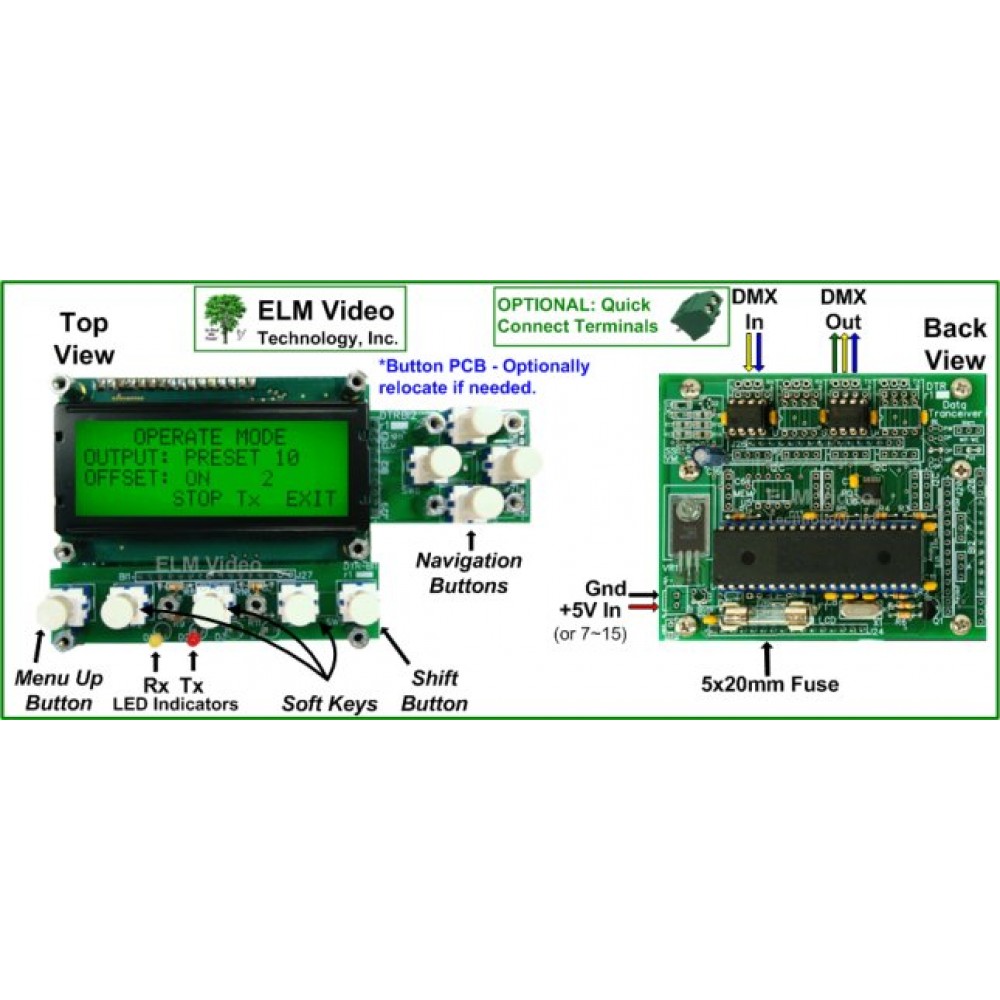

The DTR-PCB is a DMX 512 tester data send / receive PCB with 10 store and recall preset scene snapshot features.  See the DTR-HH page or users guide for more information.

FEATURES INCLUDE:

  • 10 Recordable and Recall Preset Scene Snapshots
  • Customizable PCB
  • Decimal, Hexadecimal, and Percentage Display Options
  • Statistics Display (packet size, start code, and rate or (frequency))
  • Editable Packet Size and Start Code
  • Programmable Channel Offset
  • Easy Editing of Stored Scene Snapshots
  • 20x4 Line LCD (Liquid Crystal Display)
  • Programmable Backlight and Contrast Adjustments
  • 5V or 7~15VDC Input Range

DTR PCB INCLUDES:

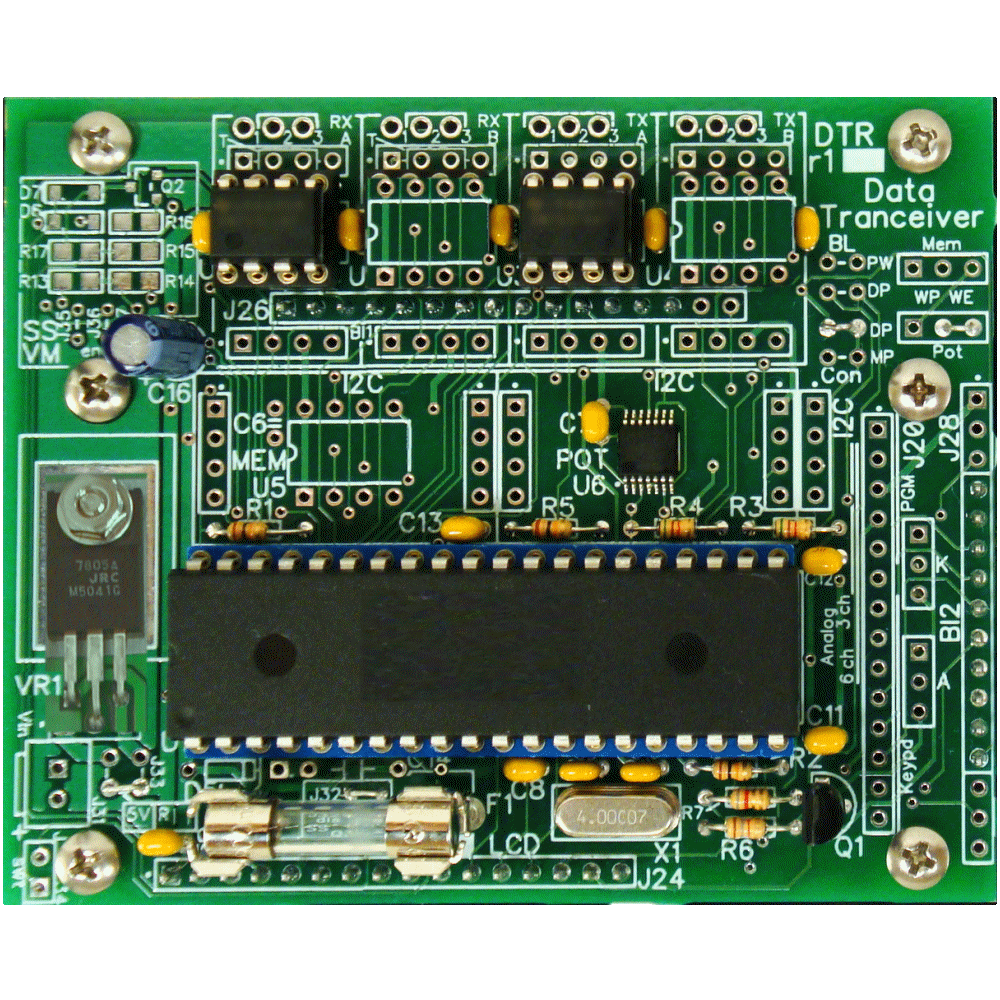

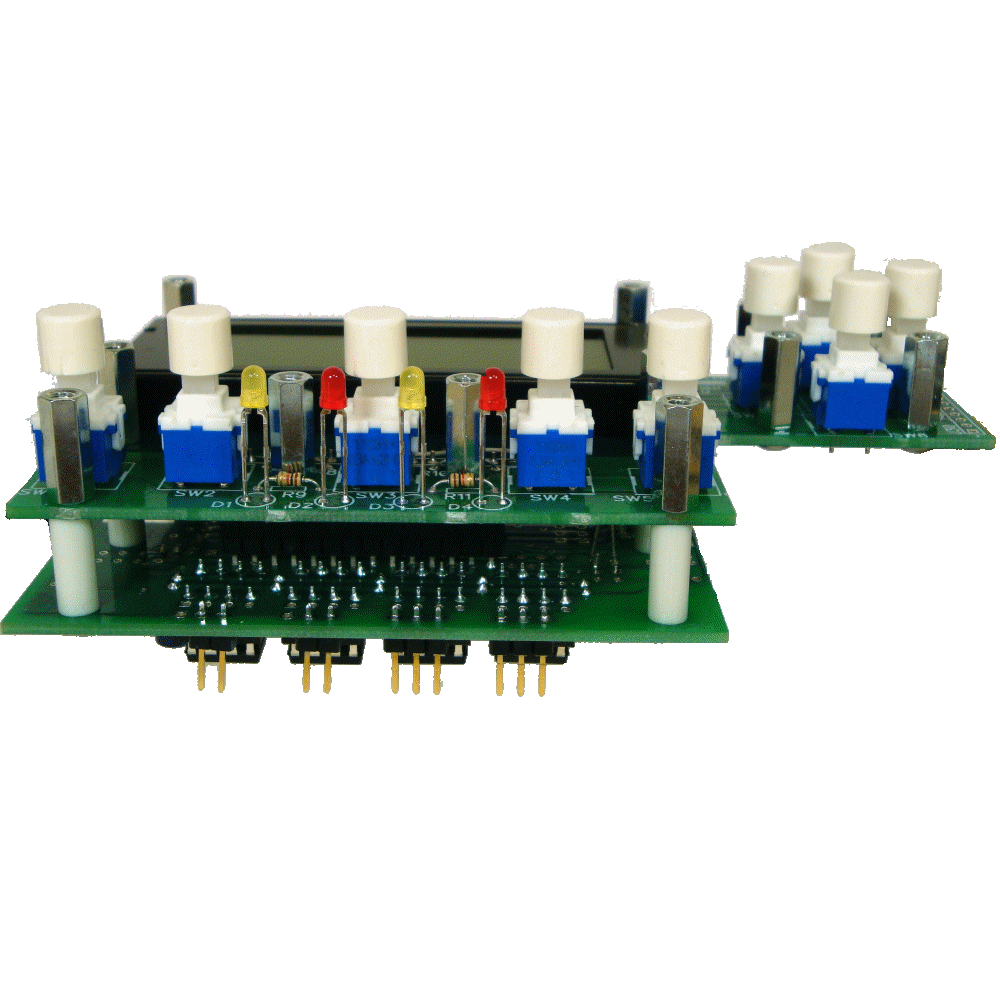

  • Assembled DTR-PCB (Printed Circuit Board) with .5" standoffs and screws
  • Drill Template and Wiring Diagram
  • (1) 120 ohm Terminating Resistor
  • Clear Bezel (large window enclosure LCD cover)
