• DMX CONTROL WARNING: NEVER use DMX data devices where human safety must be maintained.
  • NEVER use DMX data devices for pyrotechnics or similar controls.
  • Manufacturer: ELM Video Technology
  • Brand: ELM Video Technology
  • Model/MPN (base): DX10V-DIN
  • Name: DMX 0 to 10 Volt Analog Converter Switch Relay Driver
  • UL Listings: Power supply, PCB pre populated
  • 20 Terminal Dimensions:   2.75" Height x 3.9" Width x 4.4" Depth
  • 32 Terminal Dimensions:   2.75" Height x 5.9" Width x 4.4" Depth
  • Condition: New
  • CHASSIS: ABS Plastic
  • POWER INPUT: 12VDC
  • Internal Fuse: SMT 1A
  • Power Input: +12VDC apx 400mA (values apx, some circuits may vary)
  •     4 Channel:   no load:64mA   full load 145mA
  •     8 Channel:   no load 70mA   full load 230mA
  •     12 Channel: no load 76mA   full load 316mA
  •     16 Channel: no load 82mA   full load 402mA
  •     24 Channel: no load 94mA   full load 574mA
  • Voltage Output: 0~10VDC, (500 ohm minimum load)
  • Source Output Current: 20mA Max each
  • Sink Output Current: 10mA Max each
  • Refresh Rate Per Second: (Version 8)  8 Ch's = 1502, 16 Ch's = 739, 24 Ch's = 506 (amount of times per second the outputs are updated)
  • DATA TYPE: DMX (250Khz)
  • DATA INPUT: DMX - 5 (or 3) pin male XLR, Pin 1 - (Shield) Not connected, Pin 2 Data - , Pin 3Data +
  • DATA OUTPUT: DMX outputs - 5 (or 3) pin female XLR's, Pin 1 - Power supply common, Pin 2Data -, Pin 3 Data +
  • RDM: YES E1.20 Compliant [Software V8.20+]
  • Weight: apx 1 lb shipping weight



  • Equipped with 8 outputs, optional 16 outputs - Note- for the 16 output version all 0-10v outputs and the power supply common are shared
  • Upgrade to a 32 terminal DIN box for additional outputs (contact us with your project needs)
  • Enclosure can be wall mounted or clips directly to a 35mm Rail
  • DIN Rail 35mm x 8"


** Now RDM E1.20 Compliant. Remotely setup and modify changes with an RDM Controller.

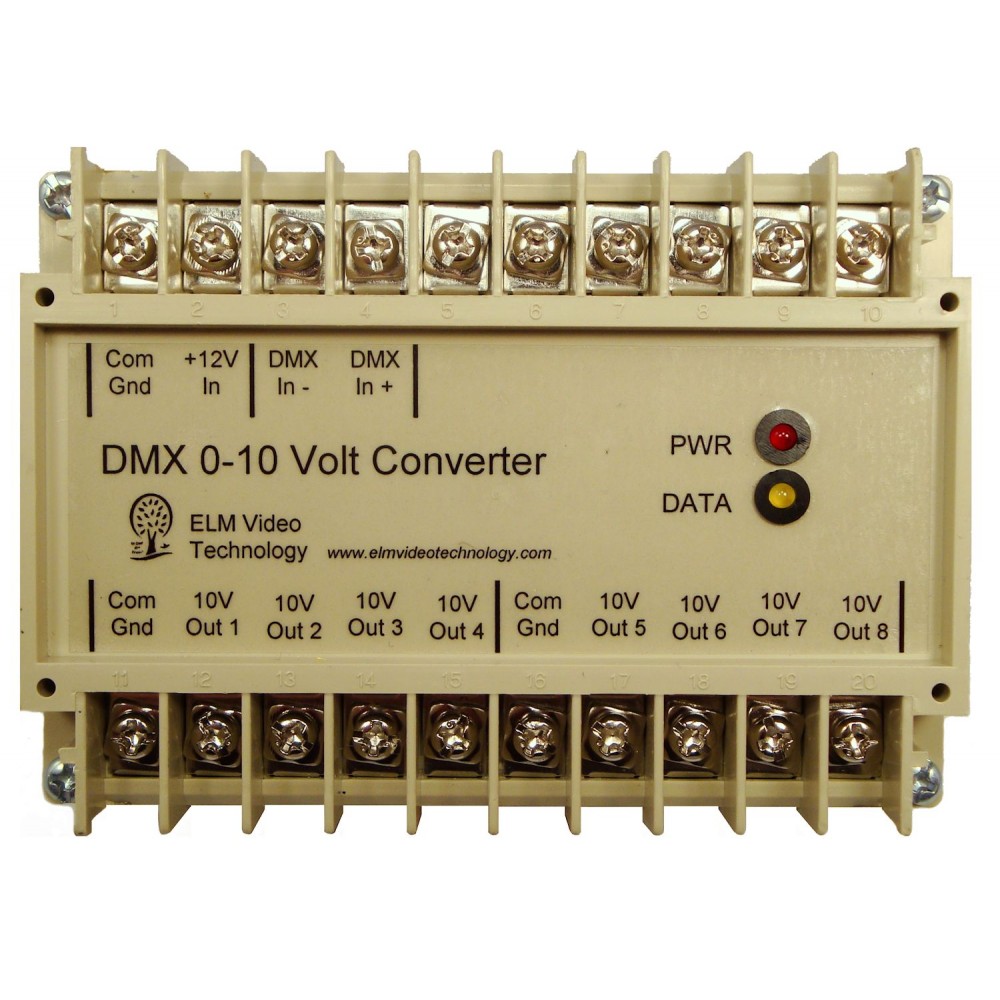

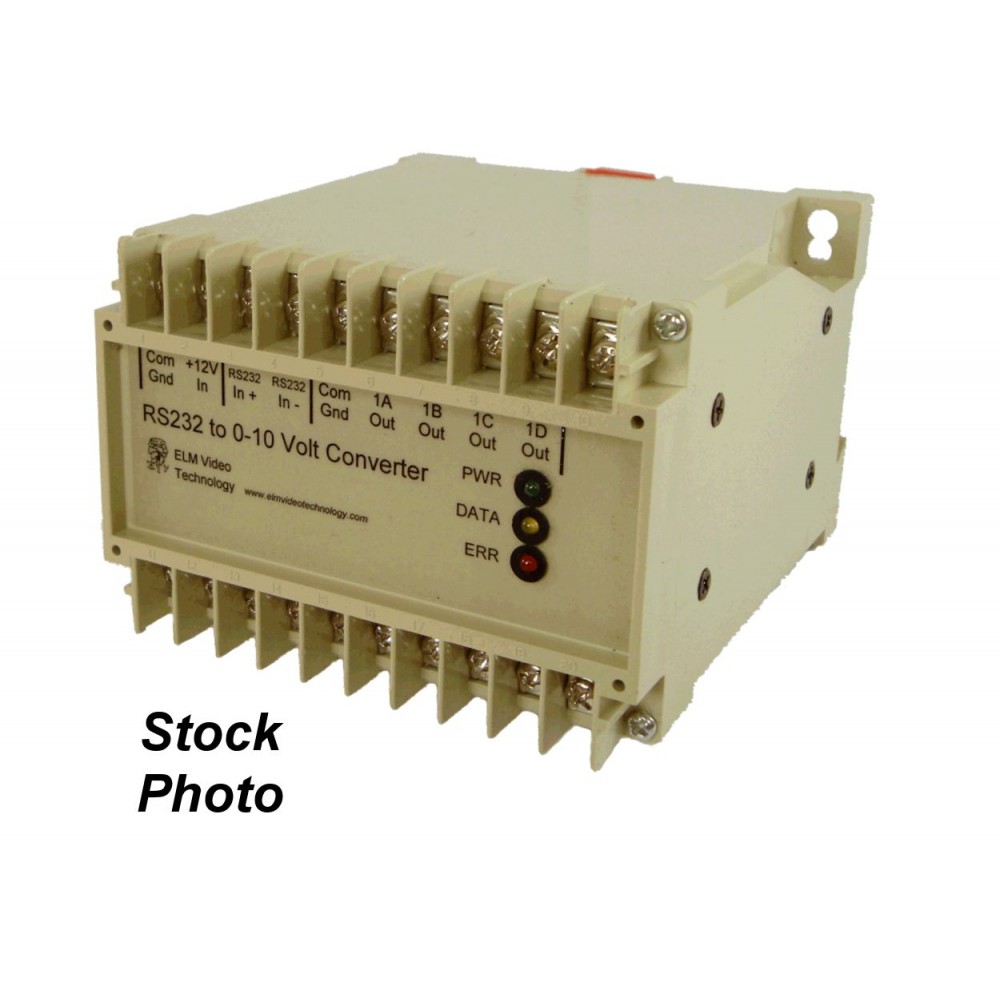

[Limited availability see DX10V-WM]  The DX10V-DIN converts a DMX-512 input to a variable 0 to 10 volt analog output in a 24 or 32 screw terminal DIN rail/wall mountable enclosure. Control 0-10 volt LED drivers or dimmers, for example, from a DMX lighting board or DMX controller. Also has a 'switch' option for controlling solid state relay's (SSR). Each output can source up to 20mA and sink up to 10mA. Each output is assigned to a consecutive DMX channel and will vary from 0 to 10 volts in respect to the corresponding DMX channels' level. Standard unit has 8 channels, upgrade to 16 channels. Includes. See the DX10V 0-10 volt full description category page for more information. Note: If custom output voltages are required, most can be factory preset, for example 0-5 volts, 0-20 volts, 0-24 volts etc-contact us for custom voltages.

Most of ELM Video Technology's PCB's can be mounted in the enclosure and depending on the PCBs / functions needed.  Any combination of DMX splitters, DMX mergers, DMX 0-10V converters, DMX relay controls, RS232 to DMX converters can be installed in this enclosure and custom wired. The 20 terminal box will hold 1 to 6 PCB's, and the 32 terminal box will hold up to 8 PCB's. Mounts on a 35mm rail or wall mounts. Price includes PCBs mounted and ready to use. Unsure if your design needs will fit, contact Sales for more information.

Includes +12VDC external power supply, face plate screws, and label. Din rail sold separately.
