DSI-4 USERS MANUAL and TECHNICAL SPECS (similar functionality)

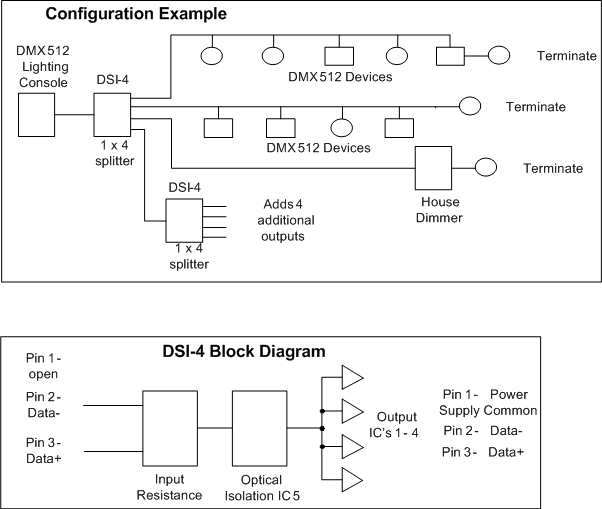

DSI-4 Configuration Example & Block Diagram (similar functionality)
- Manufacturer: ELM Video Technology
- Name: DMX Splitter / Booster / Amp
- Description: Creates 5 DMX outputs from a single input from any DMX generating device
- MPN: DS4DIN-1x4
- Model: DS4D
- UL Listings: Power Supply, PCB pre populated
- DATA TYPE: DMX512 (250Khz)
- DATA INPUT STANDARD: DMX512 - 5 (or 3) pin male XLR, [Pin 1 - (Shield) Not connected, Pin 2 Data - , Pin 3 Data +]
- DATA INPUT FULL ISOLATED: DMX512 - 5 (or 3) pin male XLR, [Pin 1 - (Shield), Pin 2 Data - , Pin 3 Data +]

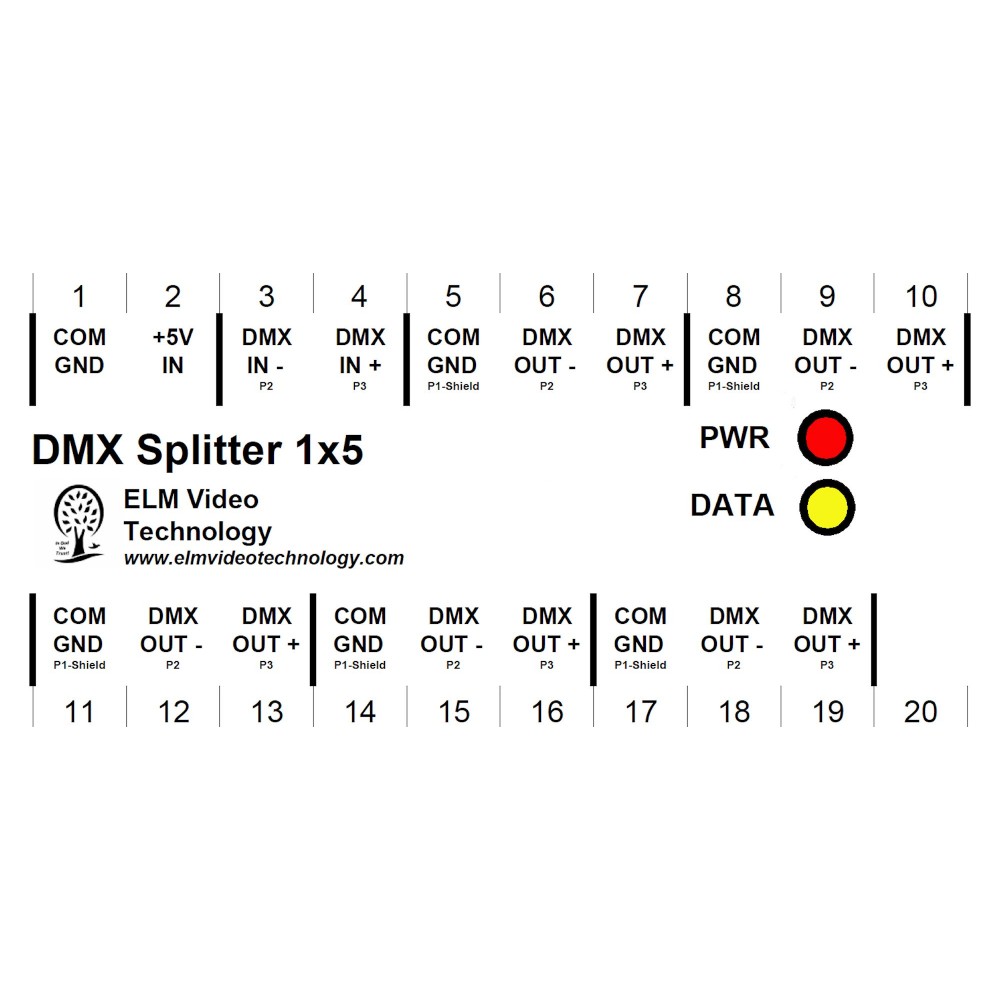

- DATA OUTPUT: 5 separate DMX512 outputs - 5 (or 3) pin female XLR's, [Pin 1 - Power supply common, Pin 2 Data -, Pin 3 Data +]
- RDM: No
- 20 Terminal Dimensions: 2.75" Height x 3.9" Width x 4.43" Depth
- 32 Terminal Dimensions: 2.75" Height x 5.9" Width x 4.4" Depth
- Weight: 1 pounds
- Power Consumption: Apx 410mA with 5 outputs sourcing 32 loads each
- Internal PCB FUSE: 500mA
- External Power Supply: +5VDC wall style
- Voltage Input: 100 ~ 132 (or 240) VAC
- Current Output (Min): 1 Amps
- Power (Min): 5 Watts
- Chipset upgrade - The chipset upgrade has TVS IC's installed on the outputs offering TVS isolation on each output of the splitter.
- DIN Rail 35mm x 8"
- DMX Input: Standard Input offers electronic input isolation. Full Isolated Input (OPTIONAL) implements the DS5F PCB circuit providing full input isolation including ground/shield isolation on the DMX input
DMX 1x4 is a 1 in 4 out splitter in a DIN rail/wall mount enclosure with screw terminals. Takes the output of a any DMX device (lighting console e.g.) and actively splits the signal providing 4 separate DMX outputs. Optional Full Input Isolated input (See the options tab for more information). The DMX Outputs are electronically isolated from each other, each output can source up to 32 devices (DMX512 standard). Power supply included.
Note - The outputs are separately driven and electronically isolated, not "Transient Voltage Suppressed" isolated from each other unless the CHIPSET UPGRADE is selected.
- Chip sockets for easy replacement (high quality sockets milled with gold contacts)
- Engineered with quality parts and a reliable and simple design
- 'Active' LED illuminates indicating DMX signal is present, Power LED for 5VDC
DMX Splitter 1x4 DIN Rail Wall Mount
- Brand: ELM Video Technology, Inc.
- Product Code: DS4D-DIN
- Availability: Usually Ships in 1-2 Days
